Igloo_S
9139
Indoor / Ceiling Lights, Catenary and Systems
Systems - Ceiling Downlights | 220-240 V
1 stripLED 16 W DC - 20 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 112.8° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1316 lm |
| Finishes | Polished aluminium |
| Installation position | Wall lights, Ceiling |
| Control | DALI |
| Efficiency | 65.8 lm/W |
| Source Type | stripLED |

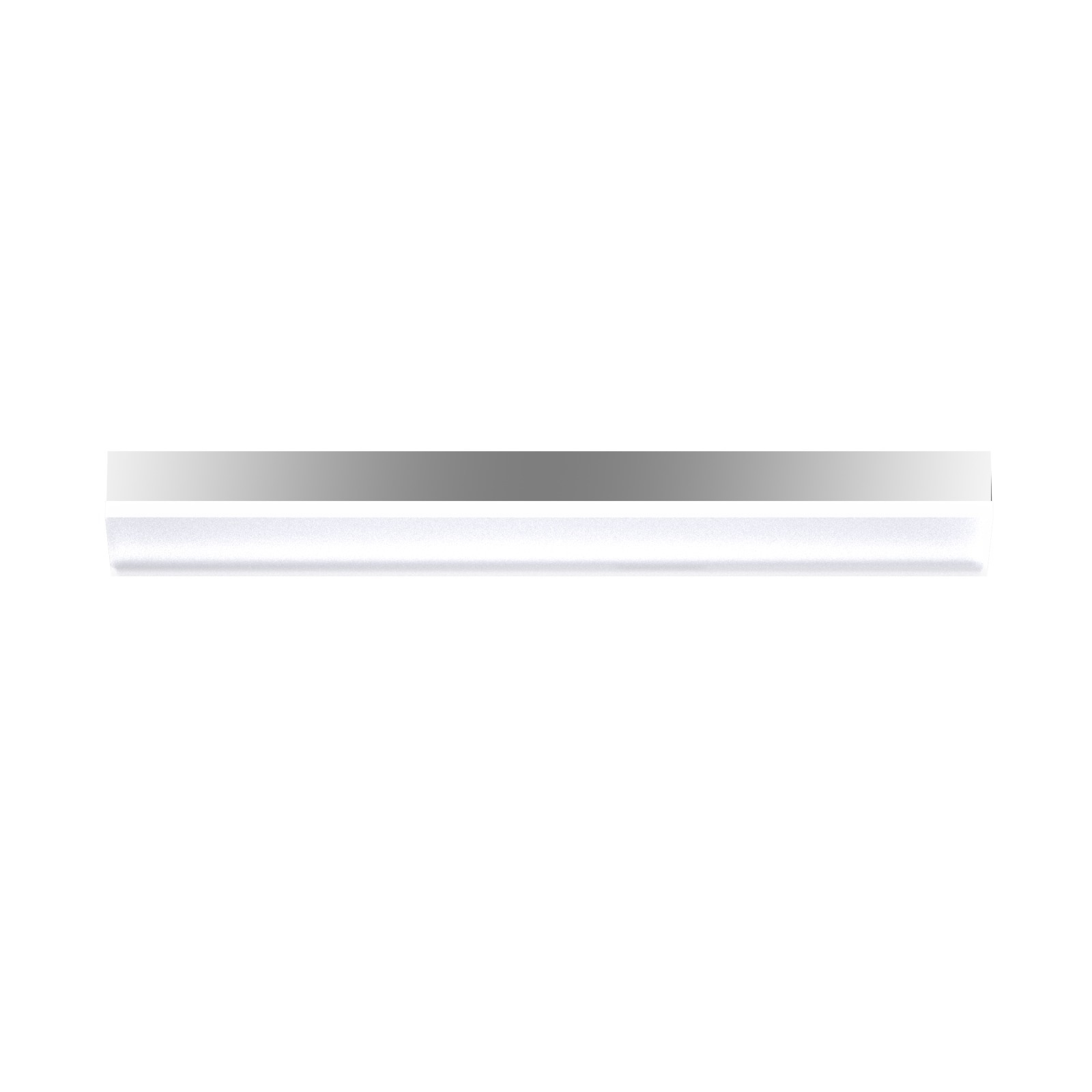

Technical description
Single emission systems, systems or ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 96 stripled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2306 lm, with a 144.1 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a translucent finish; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 1.355 kg.
The total absorbed power is 20 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
