Ilamt

C00245NKNFL

New

Indoor / Wall Mounted Lights, Step lights

Wall Lights

1 x powerLED 2 W DC 630 mA

IP
IP44
Optic
Flood
Degrees
24.2°
CCT
4000 K
CRI
90
Delivered lumens
153 lm
Finishes
Nickel
Installation position
Wall lights, Ceiling
Control
Efficiency
76.5 lm/W
Source Type
powerLED

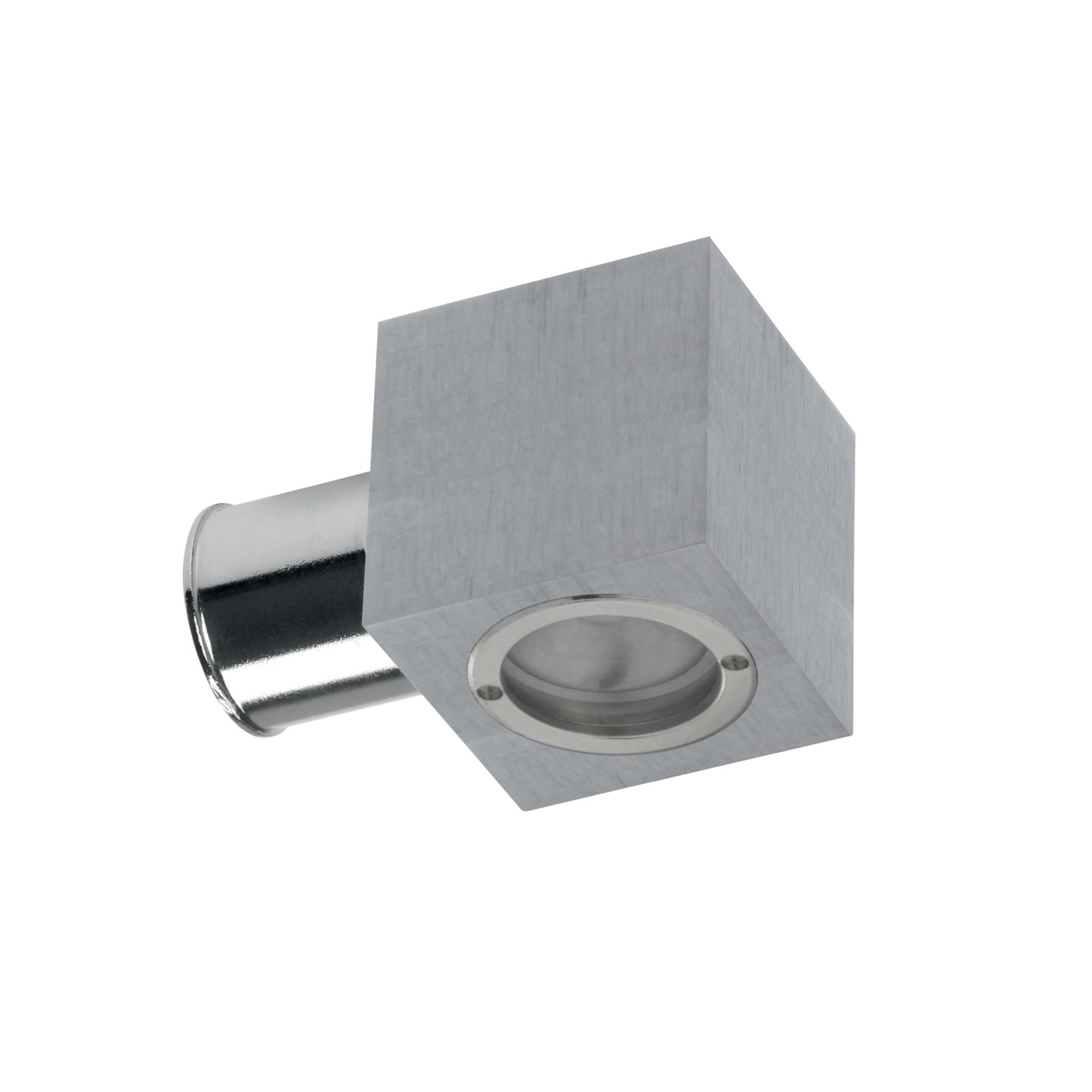

Single emission wall lights for indoor application. The natural white LED light source with a flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 237 lm, with a 118.5 lm/W nominal luminous efficacy.

The device body is made of ot58 brass and features a nickel finish, processed by means of galvanic nickel plating + brushing. The ingress protection degree is IP44; the total weight is of 0.191 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 2 W. The power supply cable is included and features a 0.12 m length.

The device features protection class III and can be wall lights or ceiling-mounted, with a 24 mm diameter hole (in plasterboard) with an outer casing, code 84349(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99376

Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Slim - On/Off Driver - 630mA 20V 6-12W  |   On/Off Driver 198~264V AC
.zip

Code 99105

Leon - On/Off Driver | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Leon - On/Off Driver |   On/Off Driver 198~264V AC
.zip

Code 89147

Slim - On/Off Driver - 630mA 6.6V 2-4W | On/Off Driver 198~264V AC / 180~275V DC

FamilyOn/Off Driver
IPIP40
OperationCC
Slim - On/Off Driver - 630mA 6.6V 2-4W |   On/Off Driver 198~264V AC / 180~275V DC
.zip

You've seen 3 products out of 3

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
