Iota-C30_2
9864
New
Indoor / Catenary and Systems
Systems | 198-264 V
96 topLED 20 W DC - 22 W AC
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 180° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1423 lm |
| Finishes | Black |
| Installation position | Cable |
| Control | |
| Efficiency | 64.7 lm/W |
| Source Type | topLED |
Technical description

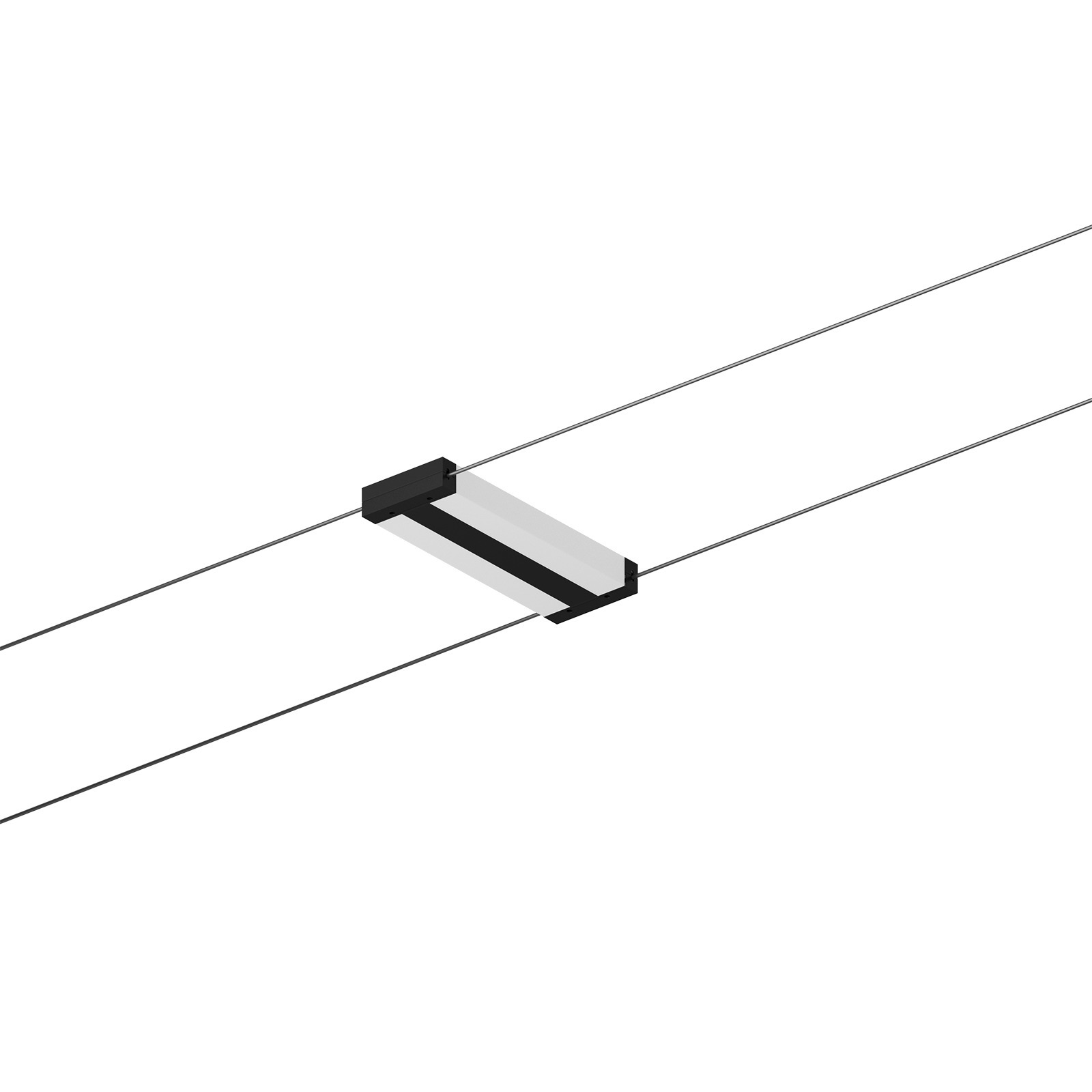

Double emission systems for indoor application. The warm white LED light source with a diffused light distribution is composed of 96 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1992 lm, with a 99.6 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.700 kg.
The total absorbed power is 22 W.
The device features protection class II and can be cable-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
2D/3D Drawings
