Lira_FL
9321
Outdoor / Floor lamps
Floor Lamp | 220-240 V
8 topLED 24 W DC - 29 W AC













IP | IP65 |
---|---|
IK | 10 |
Optic | Diffused |
Degrees | 103° |
CCT | 3000 K |
CRI | 80 |
Delivered lumens | 1402 lm |
Finishes | Black |
Installation position | Floor |
Control | |
Efficiency | 48.3 lm/W |
Source Type | topLED |
Technical description

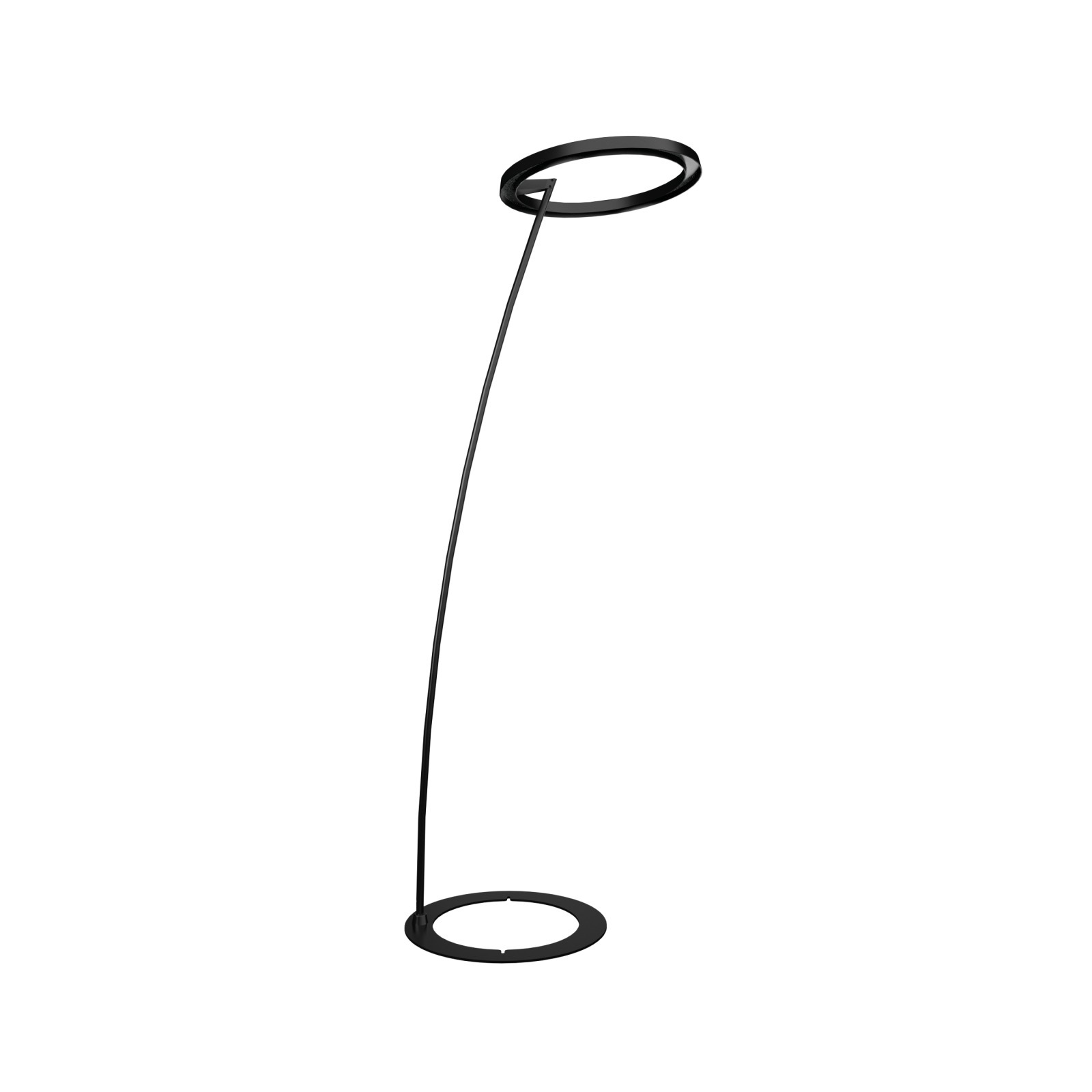

Single emission floor lamp for outdoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 3924 lm, with a 163.5 lm/W nominal luminous efficacy.
The device body is made of iron and features a black ral 9005 finish, processed by means of coating; the diffuser is made of pu; the mounting frame is made of iron, with a black ral 9005 finish, processed by means of coating. The ingress protection degree is IP65; the total weight is of 10.4 kg.
The total absorbed power is 29 W. The power supply cable is included and features a 5 m length.
The device features protection class II and can be floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
2D/3D Drawings
