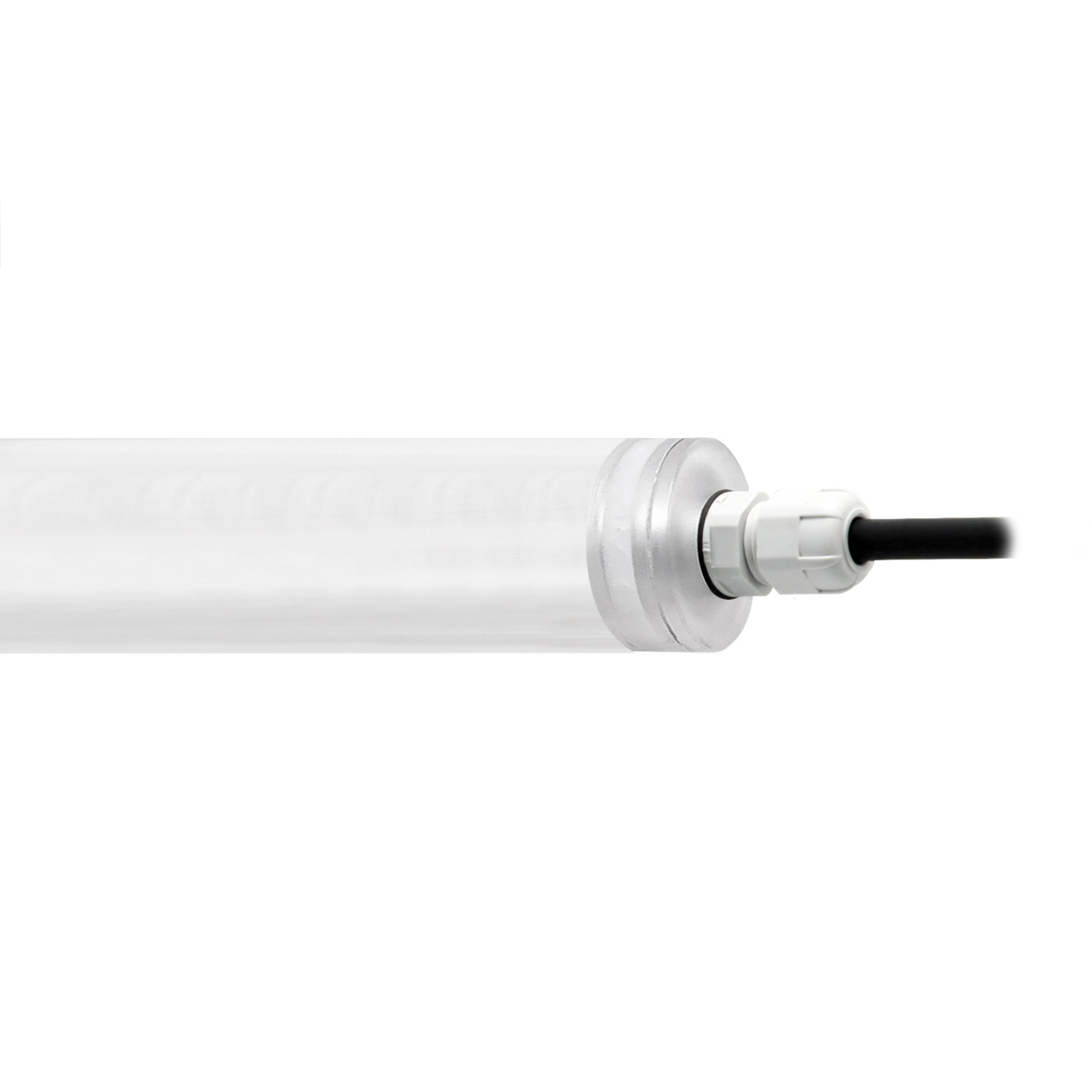

Maxi Tube IN&OUT
92448N30
Outdoor / Linear Lighting
Lines | 198-264 V
36 topLED 13 W DC - 14.5 W AC
| IP | IP67 |
|---|---|
| IK | 08 |
| Optic | Extra Wide Flood |
| Degrees | 93.4° |
| CCT | 4000 K |
| CRI | 92 |
| Delivered lumens | 1316 lm |
| Finishes | Embossed |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 90.8 lm/W |
| Source Type | topLED |
Technical description
Single emission lines for outdoor application. The natural white LED light source with a medium flood light distribution is composed of 36 topled LEDs with CCT of 4000 K and a CRI 92.
The device body is made of uv resistant polycarbonate and features a embossed finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.5 kg.
The total absorbed power is 14.5 W. The power supply cable is included and features a 1+1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
File BIM .rfa
2D/3D Drawings
Accessories
