Maxi Tube IN&OUT

92449W30

Outdoor / Linear Lighting

Lines | 90-264 V

84 topLED 20 W DC - 22 W AC

IP
IP67
IK
08
Optic
Diffused
Degrees
93.4°
CCT
3000 K
CRI
92
Delivered lumens
2045 lm
Finishes
Embossed
Installation position
Wall lights, Ceiling
Control
Efficiency
93.0 lm/W
Source Type
topLED

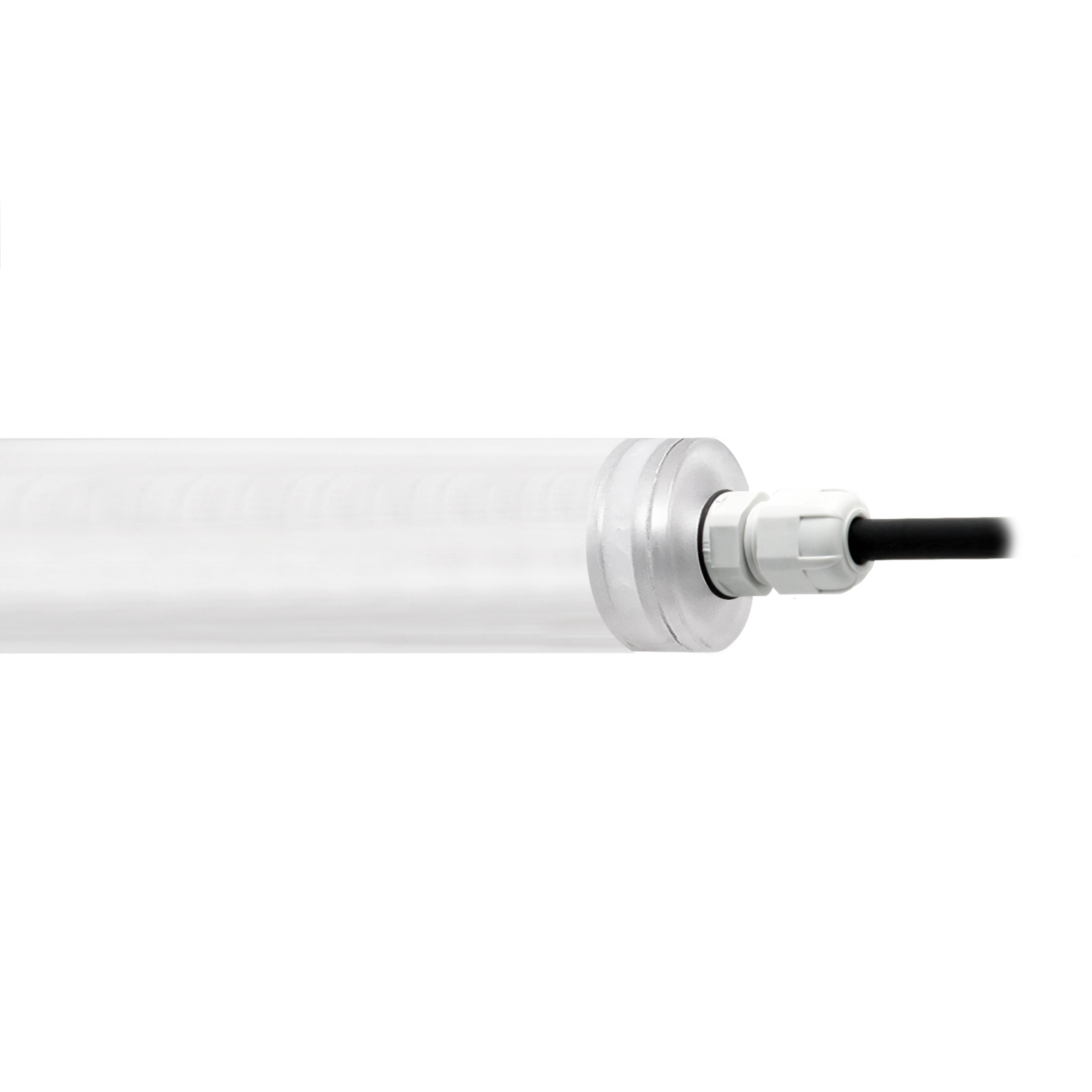

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 84 topled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 2318 lm, with a 115.9 lm/W nominal luminous efficacy.

The device body is made of uv resistant polycarbonate and features a embossed finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.8 kg.

The total absorbed power is 22 W. The power supply cable is included and features a 1+1 m length.

The device features protection class II and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

File BIM .rfa

2D/3D Drawings
