Metal_W
90333
Indoor / Ceiling Lights, Wall Mounted Lights
Wall Lights - Ceiling Downlights | 220-240 V
1 topLED 17 W DC - 20 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1338 lm |
| Finishes | Black |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 66.9 lm/W |
| Source Type | topLED |
Technical description

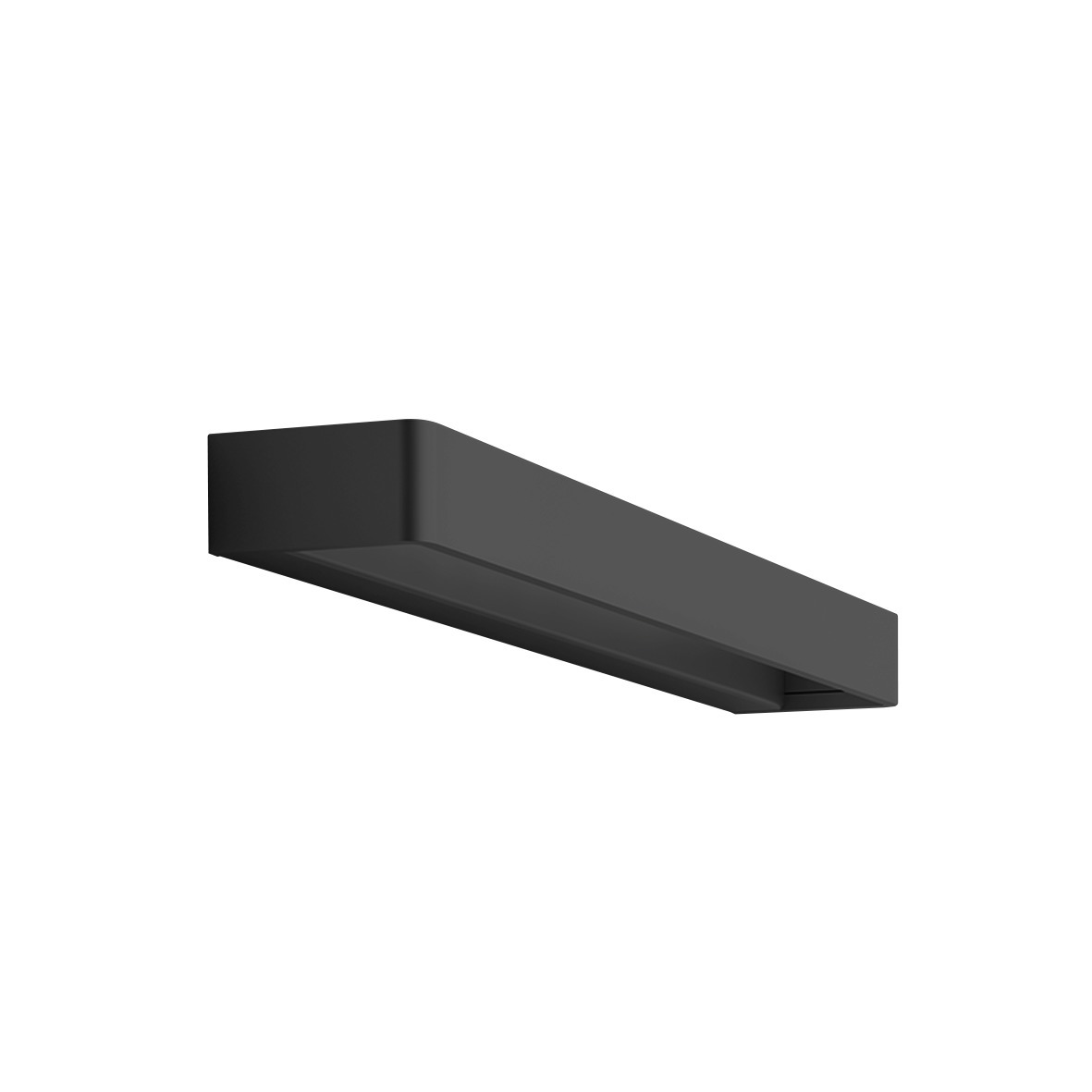

Double emission wall lights, ceiling downlights or ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 24 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2090 lm, with a 122.9 lm/W nominal luminous efficacy.
The diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of aluminium, with a black finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 1.160 kg.
The total absorbed power is 20 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
