Mille_W1 LED

7844

Indoor / Wall Mounted Lights

Wall Lights | 220-240 V

60 topLED 24 W DC - 28.4 W AC

IP
IP20
Optic
Diffused
Degrees
117°
CCT
3000 K
CRI
90
Delivered lumens
2275 lm
Finishes
White
Installation position
Wall lights
Control
Efficiency
80.1 lm/W
Source Type
topLED

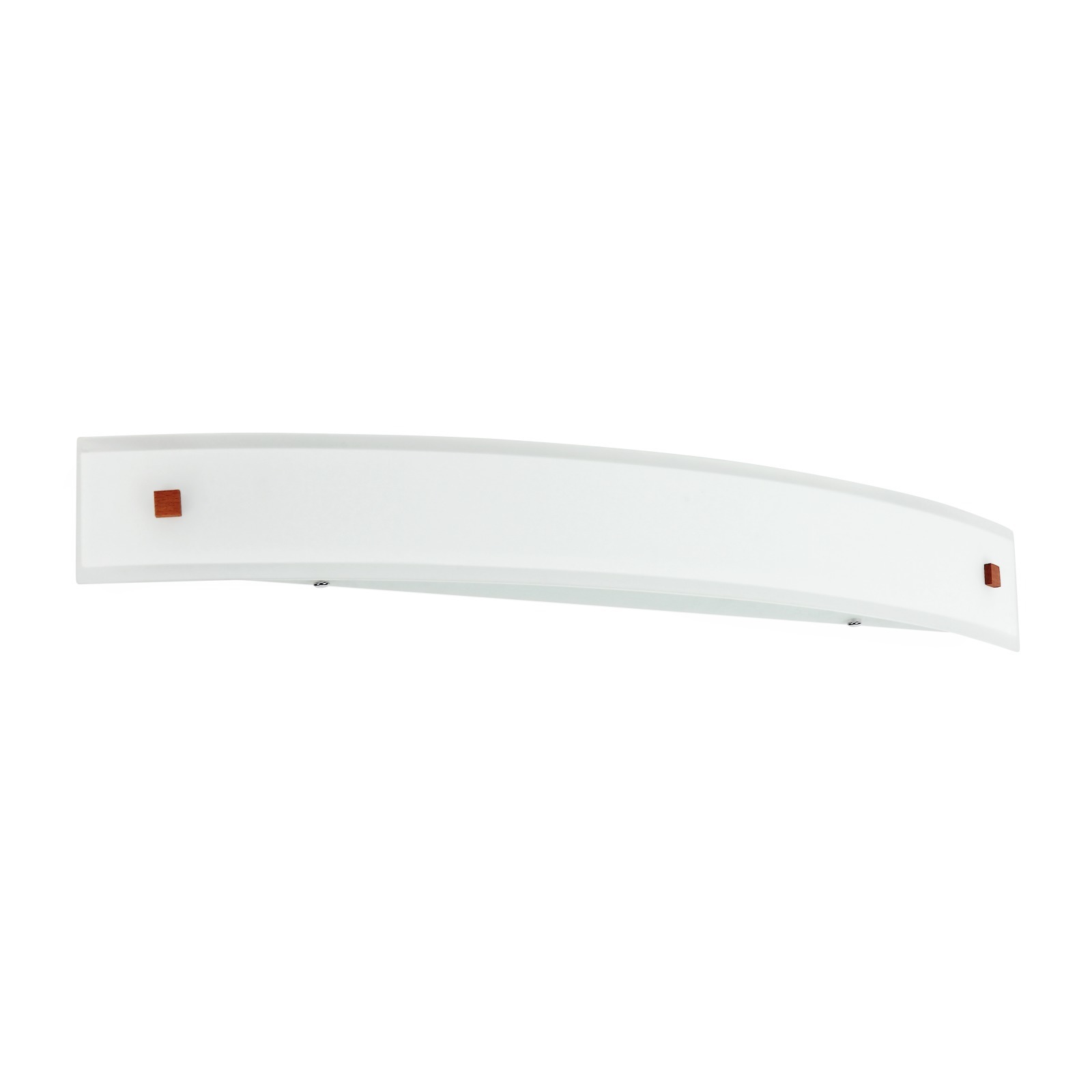

Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 60 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2929 lm, with a 122.0 lm/W nominal luminous efficacy.

The device body is made of iron and features a nickel finish, processed by means of electroplating The device body is made of wood and features a cherry wood finish; the diffuser is made of glass with a sandblasting treatment; the mounting frame is made of iron, with a white ral 9016 finish, processed by means of coating. The ingress protection degree is IP20; the total weight is of 2.166 kg.

The total absorbed power is 28.4 W.

The device features protection class I and can be wall lights-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
