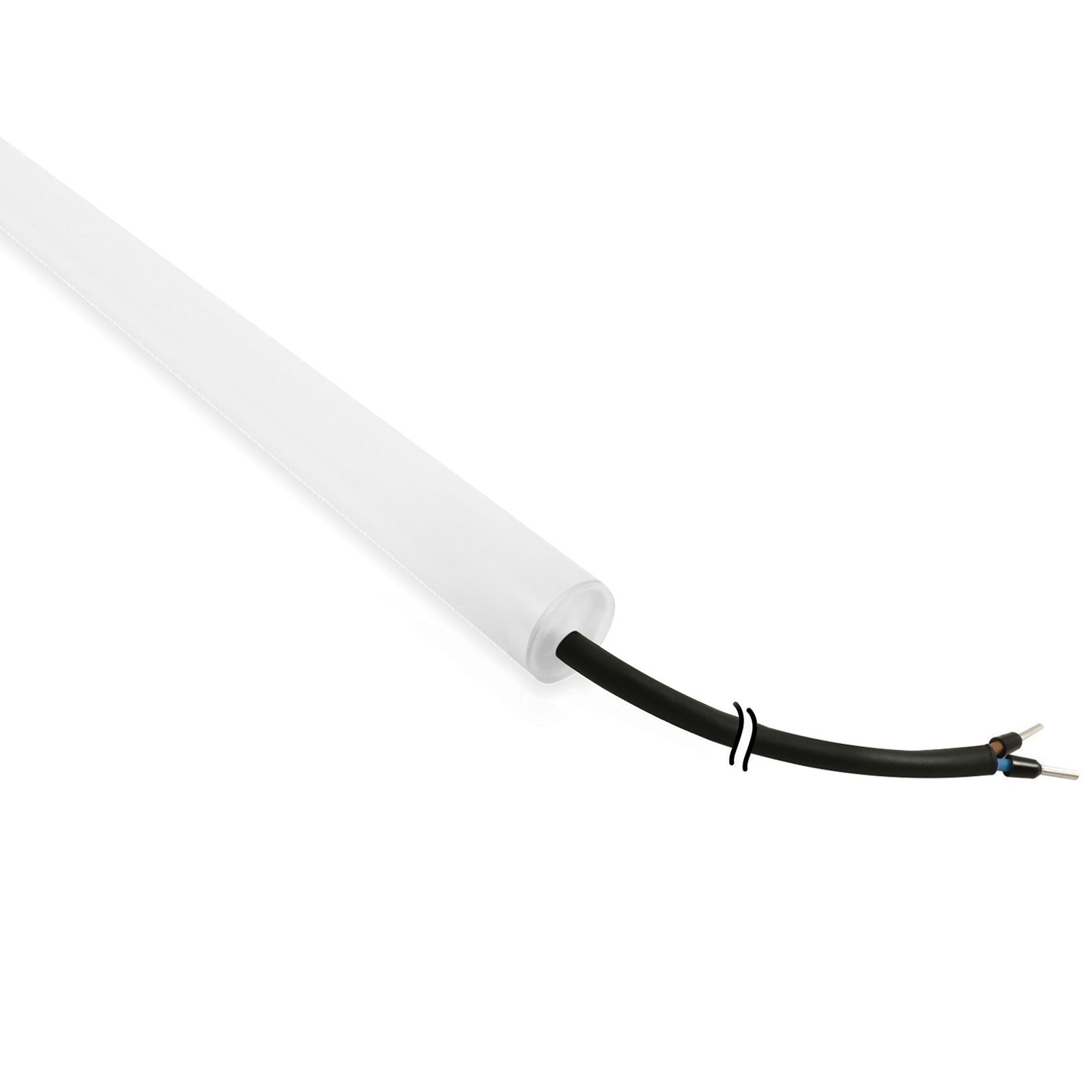

Mini Tube IN-OUT
92391W00
Outdoor / Linear Lighting
Lines | 198-264 V
120 topLED 16.5 W DC - 18 W AC
| IP | IP65 |
|---|---|
| IK | 08 |
| Optic | Diffused |
| Degrees | 116.4° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 2285 lm |
| Finishes | Opal |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 126.9 lm/W |
| Source Type | topLED |
Technical description
Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 120 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2883 lm, with a 174.7 lm/W nominal luminous efficacy.
The device body is made of uv resistant polycarbonate and features a opaline finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65; the total weight is of 0.35 kg.
The total absorbed power is 18 W. The power supply cable is included and features a 1+1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
