Mini Tube
92392N00
Outdoor / Linear Lighting
Lines | 198-264 V
20 topLED 4.5 W DC - 5.2 W AC












IP | IP65 |
---|---|
IK | 08 |
Optic | Diffused |
Degrees | 116.4° |
CCT | 4000 K |
CRI | 80 |
Delivered lumens | 486 lm |
Finishes | Opal |
Installation position | Wall lights, Ceiling |
Control | |
Efficiency | 93.5 lm/W |
Source Type | topLED |
Technical description
Single emission lines for outdoor application. The natural white LED light source with a diffused light distribution is composed of 20 topled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 612 lm, with a 136.0 lm/W nominal luminous efficacy.

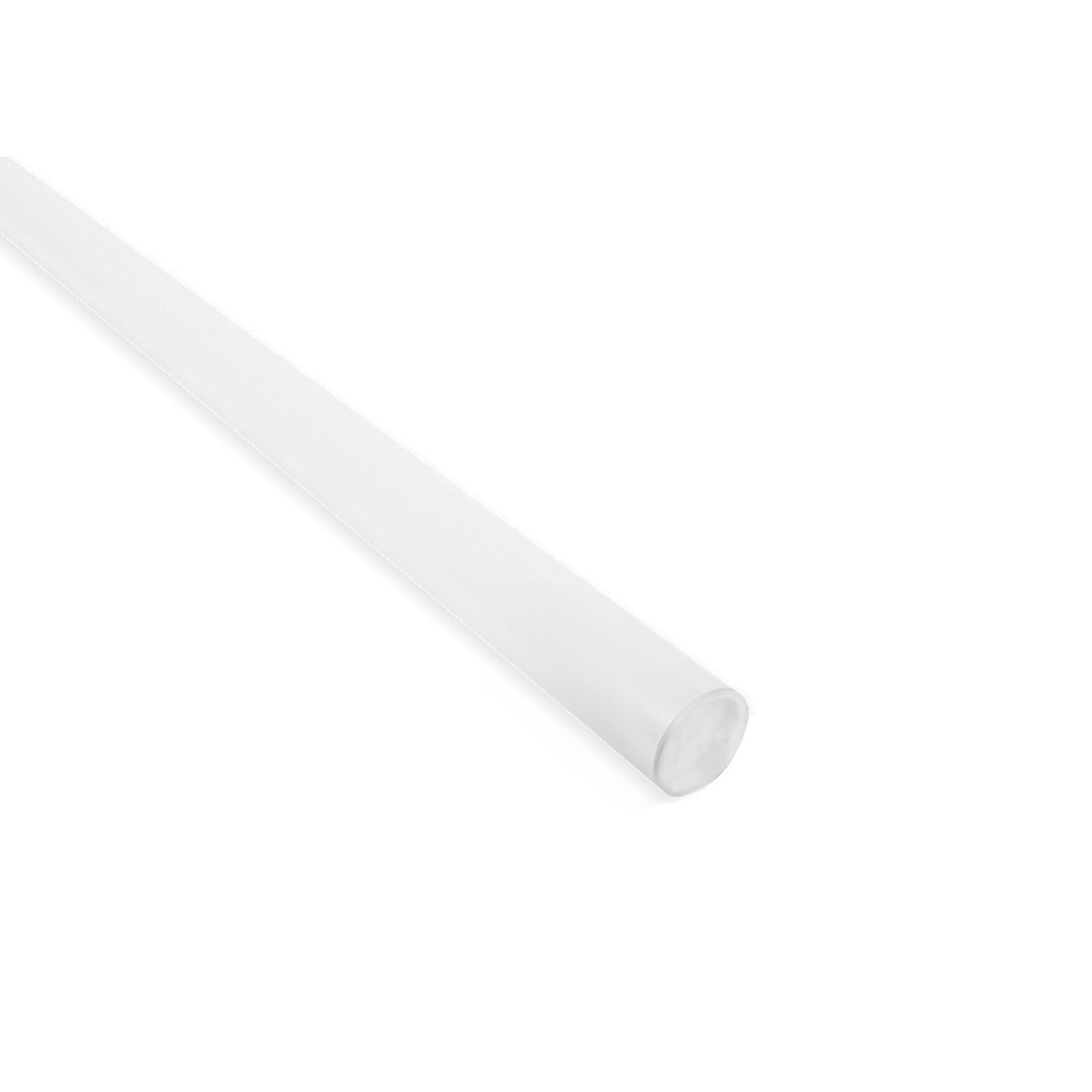

The device body is made of uv resistant polycarbonate and features a opaline finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65; the total weight is of 0.09 kg.
The total absorbed power is 5.2 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
