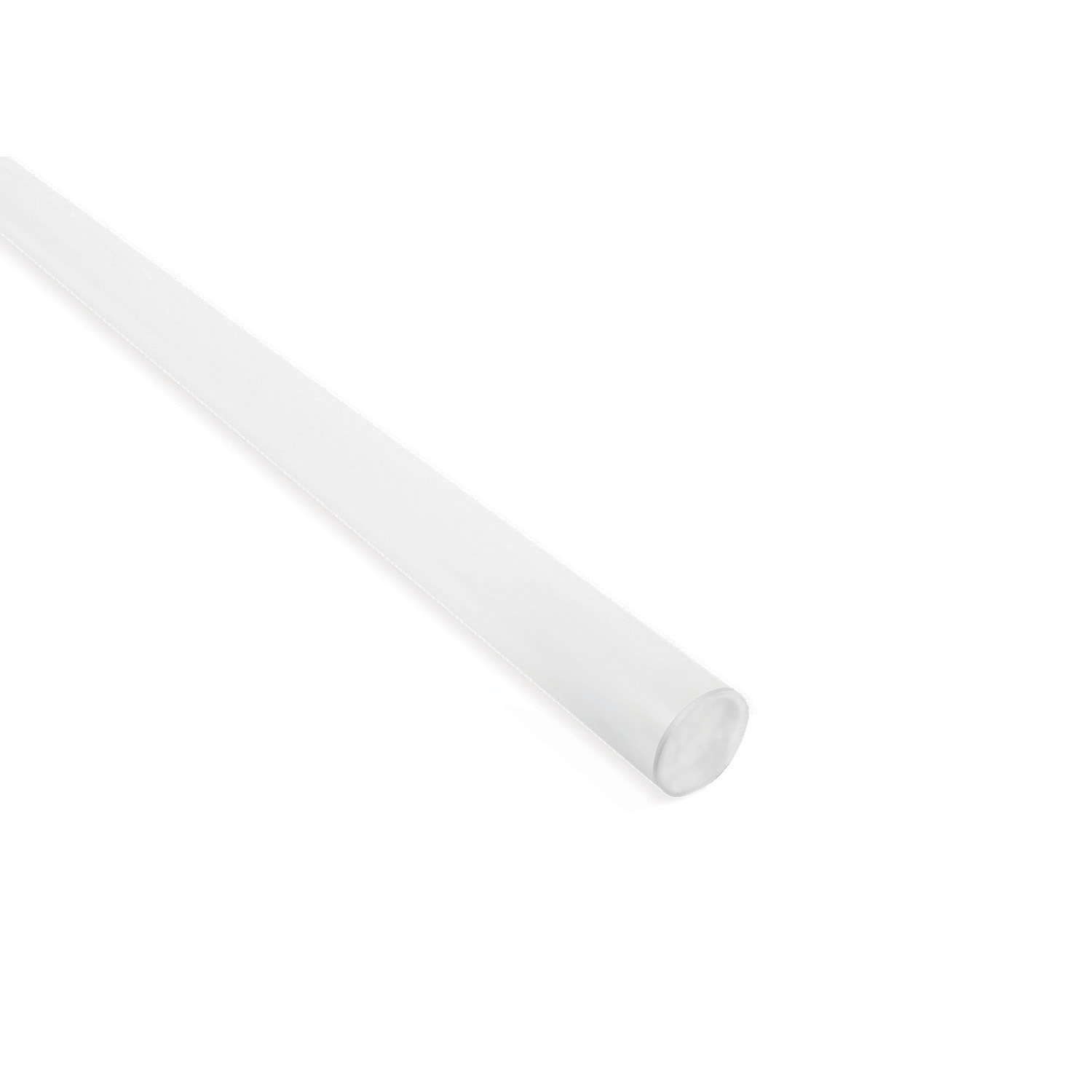

Mini Tube
92421P00
Outdoor / Linear Lighting
Lines | 198-264 V
60 topLED 9 W DC - 10.5 W AC












IP | IP65 |
---|---|
IK | 08 |
Optic | Diffused |
Degrees | 116.4° |
CCT | rosa |
CRI | 80 |
Delivered lumens | 584 lm |
Finishes | Opal |
Installation position | Wall lights, Ceiling |
Control | |
Efficiency | 55.6 lm/W |
Source Type | topLED |
Technical description
Single emission lines for outdoor application. The pink LED light source with a diffused light distribution is composed of 60 topled LEDs and a CRI 80; the source luminous flux is 740 lm, with a 82.2 lm/W nominal luminous efficacy.
The device body is made of uv resistant polycarbonate and features a opaline finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65; the total weight is of 0.16 kg.
The total absorbed power is 10.5 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
