Modoc_R
C00771WHTML
Indoor / Recessed Downlights
Downlights
1 x powerLEDs 2 W DC 630 mA













IP | IP20 |
---|---|
Optic | Medium Flood |
Degrees | 37.4° |
CCT | 3500 K |
CRI | 90 |
Optical compartment IP | IP65 |
Delivered lumens | 168 lm |
Finishes | White |
Installation position | Ceiling |
Control | |
Efficiency | 84.0 lm/W |
Source Type | powerLED |
Technical description

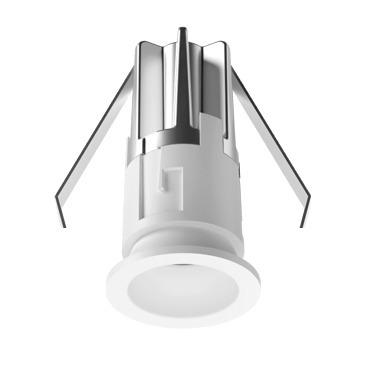

Single emission recessed downlights for indoor application. The brilliant white LED light source with a medium flood light distribution is composed of 1 powerled LEDs with CCT of 3500 K and a CRI 90; the source luminous flux is 240 lm, with a 120.0 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20; The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 2 W. The power supply cable is included and features a 0.3 m length.
The device features protection class III and can be ceiling-mounted, with a 24 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99376
Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |

Code 99105
Leon - On/Off Driver | On/Off Driver 198~264V AC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |

Code 89147
Slim - On/Off Driver - 630mA 6.6V 2-4W | On/Off Driver 198~264V AC / 180~275V DC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |
