Modoc_RF
C00696WHNML
Indoor / Recessed Downlights
Downlights
1 arrayLED 37 W DC 1100 mA
| IP | IP20 |
|---|---|
| Optic | Medium Flood |
| Degrees | 37.6° |
| CCT | 4000 K |
| CRI | 90 |
| Optical compartment IP | IP65 |
| Delivered lumens | 5251 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 141.9 lm/W |
| Source Type | arrayLED |

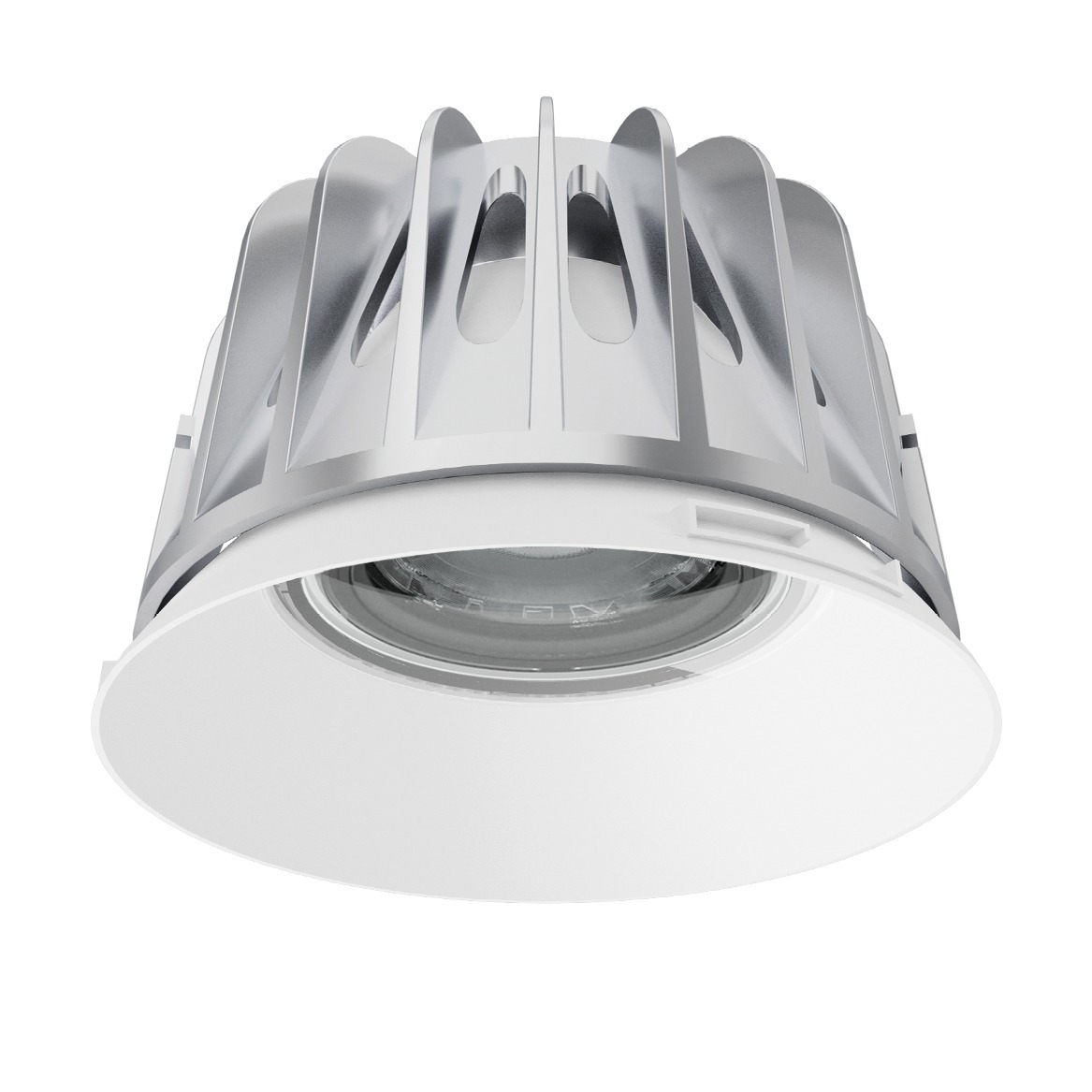

Technical description
Single emission recessed downlights for indoor application. The natural white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 6634 lm, with a 179.3 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20; the total weight is of 1.189 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 37 W. The power supply cable is included and features a 0.3 m length.
The device features protection class III and can be ceiling-mounted with an outer casing, code C-C100012(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 83008
Multipower - DALI 2 Push 0/1-10V Multi Current - 4-18W DC powerLEDs - 350mA 53V / 6-26W DC powerLEDs - 500mA 53V / 8-31W DC powerLEDs - 600mA 53V / 15W DC arrayLED - 400mA 37V / 25W DC arrayLED - 700mA 37V / 30W DC arrayLED - 850mA 37V / 35W DC arrayLED - 950mA 37V / 45W DC arrayLED - 1200mA 37V | 1-10V Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
Code C-E100048
Constant Current LED Power Supply 53.2W 500-1400mA | Multi Power 198~264V AC / 180~280V DC 53.2 W
| Family | Multi Power |
|---|---|
| IP | IP20 |
| Operation | CV |
