Modus Microprismatic

83724N96

Indoor / Catenary and Systems, Linear Lights

Systems - Lines | 90 topLED 30 W DC 24 V

Modular

IP
IP40
Optic
Batwing
Degrees
73°
CCT
4000 K
CRI
92
Delivered lumens
2665 lm
Finishes
White
Installation position
Ceiling
Control
-
Efficiency
88.8 lm/W
Source Type
topLED

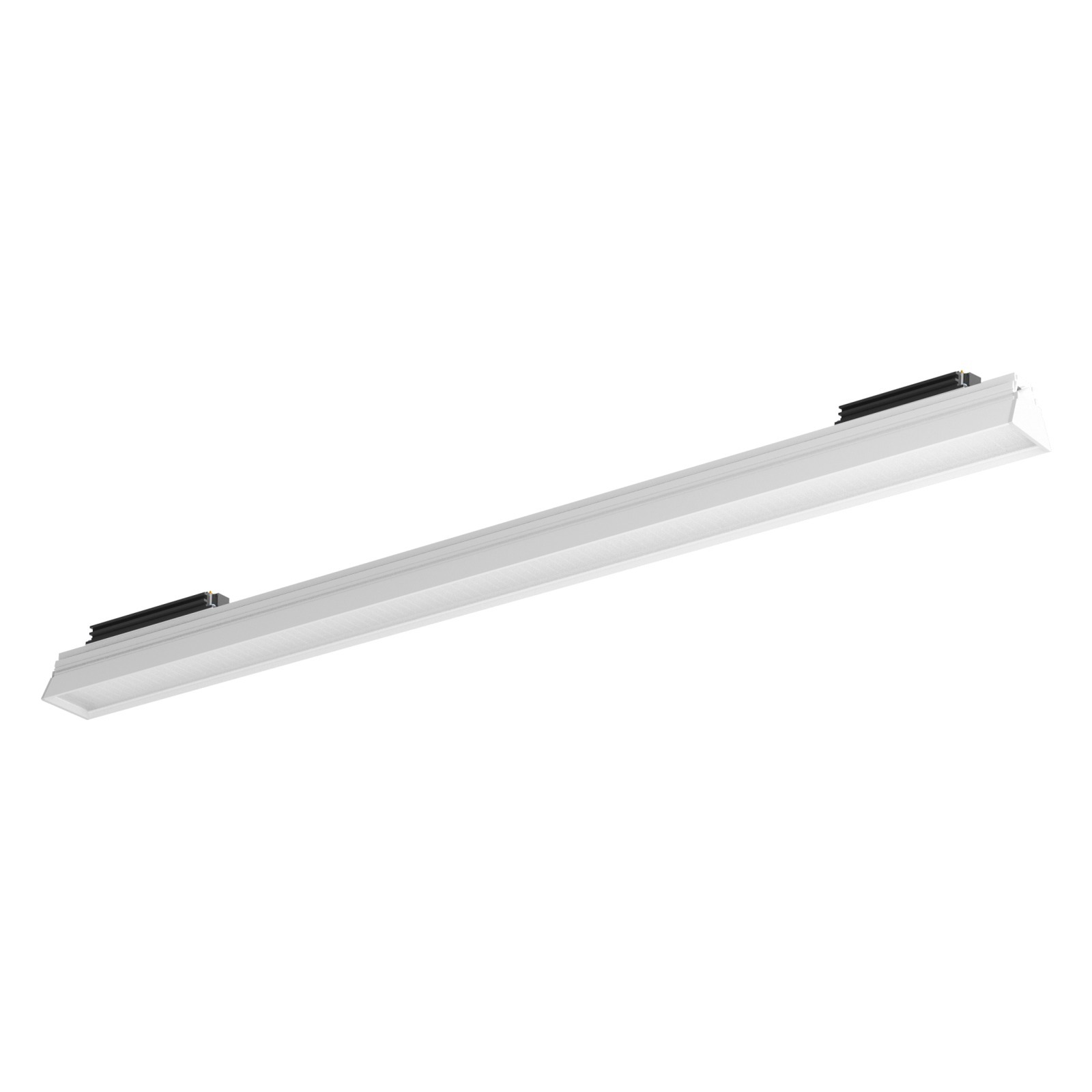

Single emission systems or lines for indoor application. The natural white LED light source with a batwing light distribution is composed of 90 topled LEDs with CCT of 4000 K and a CRI 92; the source luminous flux is 4139 lm, with a 138.0 lm/W nominal luminous efficacy.

The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 1.4 kg.

The total absorbed power is 30 W.

The device features protection class III and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
