Modus Optus_EX
83756N35
Indoor / Catenary and Systems, Linear Lights
Systems - Lines
3 x powerLEDs 5 W DC 24 V
| IP | IP40 |
|---|---|
| Optic | Medium Flood |
| Degrees | 32° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 407 lm |
| Finishes | Black |
| Control | - |
| Efficiency | 81.4 lm/W |
| Source Type | powerLEDs |
Technical description

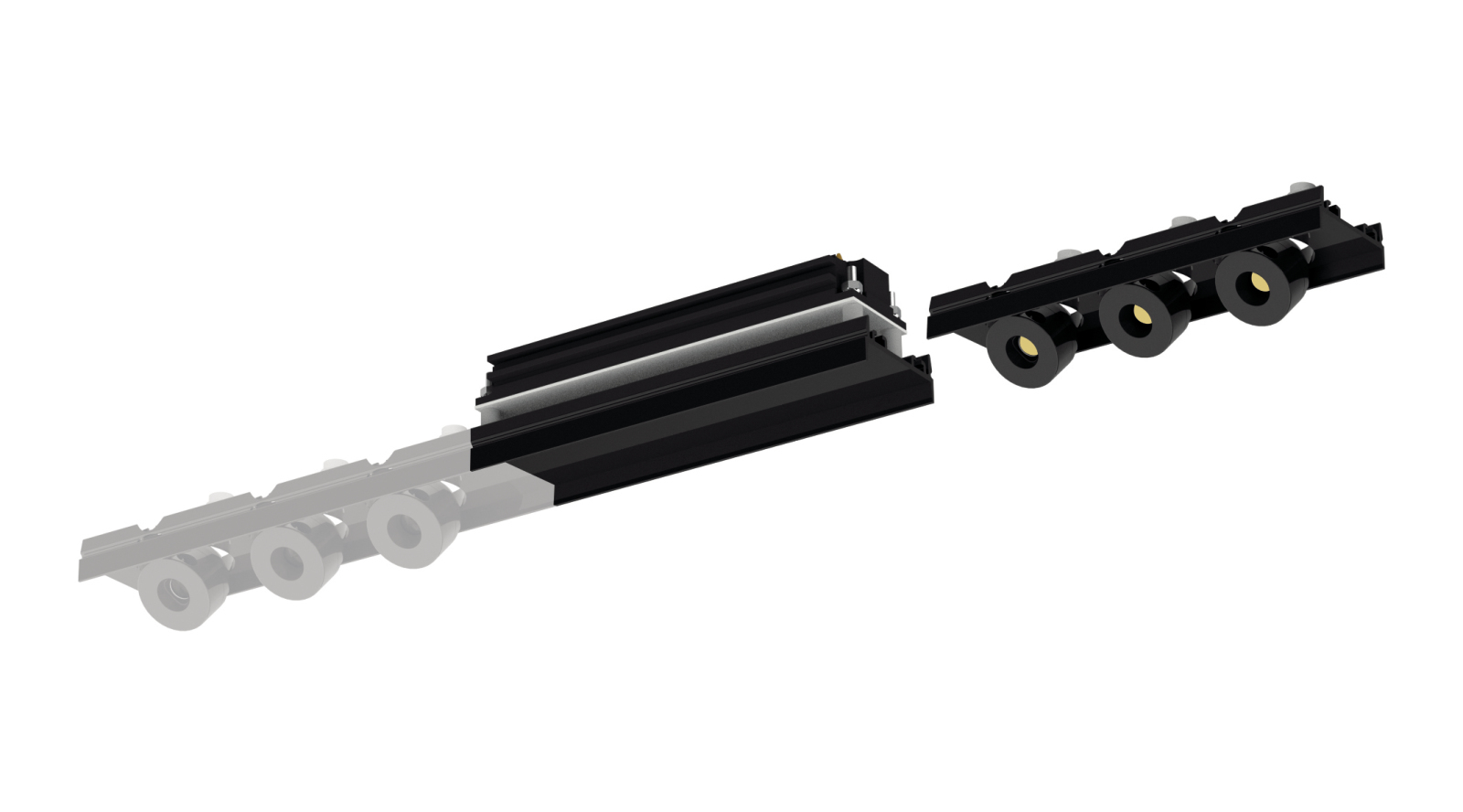

Multiple emission systems or lines for indoor application. The natural white LED light source with a medium flood light distribution is composed of 3 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 561 lm, with a 112.2 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a metallization treatment. The ingress protection degree is IP40; the total weight is of 0.210 kg.
The total absorbed power is 5 W. The power supply cable is included and features a 0.25 m length.
The device features protection class III.
Compliant with the EN 60598-1 standard and its specific provisions.
