Modus_MP Master
83816D00
Indoor / Catenary and Systems, Linear Lights
Systems - Lines | 198-264 V AC /176-280 V DC
192 topLED 27 W DC - 30 W AC | Modular Master
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 160.2° |
| CCT | From 2700 to 5000 K |
| CRI | 80 |
| Delivered lumens | 2973 lm |
| Finishes | Black |
| Installation position | Ceiling |
| Control | DALI |
| Source Type | topLED |
Technical description

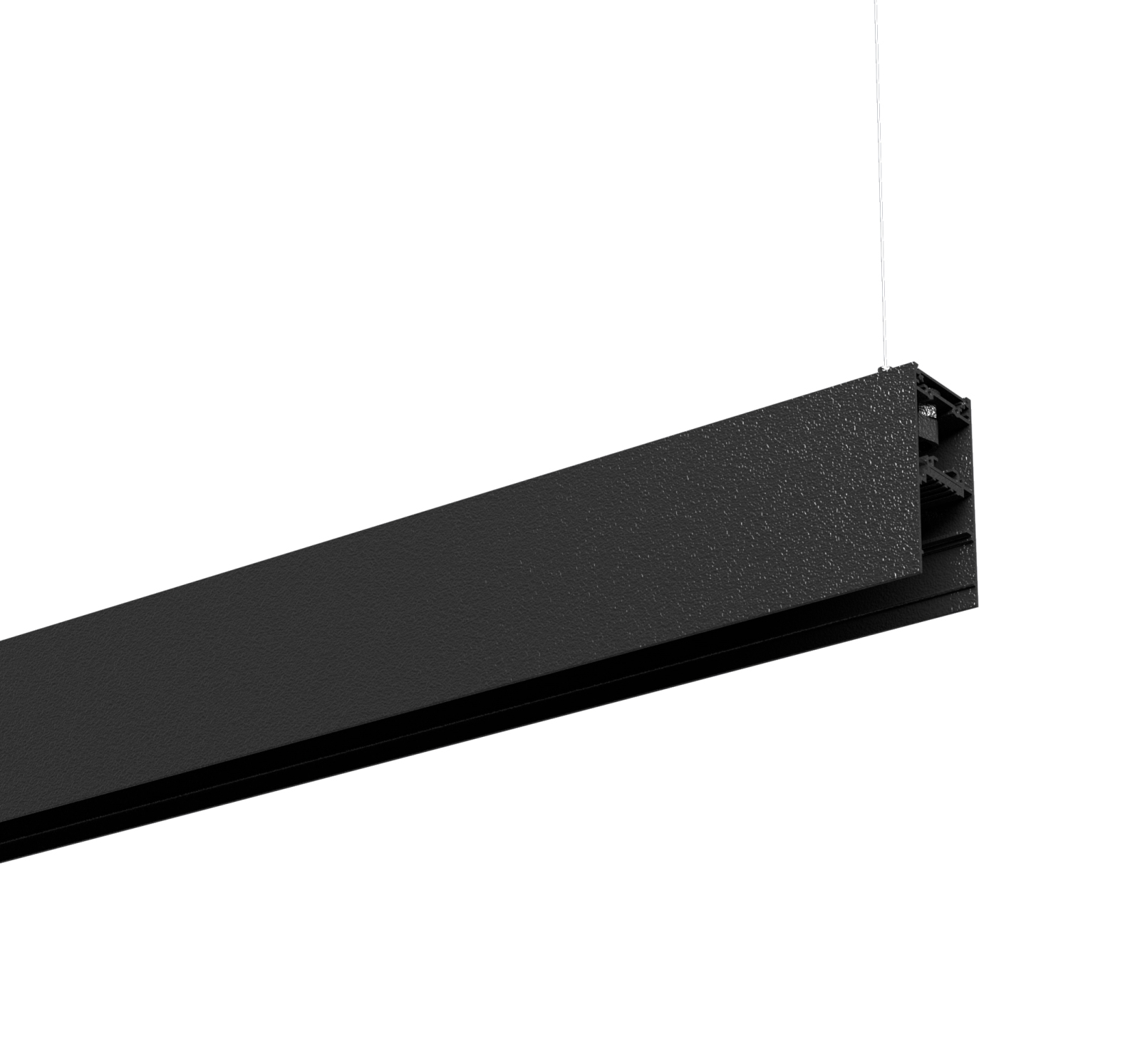

Single emission systems or lines for indoor application. The dynamic white LED light source with a diffused light distribution is composed of 192 topled LEDs with CCT of From 2700 to 5000 K and a CRI 80.
The device body is made of aluminium 6060 and features a black finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 4.3 kg.
The total absorbed power is 30 W. The power supply cable is included and features a 2 m length.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
