8026
Outdoor / Ceiling Lights, Wall lighting
Wall Lights - Ceiling Downlights | 220-240 V
24 topLED 3 W DC - 4 W AC
| IP | IP65 |
|---|---|
| IK | 06 |
| Optic | Diffused |
| Degrees | 180° |
| CCT | 3000 K |
| CRI | 85 |
| Optical compartment IP | IP65 |
| Delivered lumens | 223 lm |
| Finishes | Black |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 55.8 lm/W |
| Source Type | topLED |
Technical description

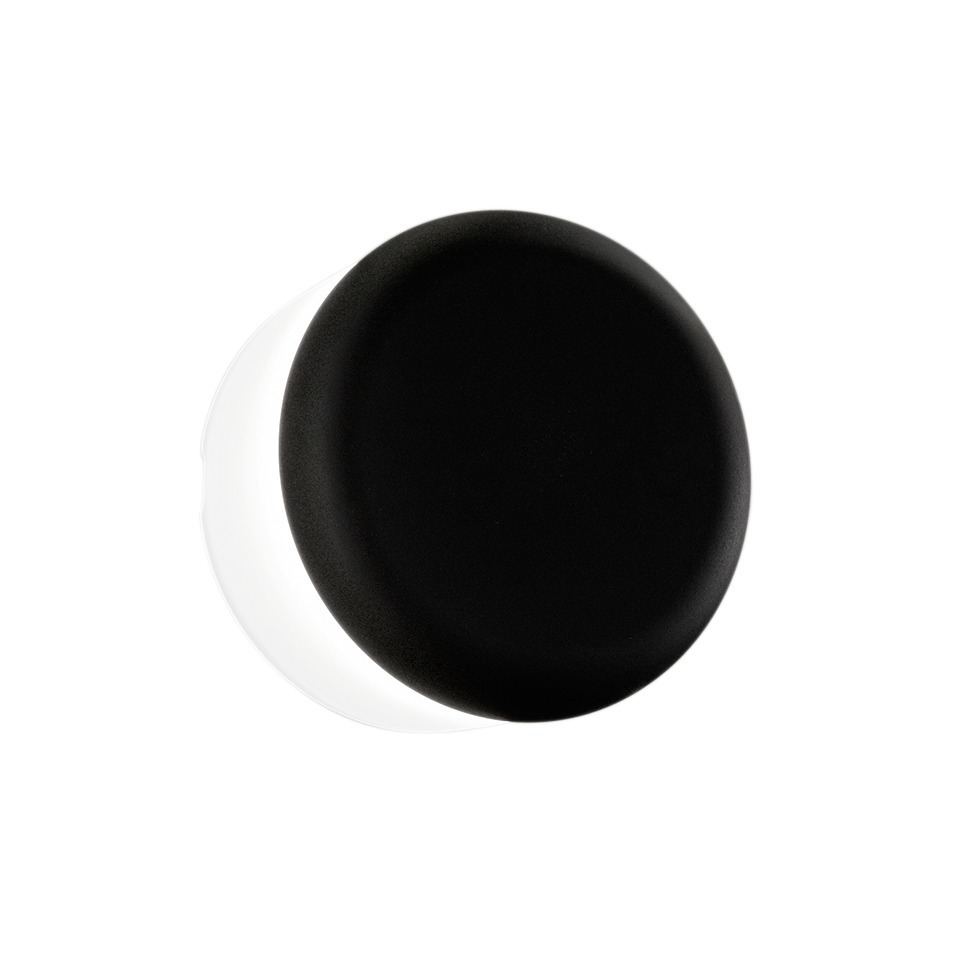

Double emission wall lights or ceiling downlights for indoor or outdoor application. The warm white LED light source with a diffused light distribution is composed of 24 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 354 lm, with a 118.0 lm/W nominal luminous efficacy.
The device body is made of PC and features a black finish; the diffuser is made of pe; the mounting frame is made of PC, with a white finish. The ingress protection degree is IP65; the total weight is of 0,820 kg.
The total absorbed power is 4 W.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
