Nautilus_RP
C00109SEWFL
Outdoor / Underwater
Submerged
3 x powerLEDs 6 W DC 12 V
| IP | IP68 |
|---|---|
| IK | 10 |
| Optic | Flood |
| Degrees | 23.6° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 723 lm |
| Finishes | Stainless Steel |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Efficiency | 51.6 lm/W |
| Source Type | powerLEDs |

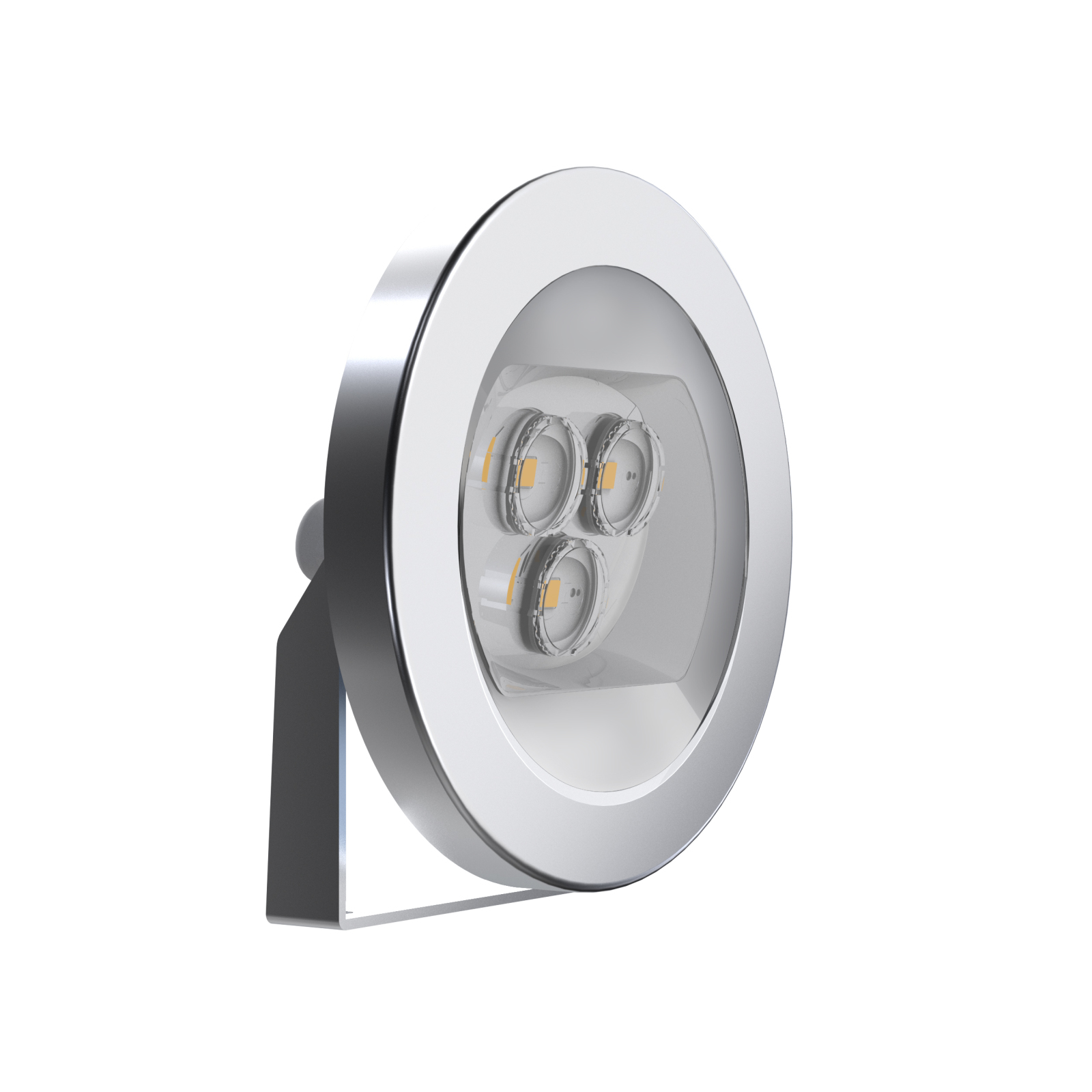

Technical description
Single emission submerged for outdoor application. The warm white LED light source with a flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 945 lm, with a 157.5 lm/W nominal luminous efficacy.
The device body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 6.82 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 6 W. The power supply cable is included and features a 60 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 83015
Stormshield - DALI driver 120W DC - 10A 12V | DALI Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 83010
Stormshield - On/Off Driver - 60W - 12V DC switching | On/Off Driver 90~264V AC / 127~370V DC 60 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 83012
Stormshield - DALI driver 60W DC - 5A 12V | DALI Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 83013
Stormshield - On/Off Driver 120W - 12V DC switching | On/Off Driver 180~305V AC / 254~431V DC 120 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
