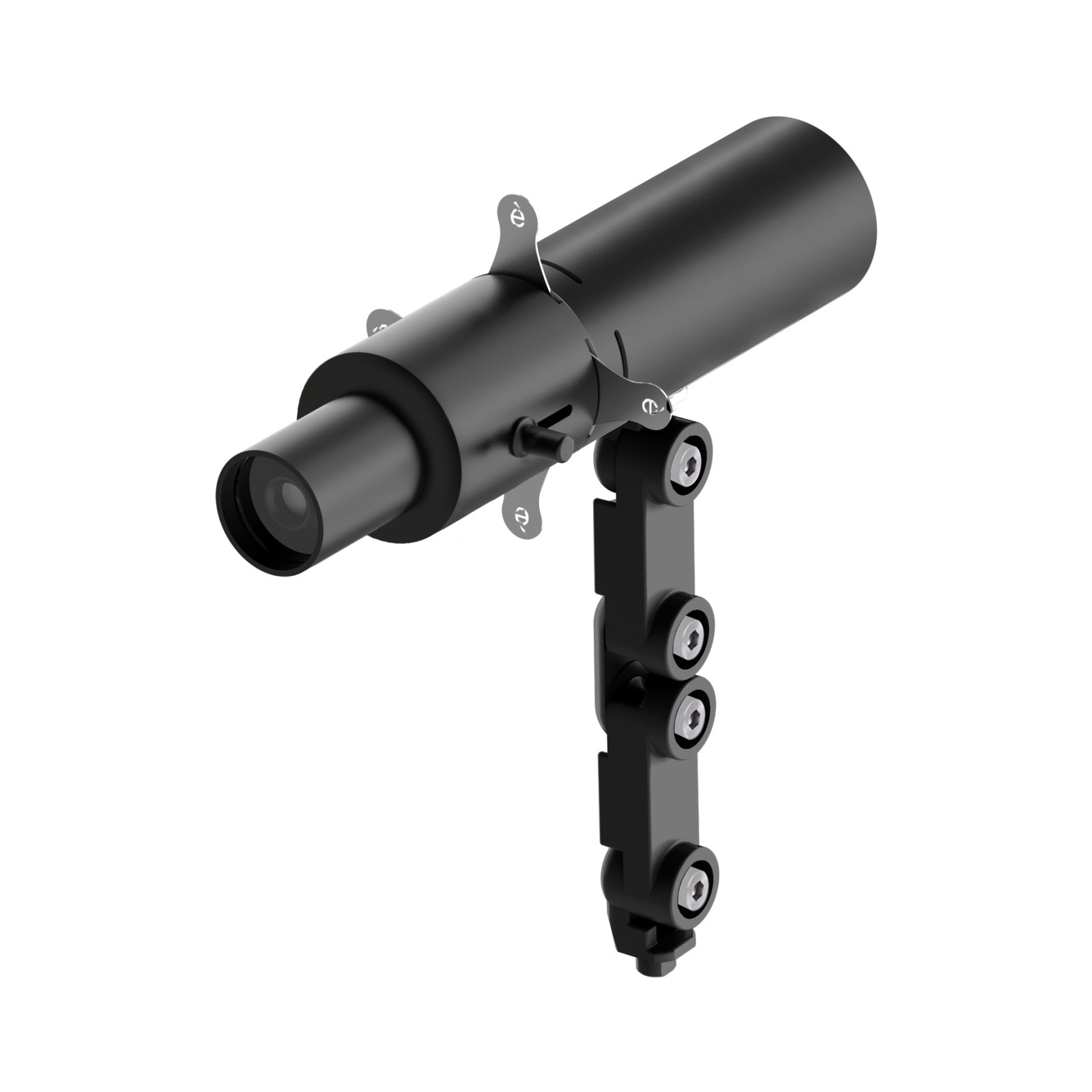

Navata Pound_Shaper
76743N66
Indoor / Projectors
Projectors
1 arrayLED 11 W DC 300 mA
| IP | IP20 |
|---|---|
| Optic | Shaper Short Distance |
| Degrees | 35.2° |
| CCT | 4000 K |
| CRI | 98 |
| Delivered lumens | 159 lm |
| Finishes | Black |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Efficiency | 14.5 lm/W |
| Source Type | arrayLED |
Technical description
Single emission projectors for indoor application. The natural white LED light source with a shaper short distance light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 98; the source luminous flux is 1182 lm, with a 107.5 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.5 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 11 W.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99941
Navata fixing base DALI-2 from 300mA to 1050mA - 3W to 44W - Black | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
Code 99730
Simon - DALI Push and Simply Dim Multi Current - 220mA 37V 8W / 300mA 37V 11W / 400mA 37V 15W | DALI Push and Simply Dim Multi Power 198~264V AC / 180~275V DC
| Family | Multi Power |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 99734
Simon - On/Off Driver - 220mA 37V 8W / 300mA 37V 11W / 400mA 37V 15W | Multi Power 198~264V AC / 180~275V DC
| Family | Multi Power |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 99943
Navata fixing base On/Off from 300mA to 1050mA - 11W to 38W - Black | Multi Power 198~264V AC / 176~264V DC
| Family | Multi Power |
|---|---|
| IP | IP20 |
| Operation | CC |
You've seen 4 products out of 8
