Nitum_R
C00273CHMMW
Indoor / Recessed Downlights
Downlights
1 x powerLED 2 W DC 630 mA













IP | IP44 |
---|---|
Optic | Medium Wide Flood |
Degrees | 47° |
CCT | 2700 K |
CRI | 90 |
Delivered lumens | 169 lm |
Finishes | Chrome |
Installation position | Wall lights, Ceiling |
Control | |
Efficiency | 84.5 lm/W |
Source Type | powerLED |
Technical description

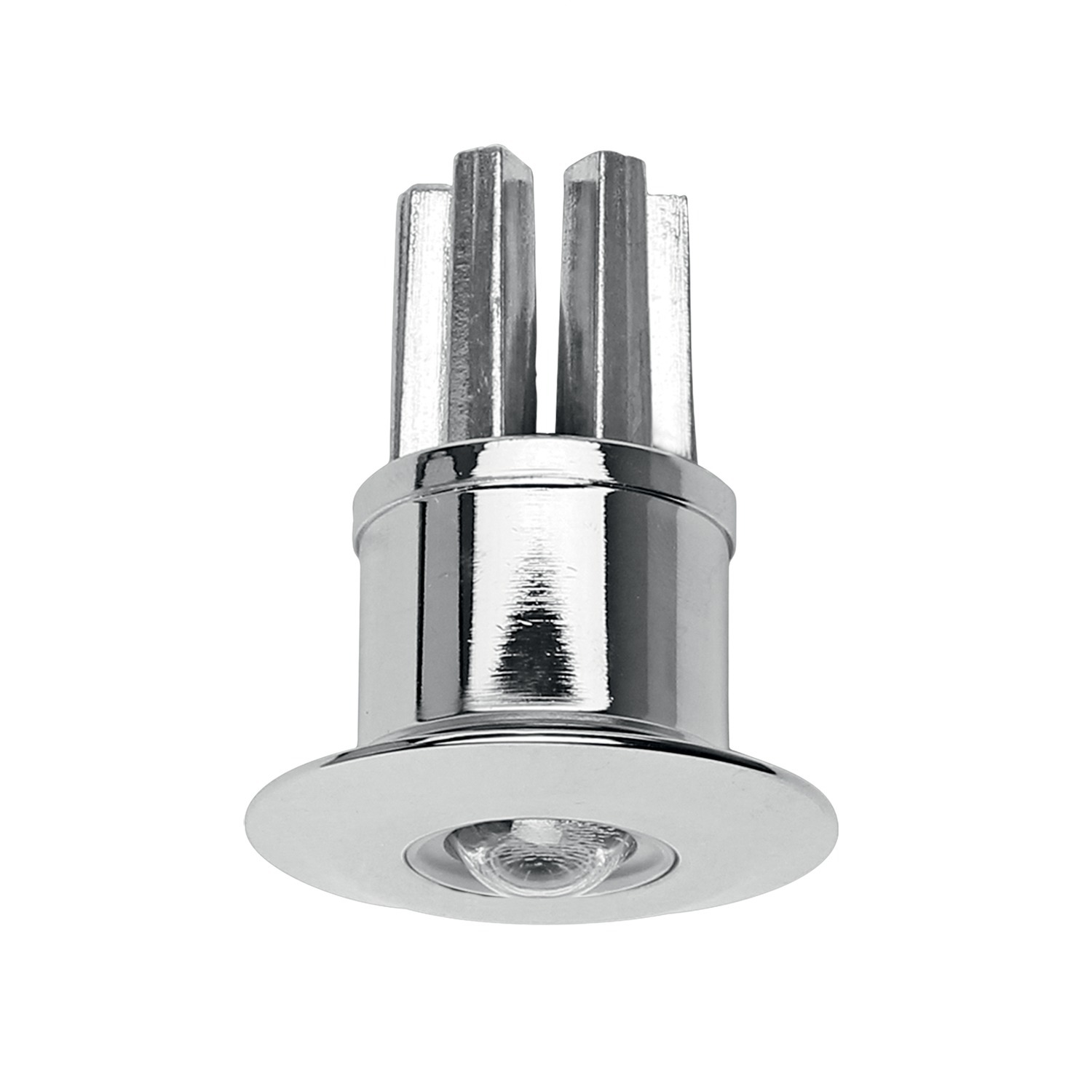

Single emission recessed downlights for indoor application. The super warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 199 lm, with a 99.5 lm/W nominal luminous efficacy.
The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.07 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 2 W. The power supply cable is included and features a 0.12 m length.
The device features protection class III and can be wall lights or ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84901(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99376
Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |

Code 99105
Leon - On/Off Driver | On/Off Driver 198~264V AC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |

Code 89147
Slim - On/Off Driver - 630mA 6.6V 2-4W | On/Off Driver 198~264V AC / 180~275V DC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |

You've seen 3 products out of 3
