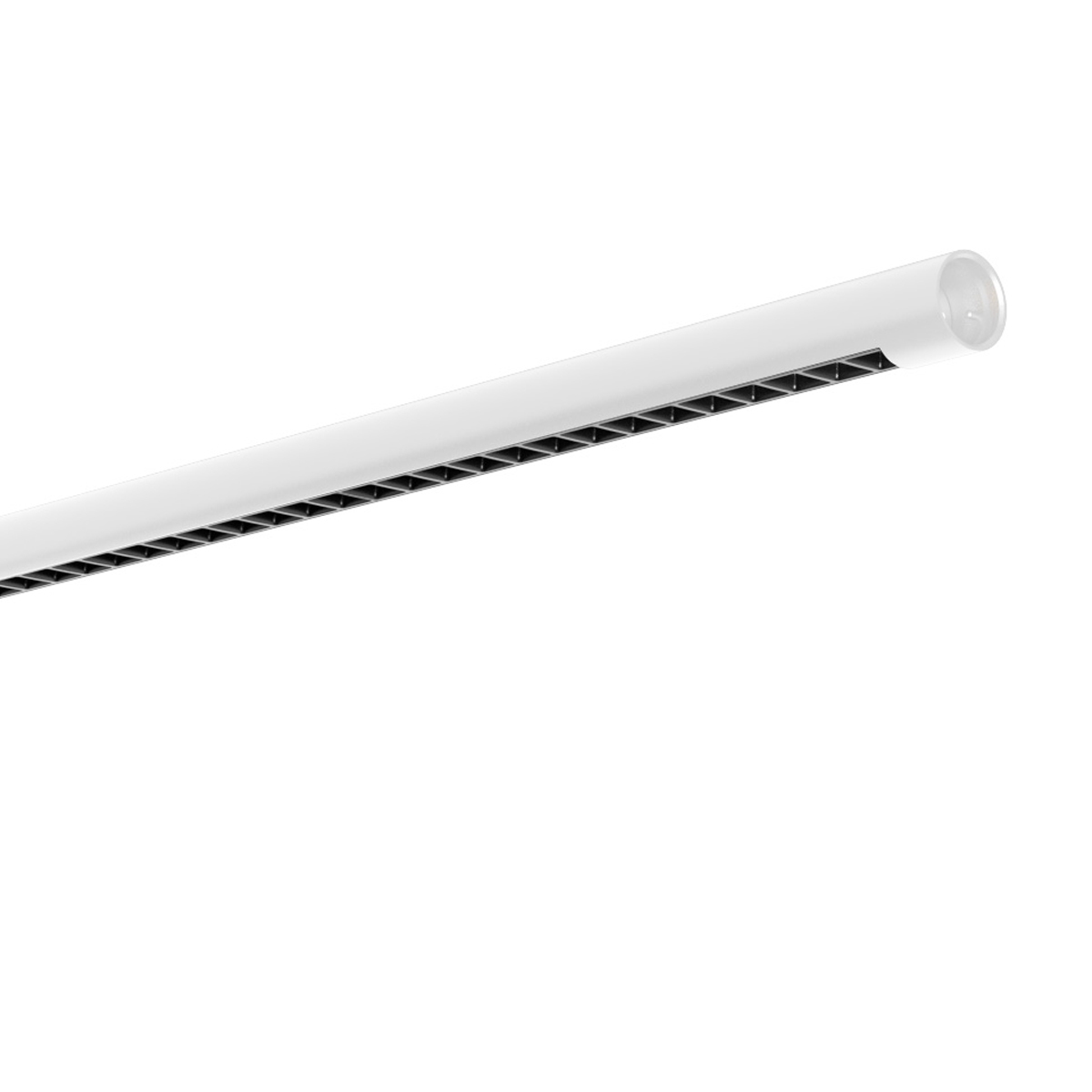

Node System_L Comfort Mono-Emission
76406M50
Indoor / Catenary and Systems
Systems
84 topLED 33 W DC 48 V
| IP | IP40 |
|---|---|
| Optic | Medium Wide Flood |
| Degrees | 49° |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | 2766 lm |
| Finishes | White |
| Control | DALI-2 |
| Efficiency | 83.8 lm/W |
| Source Type | topLED |
Technical description
Single emission systems for indoor application. The super warm white LED light source with a medium wide flood light distribution is composed of 84 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 5334 lm, with a 161.6 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 1.920 kg.
The total absorbed power is 33 W.
The device features protection class III.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99784
Stormshield - On/Off Driver 48V 150W 3.13A | Switching Driver 180~295V AC / 255~417V DC 150 W
| Family | Switching Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 83042
Berda Maxi - DALI converter 1-144W DC stripLED - 12A 12V / 1-288 W DC stripLED - 12A 24V | 1-10V Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CV |
Code 99785
Stormshield - On/Off Driver 48V 240W 5A | On/Off Driver 100~305V AC / 142~431V DC 240 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 83270
DALI signal optoisolator | DALI Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CV |
You've seen 4 products out of 6
