Node System_L Mono-Emission
76377W00
Indoor / Catenary and Systems
Systems
168 topLED 31 W DC 48 V
| IP | IP40 |
|---|---|
| Optic | Diffused |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 2928 lm |
| Finishes | Black |
| Control | |
| Efficiency | 94.5 lm/W |
| Source Type | topLED |

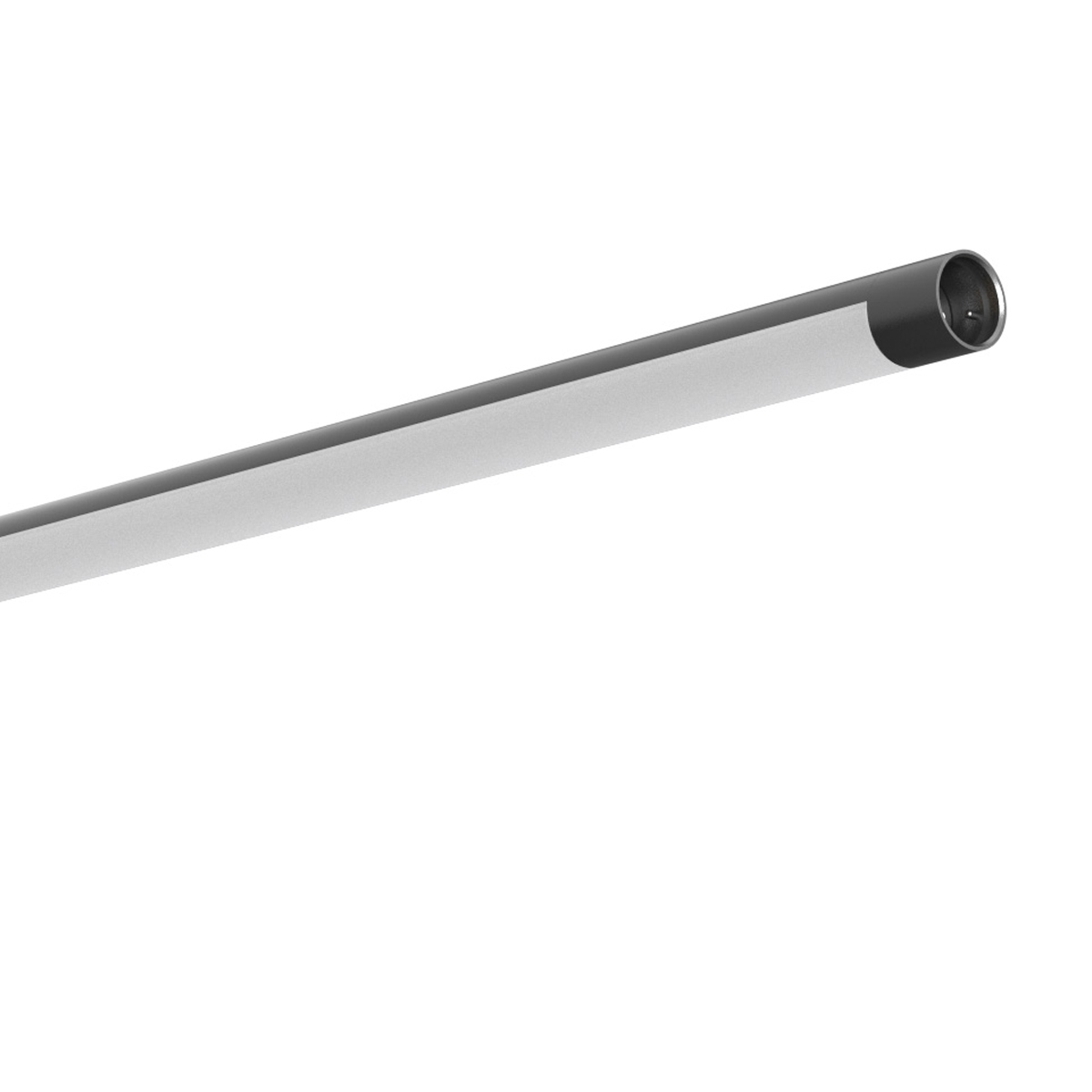

Technical description
Single emission systems for indoor application. The warm white LED light source with a diffused light distribution is composed of 168 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 5739 lm, with a 185.1 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 1.333 kg.
The total absorbed power is 31 W.
The device features protection class III.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99784
Stormshield - On/Off Driver 48V 150W 3.13A | Switching Driver 180~295V AC / 255~417V DC 150 W
| Family | Switching Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 99785
Stormshield - On/Off Driver 48V 240W 5A | On/Off Driver 100~305V AC / 142~431V DC 240 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 83259
ON/OFF driver with cover - suspension - Black - 100W - Output 48V DC - Input 220-240V AC | On/Off Driver 220~240V AC 96 W
| Family | On/Off Driver |
|---|---|
| IP | IP20 |
| Operation | CV |
Code 83263
ON/OFF driver with cover - suspension - Black - 150W - Output 48V DC - Input 220-240V AC | On/Off Driver 100~305V AC / 142~431V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP20 |
| Operation | CV |
