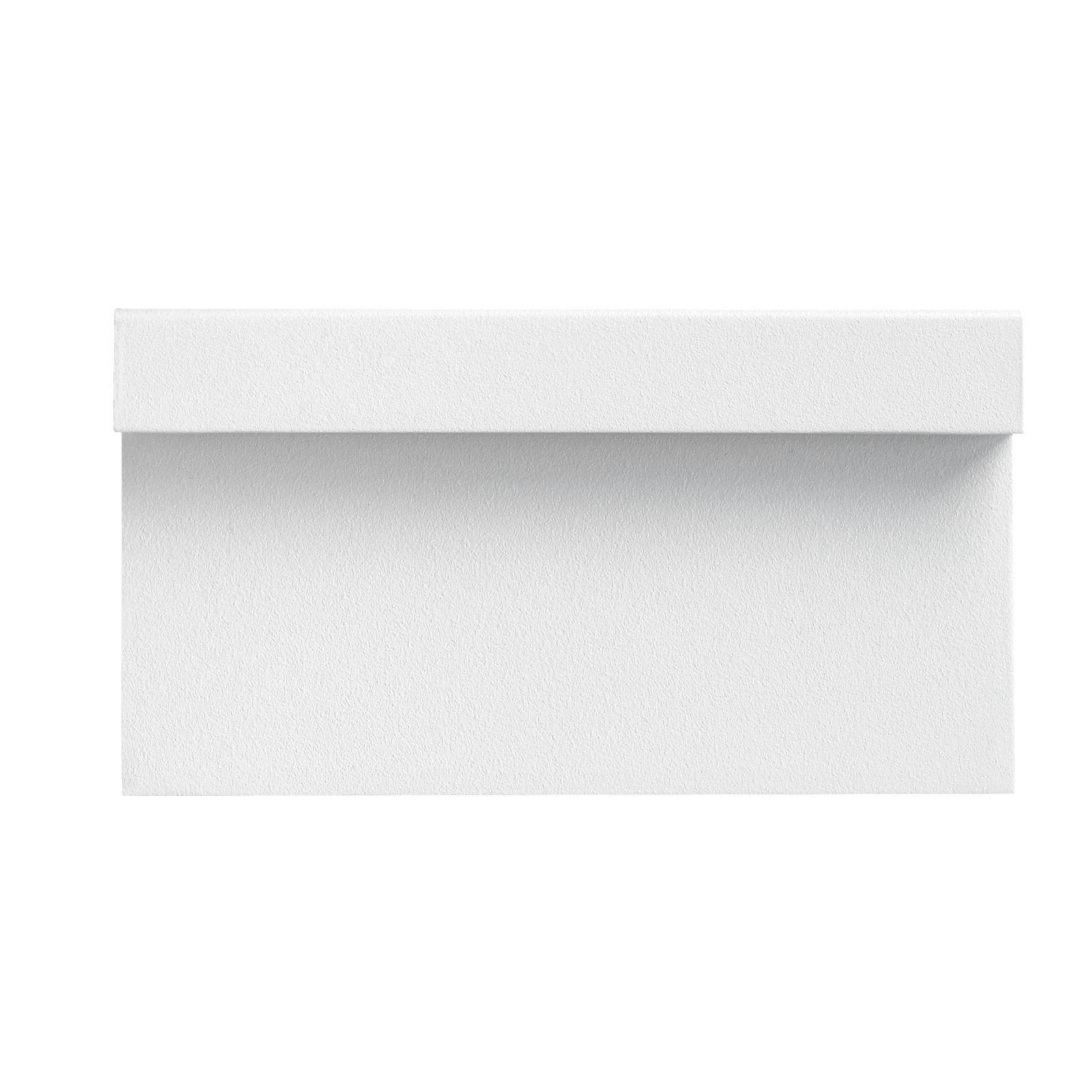

Optiwall
77387N07
Outdoor / Wall lighting, Step lights
Wall Lights
22 topLED 3.5 W DC 24 V
| IP | IP65 |
|---|---|
| IK | 09 |
| Optic | Asymmetric Wallwasher |
| CCT | 4000 K |
| CRI | 80 |
| Delivered lumens | 377 lm |
| Finishes | White |
| Installation position | Wall lights |
| Control | |
| Efficiency | 107.7 lm/W |
| Source Type | topLED |
Technical description
Single emission wall lights for outdoor application. The natural white LED light source with a asymmetric wallwasher light distribution is composed of 22 topled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 502 lm, with a 143.4 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65; the total weight is of 0.269 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 3.5 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 89179
Maxi_Aqualed - On/Off Driver 24V 24W | On/Off Driver 198~264V AC 24 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 89488
Aqualed - On/Off Driver 1-14.4 W DC stripLED 600mA 24V / 1-14.4 W DC topLED | On/Off Driver 190~250V AC / 180~275V DC 15 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
