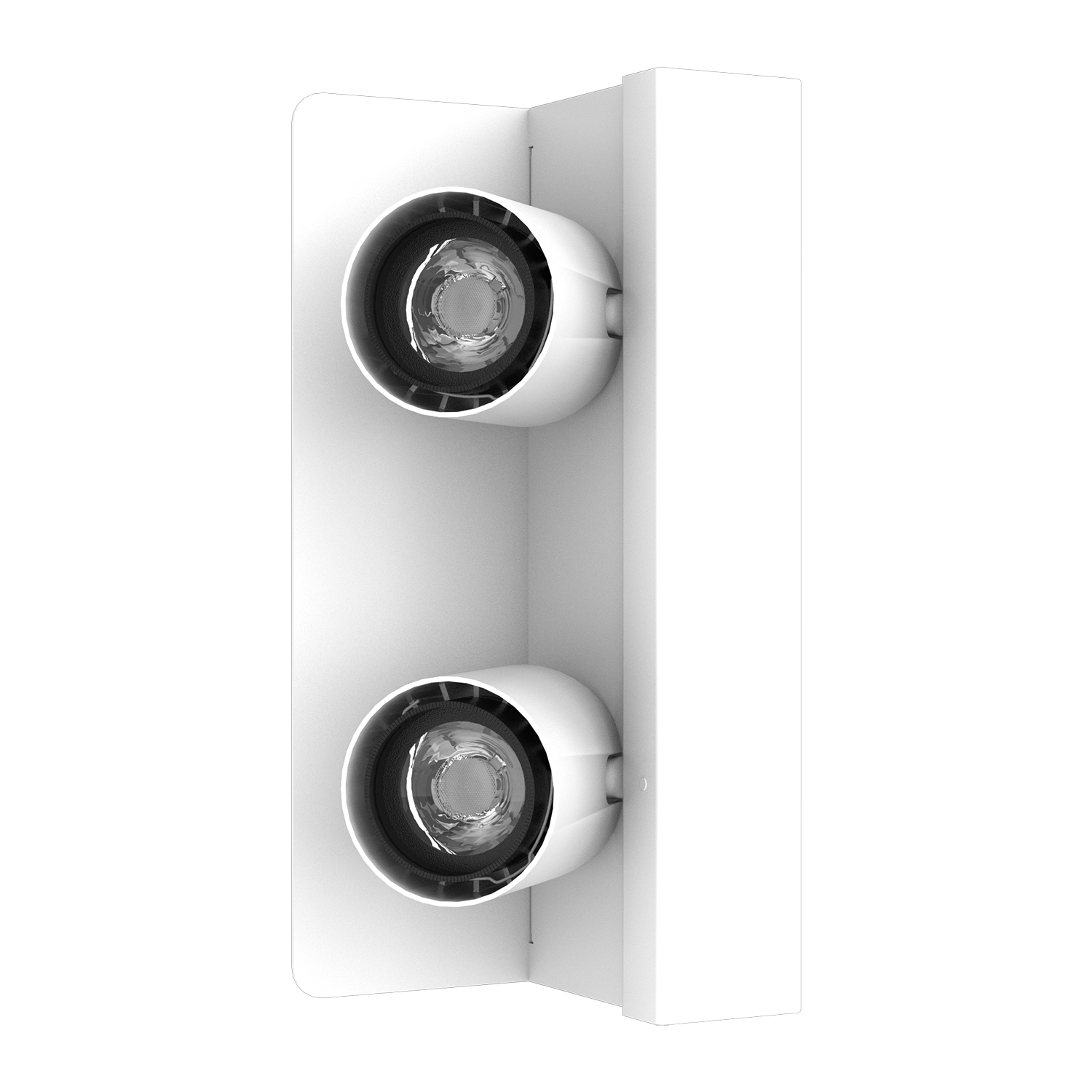

Optus_W
77076N60
Indoor / Wall Mounted Lights
Wall Lights
2 arrayLED 30 W DC 840 mA
| IP | IP20 |
|---|---|
| Optic | Wide Flood |
| Degrees | 49.4° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 3866 lm |
| Finishes | White |
| Installation position | Wall lights |
| Control | |
| Efficiency | 128.9 lm/W |
| Source Type | arrayLED |
Technical description
Single emission wall lights for indoor application. The natural white LED light source is composed of 2 arrayled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 5350 lm, with a 178.3 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 1.8 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 30 W.
The device features protection class III and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99135
Leon - On/Off Driver | On/Off Driver 198~264V AC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 99345
Argo - DALI Push and Simply Dim Multi Current - 6-25W DC arrayLED - 700mA 9-37V / 7.5-30W DC arrayLED - 840mA 9-37V / 9-35W DC arrayLED - 950mA 9-37V | DALI Push and Simply Dim Multi Power 198~264V AC / 176~275V DC
| Family | Multi Power |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 83008
Multipower - DALI 2 Push 0/1-10V Multi Current - 4-18W DC powerLEDs - 350mA 53V / 6-26W DC powerLEDs - 500mA 53V / 8-31W DC powerLEDs - 600mA 53V / 15W DC arrayLED - 400mA 37V / 25W DC arrayLED - 700mA 37V / 30W DC arrayLED - 850mA 37V / 35W DC arrayLED - 950mA 37V / 45W DC arrayLED - 1200mA 37V | 1-10V Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
