Optus_W
77081M15
Indoor / Wall Mounted Lights
Wall Lights
3 arrayLED 45 W DC 1250 mA
| IP | IP20 |
|---|---|
| Optic | Spot |
| Degrees | 18.2° |
| CCT | 2700 K |
| CRI | 98 |
| Delivered lumens | 4010 lm |
| Finishes | Black |
| Installation position | Wall lights |
| Control | |
| Efficiency | 89.1 lm/W |
| Source Type | arrayLED |
Technical description

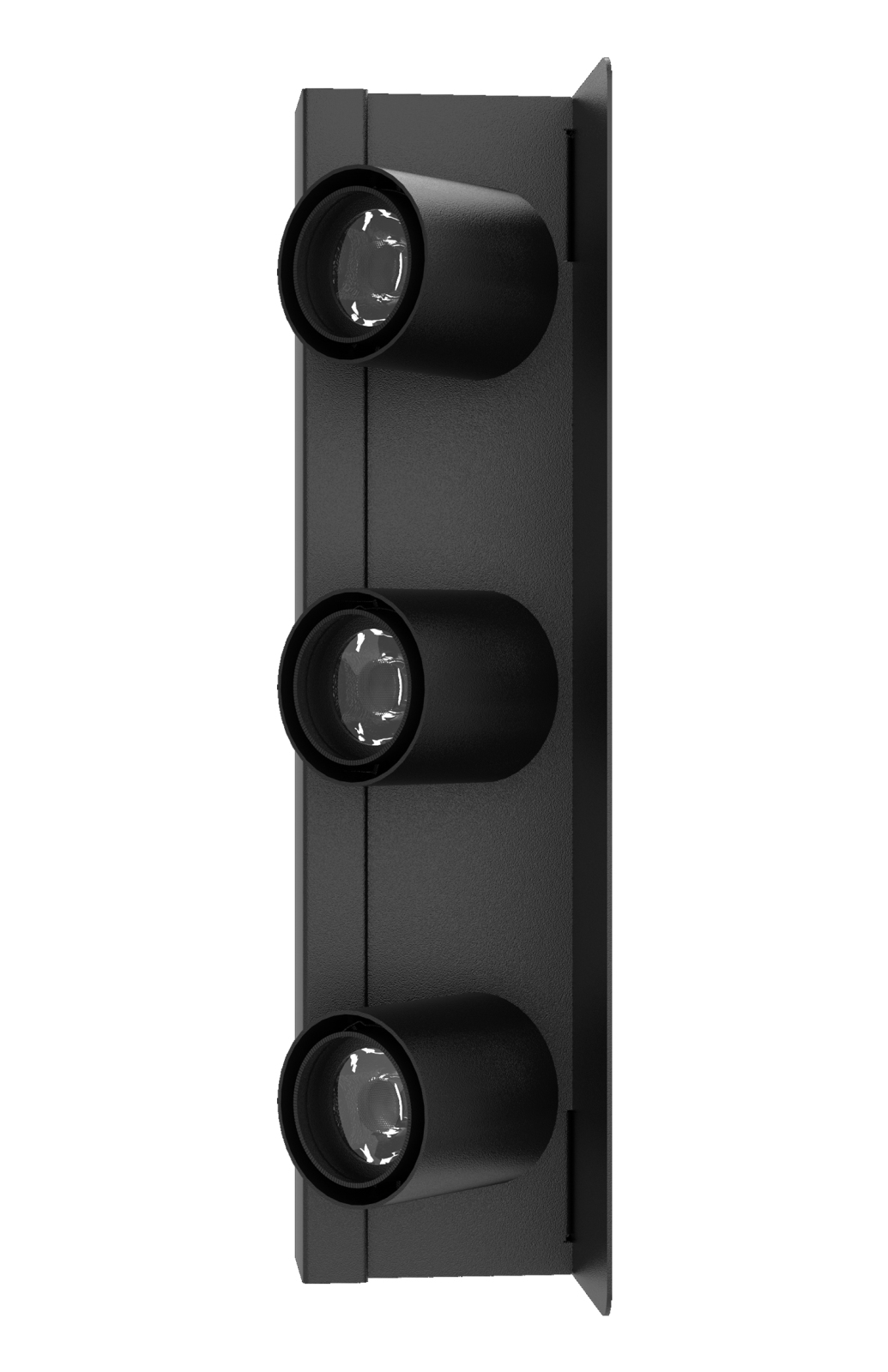

Single emission wall lights for indoor application. The super warm white LED light source with a spot light distribution is composed of 3 arrayled LEDs with CCT of 2700 K and a CRI 98; the source luminous flux is 6636 lm, with a 147.5 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 2.7 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 45 W.
The device features protection class III and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 83008
Multipower - DALI 2 Push 0/1-10V Multi Current - 4-18W DC powerLEDs - 350mA 53V / 6-26W DC powerLEDs - 500mA 53V / 8-31W DC powerLEDs - 600mA 53V / 15W DC arrayLED - 400mA 37V / 25W DC arrayLED - 700mA 37V / 30W DC arrayLED - 850mA 37V / 35W DC arrayLED - 950mA 37V / 45W DC arrayLED - 1200mA 37V | 1-10V Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
Code C-E100048
Constant Current LED Power Supply 53.2W 500-1400mA | Multi Power 198~264V AC / 180~280V DC 53.2 W
| Family | Multi Power |
|---|---|
| IP | IP20 |
| Operation | CV |
