Orma_A

81194M15

Outdoor / Uplights

Uplights

1 arrayLED 12 W DC 350 mA

IP
IP68
IK
10
Optic
Spot
Degree
13.8°
CCT
2700 K
CRI
80
Delivered lumens
1156 lm
Finishes
Stainless Steel
Installation position
Floor
Control
Efficiency
96.3 lm/W
Source Type
arrayLED

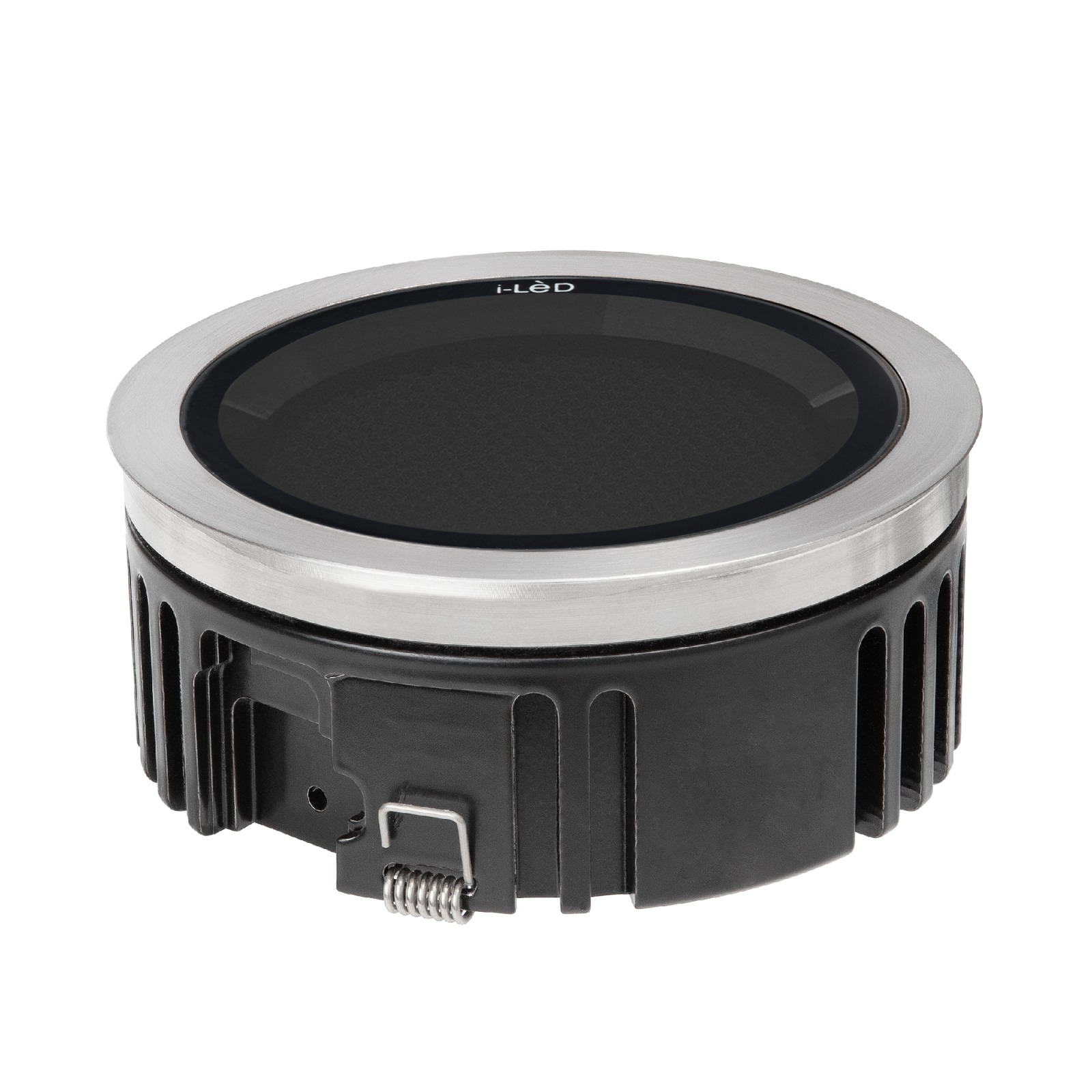

Single emission uplights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1724 lm, with a 143.7 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 12 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 99857(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code C-E200004

Aqualed_DALI2 - 350mA 13W | Push and Simply Dim Controller

FamilyController
IPIP67
OperationCC
Aqualed_DALI2 - 350mA 13W |  Push and Simply Dim  Controller
