Orma_QL

77302W00

New

Outdoor / Uplights

Uplights

1 x powerLED 4 W DC 350 mA

IP
IP67
IK
10
Optic
Diffused
Degree
117.8°
CCT
3000 K
CRI
80
Delivered lumens
44 lm
Finishes
Opal white
Installation position
Floor
Control
Efficiency
11.0 lm/W
Source Type
powerLED

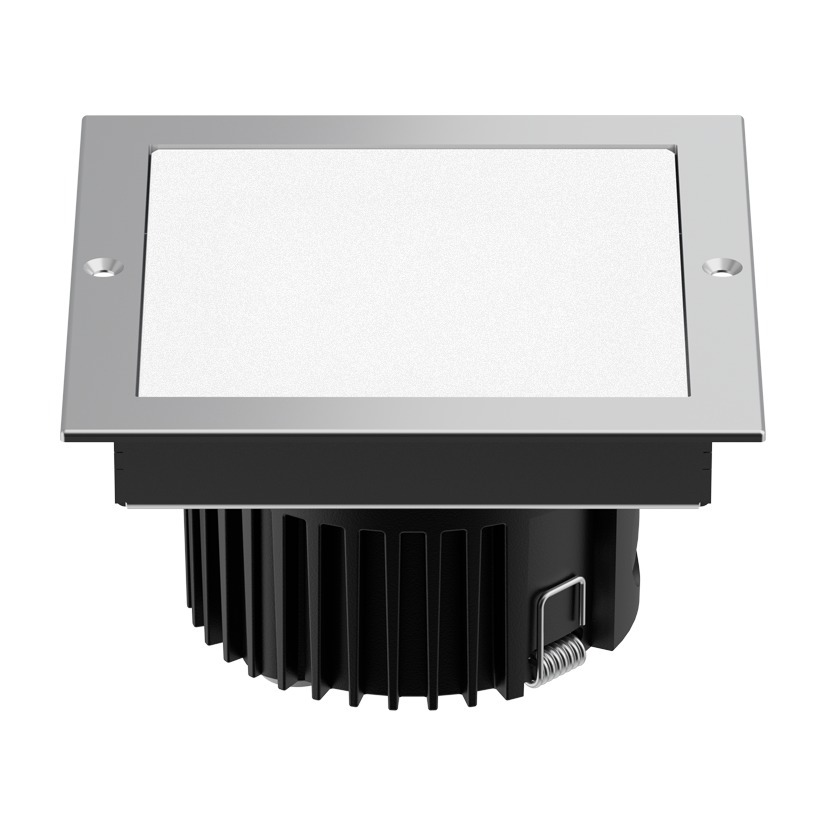

Single emission uplights for outdoor application. The warm white LED light source with a diffused light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 482 lm, with a 120.5 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of glass - tempered with a anti-slip painting treatment. The ingress protection degree is IP67; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 4 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 83410(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99186

Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 630mA 39V / 12-24 W DC powerLEDs | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP67
OperationCC
Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 630mA 39V / 12-24 W DC powerLEDs |   On/Off Driver 198~264V AC
.zip

Code 89420

Mini_Aqualed - On/Off Driver - 2-4 W DC powerLEDs - 630mA 6.6V | On/Off Driver 198~264V AC / 176~275V DC

FamilyOn/Off Driver
IPIP67
OperationCC
Mini_Aqualed - On/Off Driver - 2-4 W DC powerLEDs - 630mA 6.6V |   On/Off Driver 198~264V AC / 176~275V DC
.zip

Code C-E200008

Aqualed_Slim - On/Off Driver - 12W DC 630mA 9-20V | On/Off Driver 198~264V AC / 180~275V DC

FamilyOn/Off Driver
IPIP67
OperationCC
Aqualed_Slim - On/Off Driver - 12W DC 630mA 9-20V |   On/Off Driver 198~264V AC / 180~275V DC
.zip

Code C-E200002

Aqualed_DALI2 - 600mA 22W | Push and Simply Dim Controller

FamilyController
IPIP67
OperationCC
Aqualed_DALI2 - 600mA 22W |  Push and Simply Dim  Controller
.zip
