Peak-Maxi

C00379GGWPK

New

Outdoor / Bollards and poles

Bollard & Pole

18 x powerLEDs 22.2 W DC - 38 W AC

IP
IP66
IK
08
Optic
Park
Degrees
142.6°
CCT
3000 K
CRI
80
Delivered lumens
4163 lm
Finishes
Grey
Installation position
Floor
Control
Efficiency
109.6 lm/W
Source Type
powerLEDs

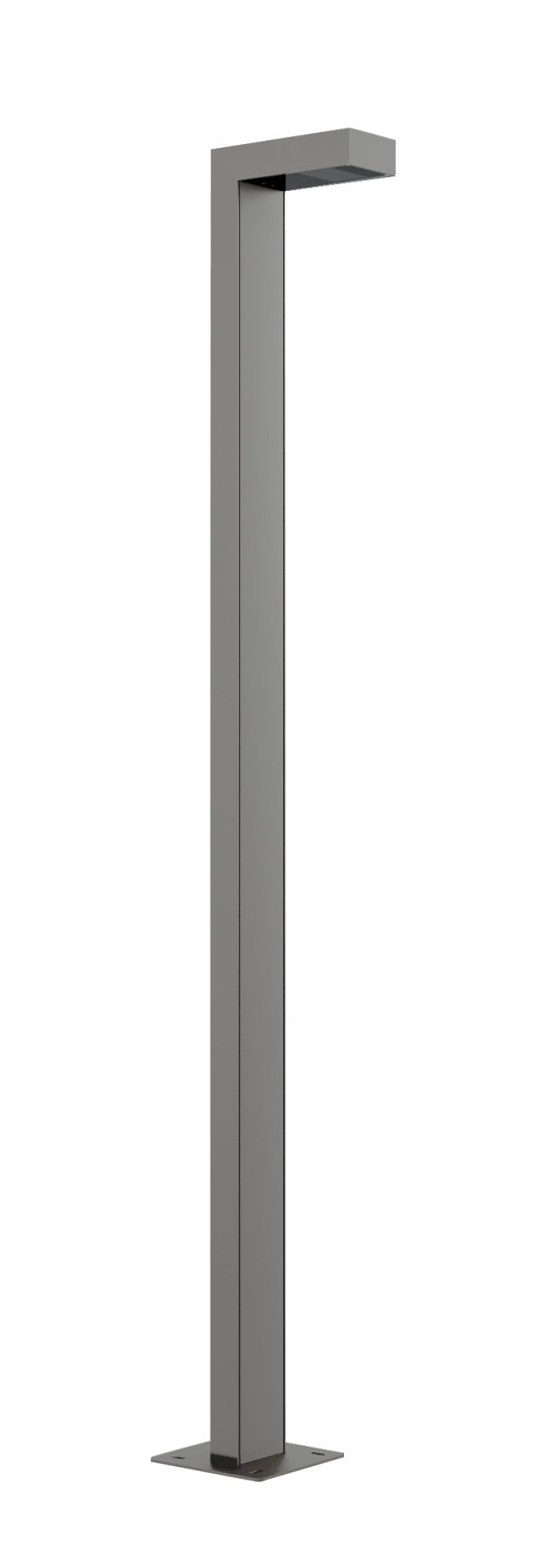

Single emission bollard & pole for outdoor application. The warm white LED light source with a park light distribution is composed of 12 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1656 lm, with a 111.9 lm/W nominal luminous efficacy.

The device body is made of aluminium 6060 and features a grey finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 27.8 kg.

The total absorbed power is 38 W.

The device features protection class II and can be floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

File BIM .rfa

2D/3D Drawings

Accessories
