Peak-Maxi
C00380GGMST
Outdoor / Bollards and poles
Bollard & Pole
18 x powerLEDs 22.2 W DC - 38 W AC












IP | IP66 |
---|---|
IK | 08 |
Optic | Street |
Degrees | 145.2° |
CCT | 2700 K |
CRI | 80 |
Delivered lumens | 3986 lm |
Finishes | Grey |
Installation position | Floor |
Control | DALI-2 |
Efficiency | 104.9 lm/W |
Source Type | powerLEDs |

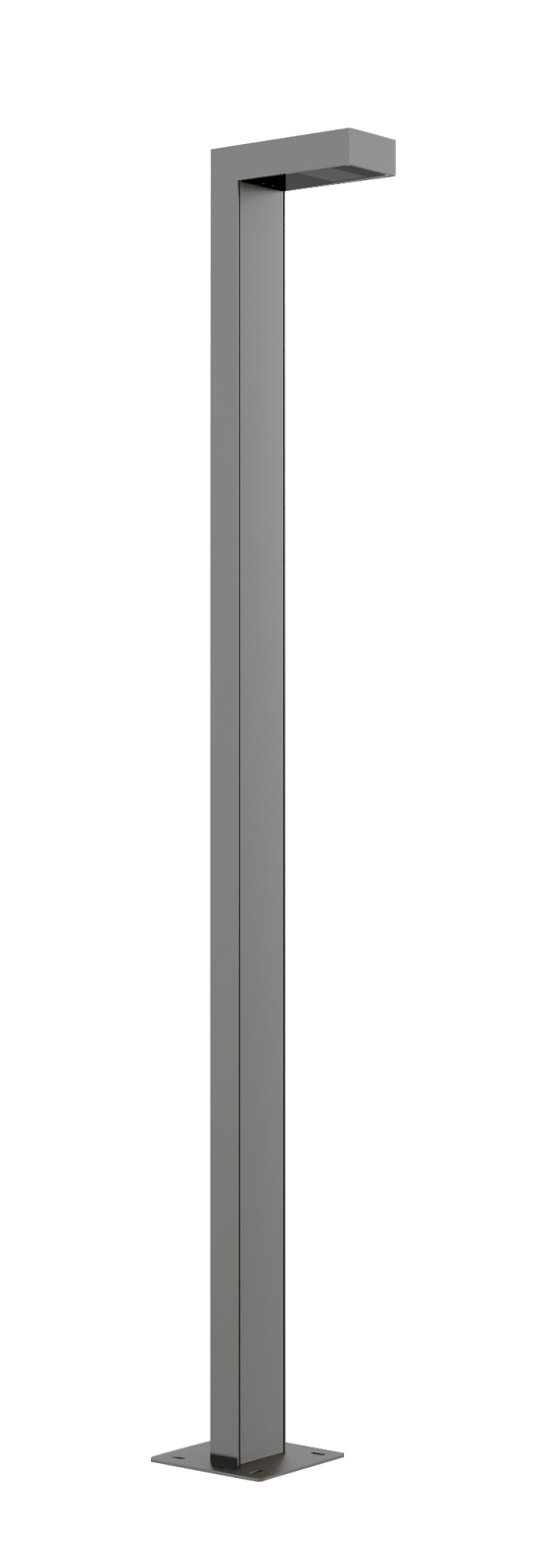

Technical description
Single emission bollard & pole for outdoor application. The super warm white LED light source with a street light distribution is composed of 18 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2250 lm, with a 101.4 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a grey finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 27.8 kg.
The total absorbed power is 38 W.
The device features protection class II and can be floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
File BIM .rfa
2D/3D Drawings
Accessories
