Picrol
C00280WHNXF
Indoor / Recessed Downlights
Downlights
1 x powerLED 1 W DC 350 mA
| IP | IP44 |
|---|---|
| Optic | Extra Wide Flood |
| Degrees | 115.4° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 76 lm |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 76.0 lm/W |
| Source Type | powerLED |
Technical description

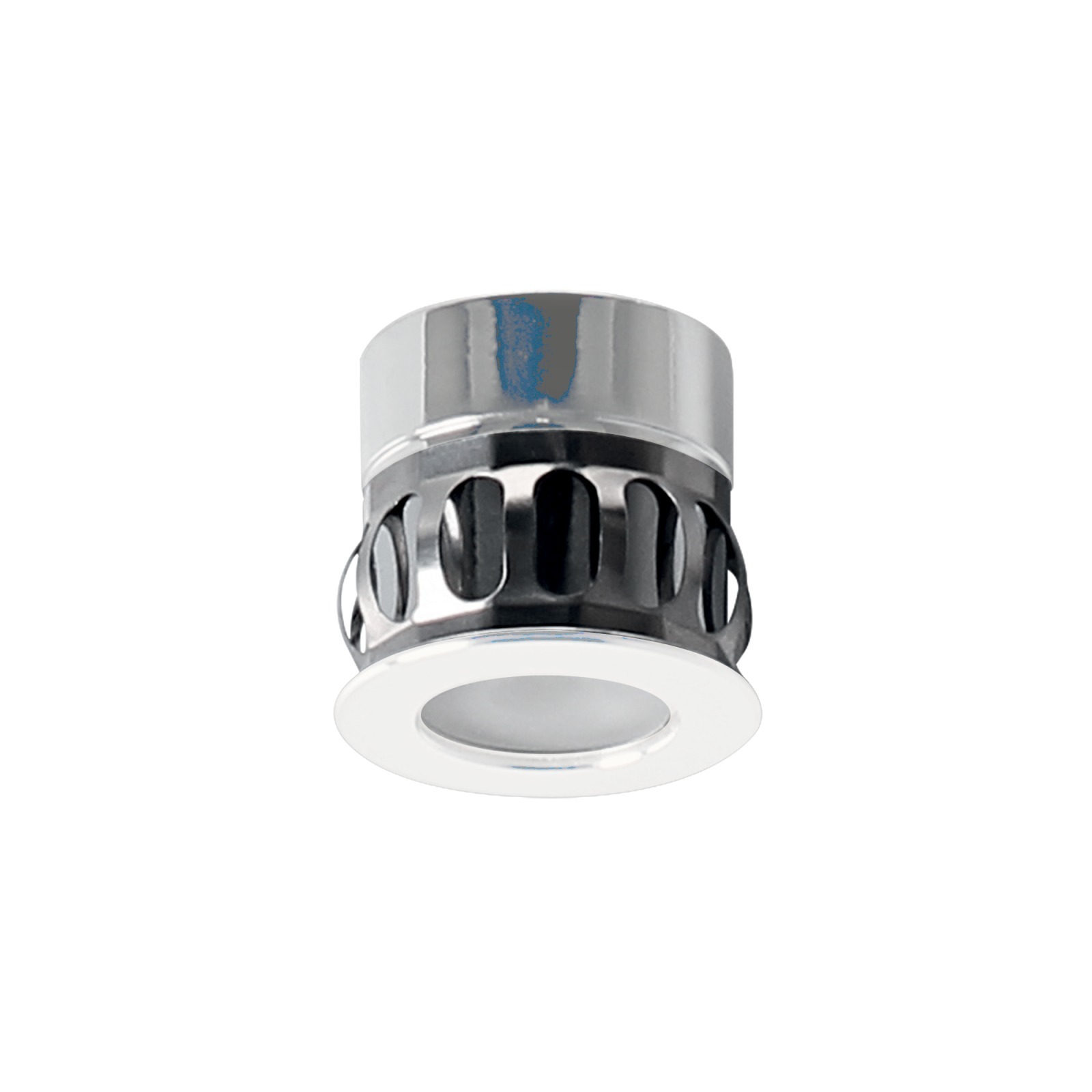

Single emission recessed downlights for indoor application. The natural white LED light source with a extra wide flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 147 lm, with a 147.0 lm/W nominal luminous efficacy.
The device body is made of brass and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP44; the total weight is of 0.061 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 1 W. The power supply cable is included and features a 0.12 m length.
The device features protection class III and can be wall lights or ceiling-mounted with an outer casing, code 84955(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 89144
Slim - On/Off Driver - 350mA 6.6V 1-2W | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 89145
Slim - On/Off Driver - 350mA 20V 3-6W / 350mA 20V 3.5-7W | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 99375
Slim - On/Off Driver - 350mA 40V 6-12W | On/Off Driver 198~264V AC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code C-E100011
Slim_PRO - DALI 2.0 DT6, simply DIM - 350mA 4W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP40 |
| Operation | CC |
