Picrol
C00281WHWMW
Indoor / Recessed Downlights
Downlights
1 x powerLED 1.5 W DC 500 mA
| IP | IP44 |
|---|---|
| Optic | Medium Wide Flood |
| Degrees | 47° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 154 lm |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 102.7 lm/W |
| Source Type | powerLED |

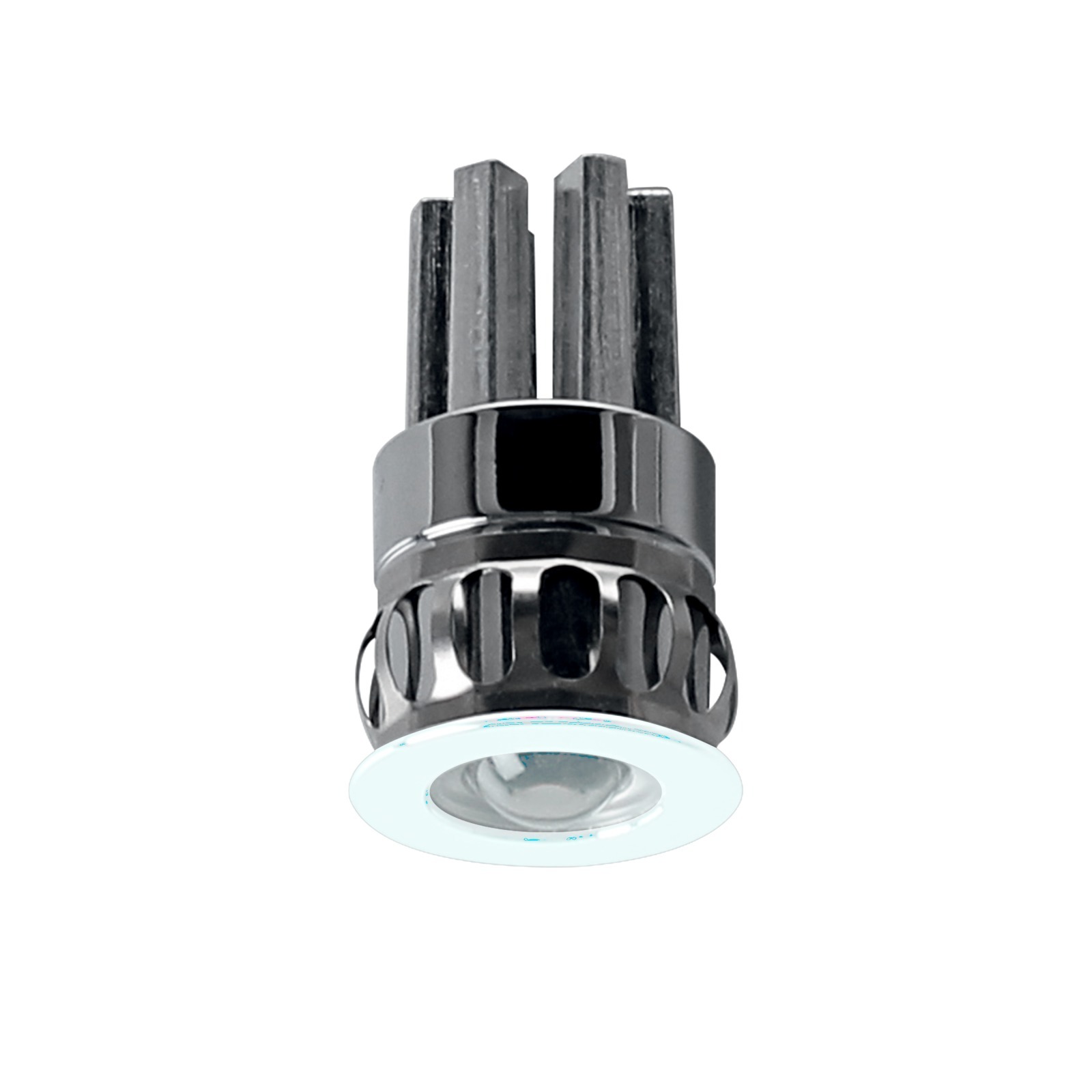

Technical description
Single emission recessed downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 213 lm, with a 142.0 lm/W nominal luminous efficacy.
The device body is made of brass and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP44; the total weight is of 0.08 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 1.5 W. The power supply cable is included and features a 0.12 m length.
The device features protection class III and can be wall lights or ceiling-mounted with an outer casing, code 84956(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99377
Slim - On/Off Driver - 500mA 20V 4.5-9W | On/Off Driver 198~264V AC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 89146
Slim - On/Off Driver - 500mA 10V 3-4.5W | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 99195
Slim - On/Off Driver - 500mA 6.6V 1.5-3W | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code C-E100004
Slim_PRO - 0/1-10V - 500mA 6W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP40 |
| Operation | CC |
