Poe_W
8501
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
1 topLED 6 W DC - 7 W AC








IP | IP20 |
---|---|
Optic | Diffused |
Degrees | 109.6° |
CCT | 3000 K |
CRI | 90 |
Delivered lumens | 536 lm |
Finishes | Black |
Installation position | Wall lights |
Control | |
Efficiency | 76.6 lm/W |
Source Type | topLED |
Technical description

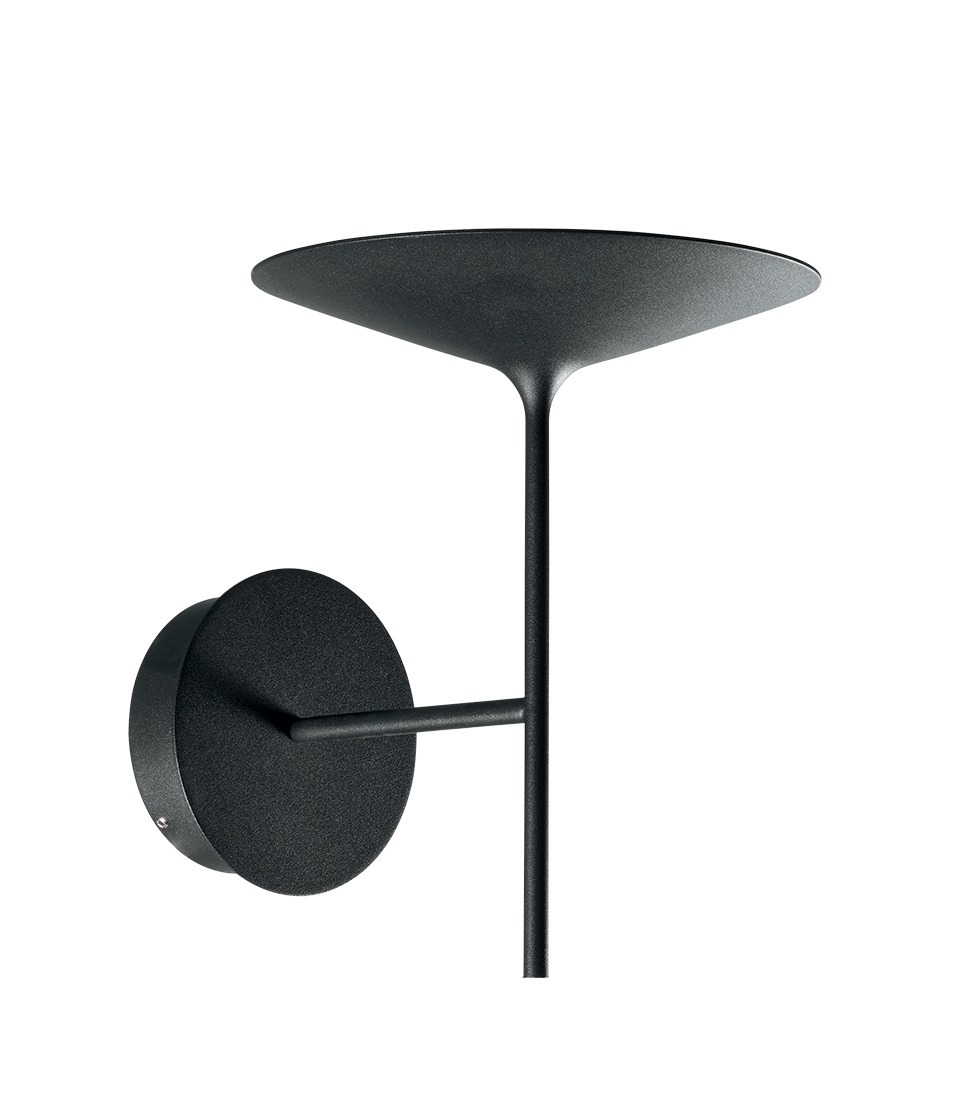

Single emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 740 lm, with a 123.3 lm/W nominal luminous efficacy.
The device body is made of iron and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a sandblasting treatment; the mounting frame is made of iron, with a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.74 kg.
The total absorbed power is 7 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
2D/3D Drawings
