Portik_Q

C00729DBWML

New

Outdoor / Ceiling Lights

Ceiling Downlights

1 arrayLED 6.5 W DC 200 mA

IP
IP65
IK
07
Optic
Medium Flood
Degrees
33.4°
CCT
3000 K
CRI
80
Delivered lumens
591 lm
Finishes
Dark brown
Installation position
Ceiling
Control
Efficiency
84.4 lm/W
Source Type
arrayLED

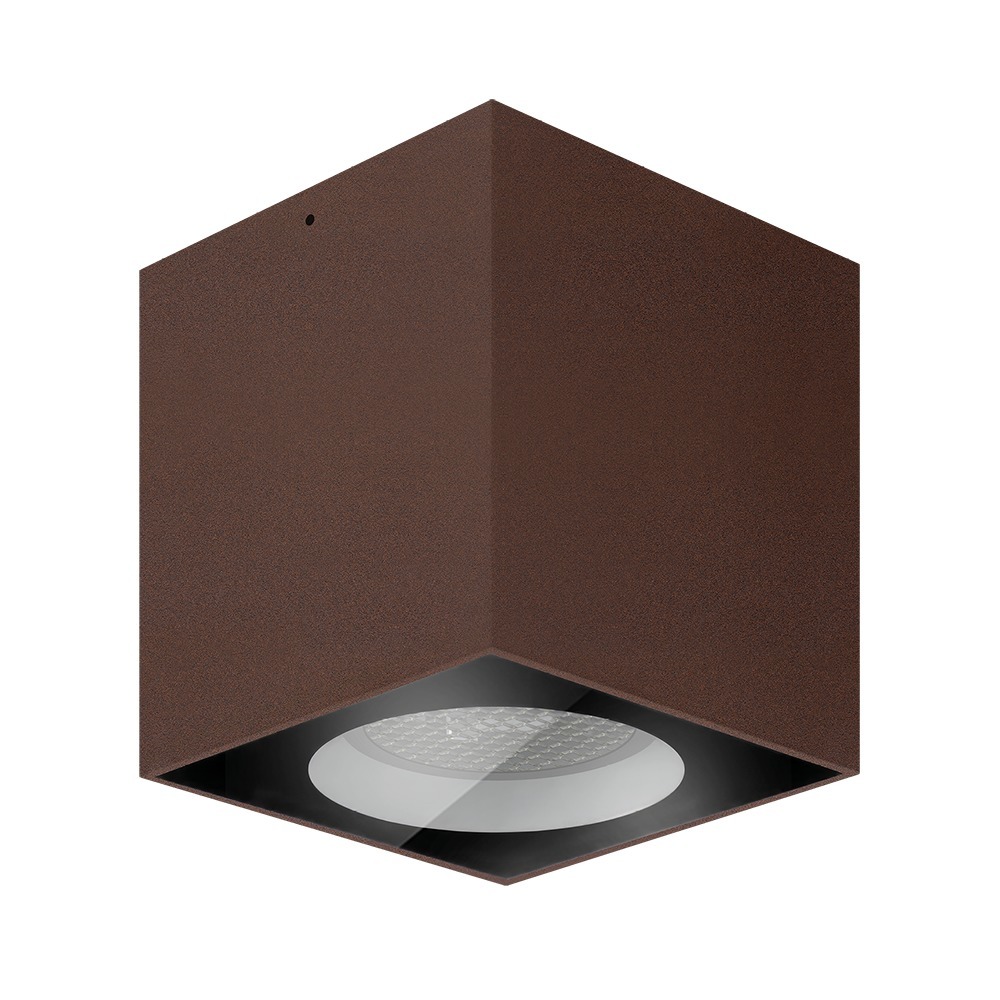

Single emission ceiling downlights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1087 lm, with a 167.2 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.64 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 6.5 W.

The device features protection class III and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99342

Aqualed - On/Off Driver - 3.8-8.4W DC powerLEDs 220mA 39V | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP67
OperationCC
Aqualed - On/Off Driver - 3.8-8.4W DC powerLEDs 220mA 39V |   On/Off Driver 198~264V AC
.zip
