Portik_Q

C00757WHMML

New

Outdoor / Ceiling Lights

Ceiling Downlights | 198-264 V AC /176-280 V DC

1 arrayLED 25 W DC - 28 W AC

IP
IP65
IK
07
Optic
Medium Flood
Degrees
30.2°
CCT
2700 K
CRI
80
Delivered lumens
2019 lm
Finishes
White
Installation position
Ceiling
Control
Efficiency
72.1 lm/W
Source Type
arrayLED

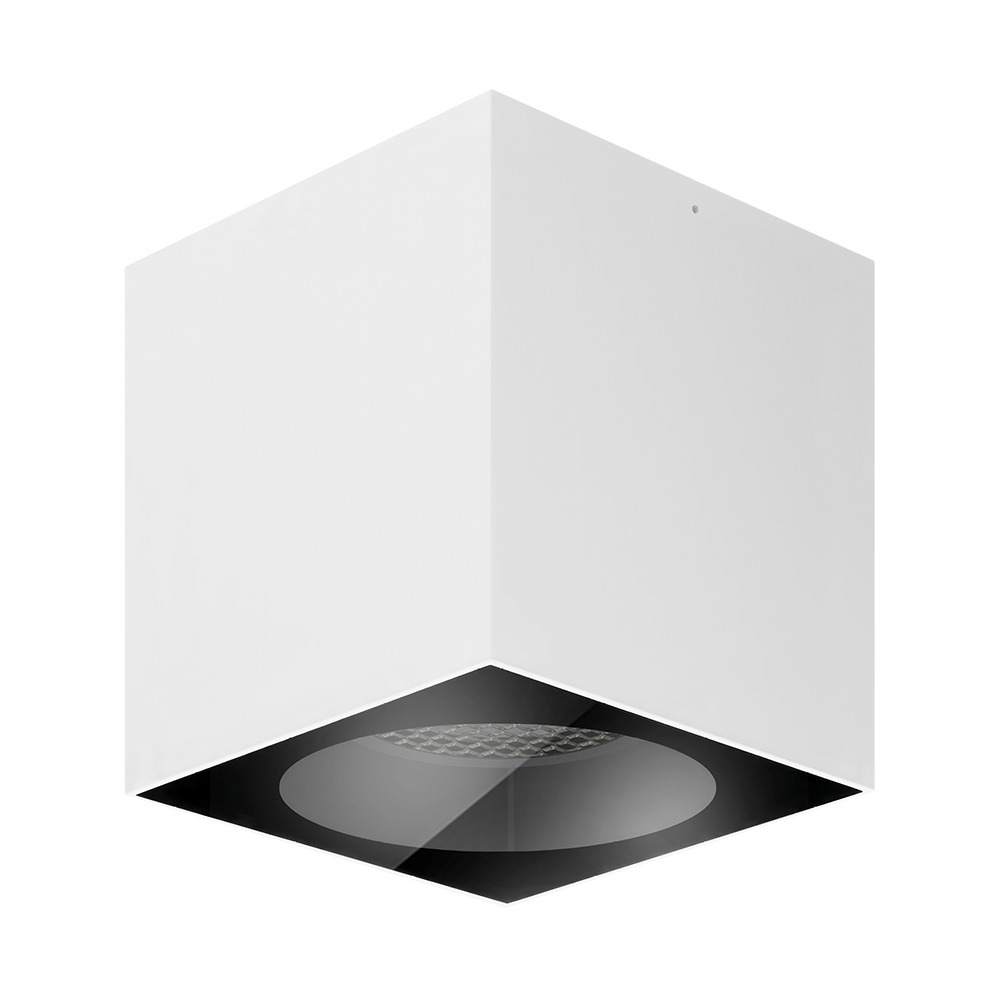

Single emission ceiling downlights for outdoor application. The super warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 3851 lm, with a 154.0 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 3.1 kg.

The total absorbed power is 28 W.

The device features protection class II and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings
