Portik_R

81878W15

Outdoor / Surface Downlights & Pendant luminaires

Ceiling Downlights | 198-264 V

1 arrayLED 25 W DC - 28 W AC

IP
IP65
IK
08
Optic
Spot
Degree
17.8°
CCT
3000 K
CRI
80
Delivered lumens
2414 lm
Finishes
Black
Installation position
Ceiling
Control
Efficiency
86.2 lm/W
Source Type
arrayLED

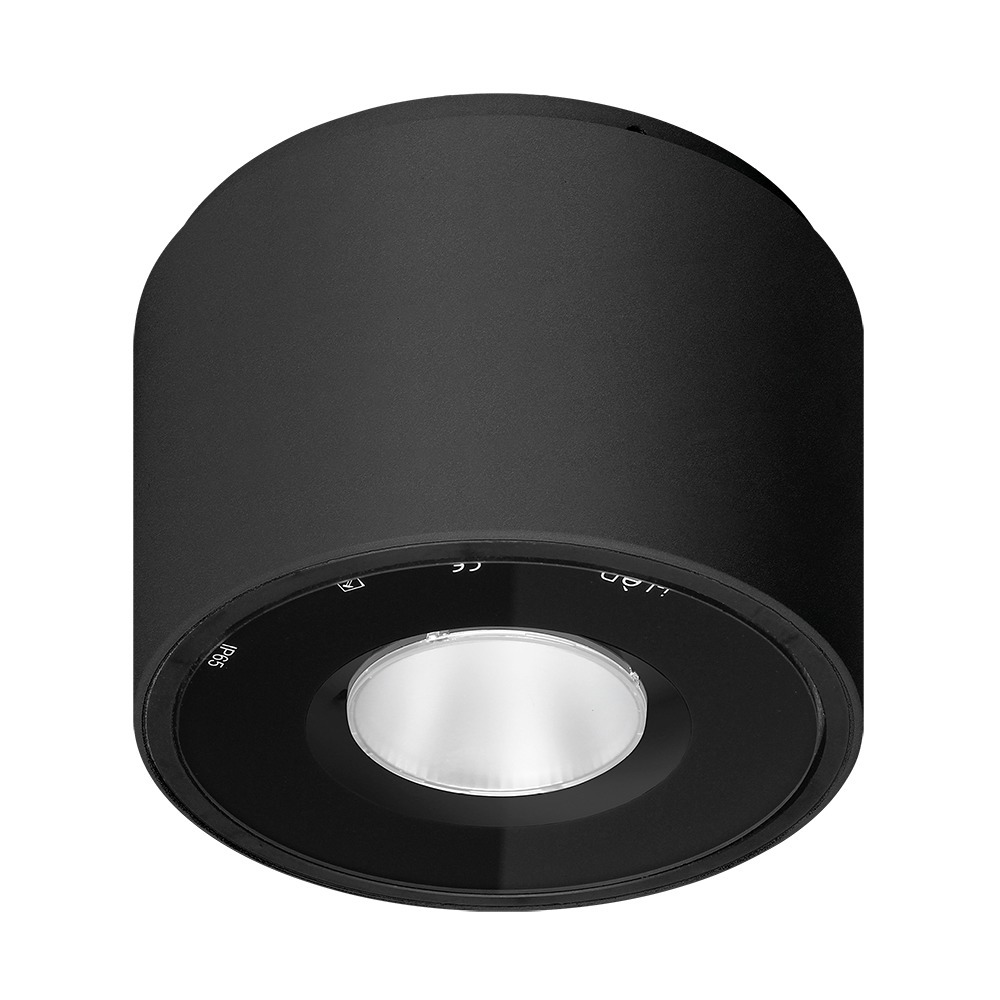

Single emission ceiling downlights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 4011 lm, with a 160.4 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 2.8 kg.

The total absorbed power is 28 W.

The device features protection class I and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code LED-ALI763-SC

Leon - On/Off Driver | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Leon - On/Off Driver |   On/Off Driver 198~264V AC
