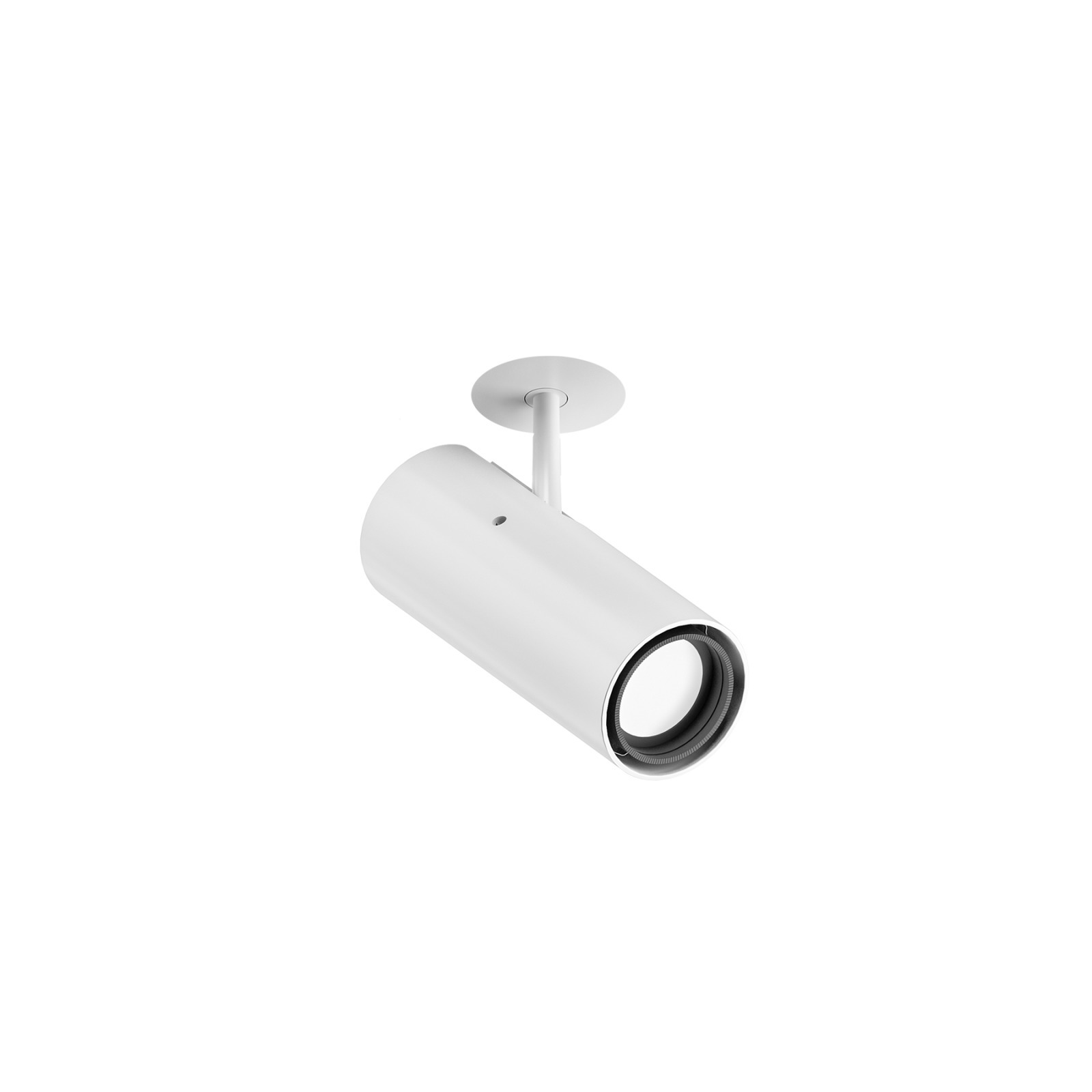

Single emission ceiling downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3725 lm, with a 149.0 lm/W nominal luminous efficacy.The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.560 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 25 W.The device features protection class III and can be ceiling-mounted, with a 57 mm diameter hole (in plasterboard).Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Instruction sheet

Base IESNA 82355W15

Base Eulumdat 82355W15

Product dimensions

Product image

Specification text

Pound_BC

ProductLeaf

Anti-glare

Diffuser

Optics

Leon - On/Off Driver |   On/Off Driver 198~264V AC

Multipower - DALI 2 Push 0/1-10V Multi Current - 4-18W DC powerLEDs - 350mA 53V / 6-26W DC powerLEDs - 500mA 53V / 8-31W DC powerLEDs - 600mA 53V / 15W DC arrayLED - 400mA 37V / 25W DC arrayLED - 700mA 37V / 30W DC arrayLED - 850mA 37V / 35W DC arrayLED - 950mA 37V / 45W DC arrayLED - 1200mA 37V |  1-10V Push and Simply Dim  Controller

Argo_PRO - DALI2 Push and Simply 700mA 15-36V 25W |  Push and Simply Dim  Controller

Pound

82355W15

Ciao, hai ricevuto una richiesta di contatto dal sito Linealight.
Riepiloghiamo qui le informazioni che l'utente ci ha lasciato:

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Country: [[COUNTRY]]
City: [[CITY]]
Profession: [[PROFESSION]]
Company: [[COMPANY]]
Subject: [[SUBJECT]]
Message: [[MESSAGE]]


Sei pregato di ricontattarlo al più presto.

Ciao, hai una nuova iscrizione alla newsletter.
Riepiloghiamo qui i dati che l'utente ci ha lasciato.

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Country: [[COUNTRY]]
Professionist: [[PROFESSIONIST]]

Grazie

Ciao, hai ricevuto una nuova richiesta di garanzia dal sito.
Riepiloghiamo qui di seguito i dati lasciati dall'utente:

Contact Name: [[CONTACT_NAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Company: [[COMPANY]]
Order Number: [[ORDER_NUMBER]]
Project Name: [[PROJECT_NAME]]
Address: [[ADDRESS]]
Installer Company: [[INSTALLER_COMPANY]]
Installer Company Contact: [[INSTALLER_COMPANY_CONTACT]]
Applications: [[APPLICATIONS]]

Grazie

Dear Customer,
we confirm that the completion of the 5-Year Warranty form, on the Linealight website, was successful.
We summarize below the data you provided:

Contact Name: [[CONTACT_NAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Company: [[COMPANY]]
Order Number: [[ORDER_NUMBER]]
Project Name: [[PROJECT_NAME]]
Address: [[ADDRESS]]
Installer Company: [[INSTALLER_COMPANY]]
Installer Company Contact: [[INSTALLER_COMPANY_CONTACT]]
Applications: [[APPLICATIONS]]

Thank you for choosing Linealight Group.

Ciao, hai ricevuto una nuova candidatura dal sito.
Riepiloghiamo i dati che l'utente ci ha lasciato.

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Position: [[POSITION]]
Branch: [[BRANCH]]
CV: [[CV]]
Message: [[MESSAGE]]

Grazie

Your application to Linealight Group has been successfully submitted.
You have applied for:

Position: [[POSITION]]
Branch: [[BRANCH]]

Dear Candidate,
Thank you for your recently submitted application.
We will make sure to contact you in case of future collaboration opportunities.

Best regards,
The HR team at Linea Light Group

Dear Customer, thank you for using our <a title="Modus Configurator" href="[CONFIGURATOR_URL]" target="_blank">Modus Configurator</a>.
Attached you will find the configuration data sheet Ref. [GUID] with its legend. Below are all the technical data sheets of the components used for the configuration:
[PRODUCT_SUMMARY]
You can view and change the configuration at any time at this address:
<a title="View or modify your Modus configuration" href="[CONFIGURATION_URL]" target="_blank">[CONFIGURATION_URL]</a>
 Discover LineaLight's other Configurators by visiting the new<a title="Configurators" href="[CONFIGURATORS_URL]">Configurators </a>section of the site.
Goodbye and thank you
Linea Light S.r.l. Italy Via Della Fornace 59 31023 Castelminio di Resana TV Italy Phone: +39 0423 7868 info@linealight.com
 [THANKS_MESSAGE]

This message was sent through an automated system. Please do not respond to this email directly.

New products and latest trends from lighting.

Subscribe to our newsletter

Fill out the form with the details of your request to receive support from the Customer Care team as soon as possible.

Contact Us

Do you want to discover the news of the Linea Light Group world?

Configure the D-Wave with your preferred sources and download the photometric files related to them.
Within the new D-Wave, you will have the possibility to insert different types of LED strips.

In this section, you will be able to configure your Downlight Evo and download the photometric file with accessory included! Attention, you will find the photometric files of downlights without accessory in the code section

Application

The Client declares to have read and approve the content of the “Warranty declaration” and of this web page.

IP	IP20
Optic	Spot
Degrees	19.6°
CCT	3000 K
CRI	90
Delivered lumens	2594 lm
Finishes	White
Installation position	Ceiling
Control
Efficiency	103.8 lm/W
Source Type	arrayLED

Pound_BC

82355W15

Technical description

Electronics

Leon - On/Off Driver | On/Off Driver 198~264V AC

Argo_PRO - DALI2 Push and Simply 700mA 15-36V 25W | Push and Simply Dim Controller

Downloads

Family	On/Off Driver
IP	IP40
Operation	CC

Family	Controller
IP	IP20
Operation	CC

Family	Controller
IP	IP40
Operation	CC
