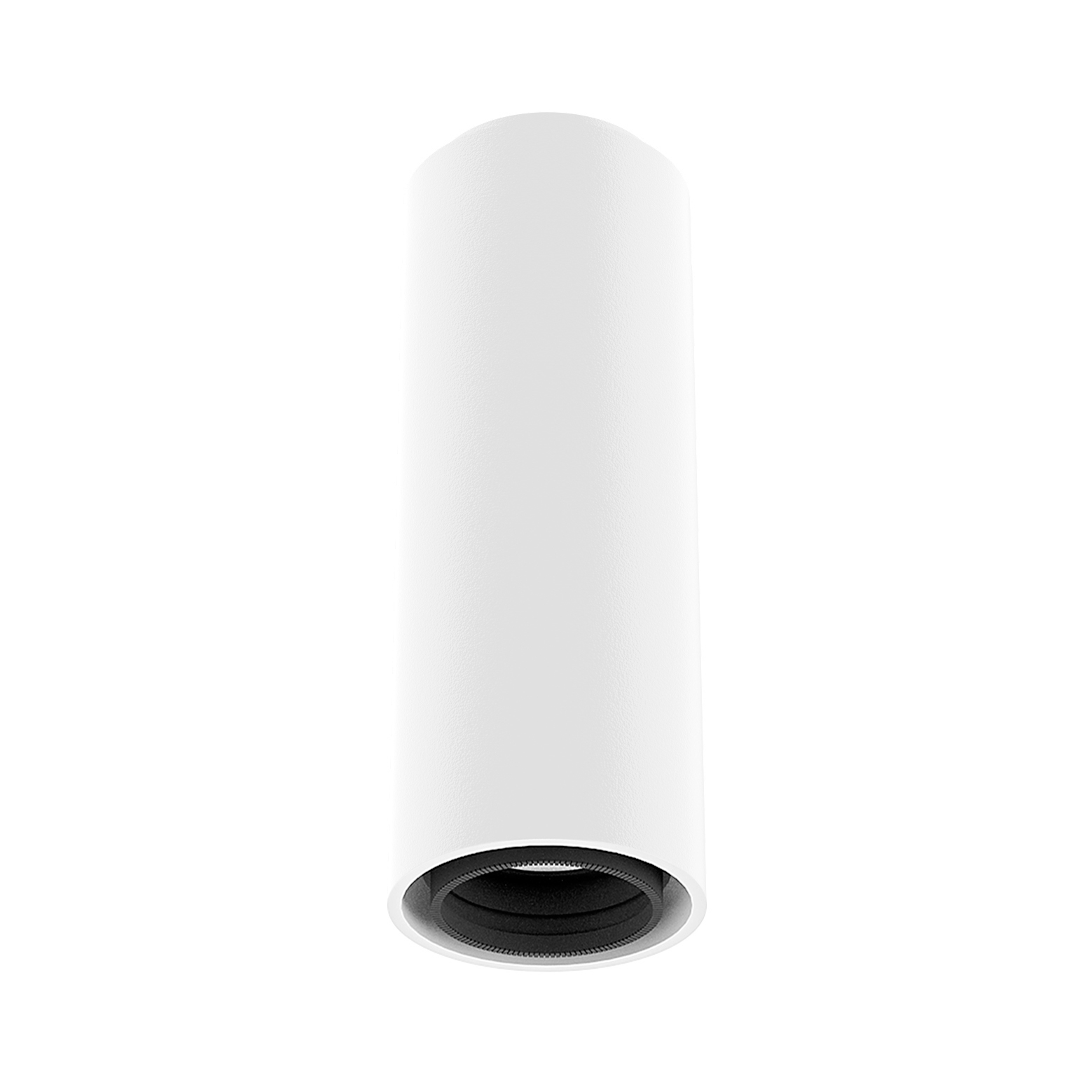

Single emission ceiling downlights for indoor application. The super warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 715 lm, with a 110.0 lm/W nominal luminous efficacy.The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.3 kg.The total absorbed power is 8.5 W.The device features protection class II and can be ceiling-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Instruction sheet

Base Eulumdat 82003M60

Base IESNA 82003M60

Product dimensions

Product image

Specification text

Pound_S

ProductLeaf

Cylindrical screen 45 degree  - Anti-glare accessory

Anti-glare

Optic - Wide Flood for Pound_S 6,5W / Pound_Wall 6,5W / Pound_T 13W / Pound_BC 13W / Pound_BS 13W

Optics

Diffuser

Cylindrical screen  - Anti-glare accessory

Optic - Flood for Pound_T 13W / Pound_BC 13W / Pound_BS 13W / Pound_S 6,5W / Pound_Wall 6,5W

Optic - Spot for Pound_S 6,5W / Pound_Wall 6,5W / Pound_T 13W / Pound_BC 13W / Pound_BS 13W

Pound

82003M60
