Pound_T
81640M60
Indoor / Projectors
Projectors | 176-264 V
1 arrayLED 34 W DC - 39 W AC










IP | IP20 |
---|---|
Optic | Wide Flood |
Degrees | 47° |
CCT | 2700 K |
CRI | 98 |
Delivered lumens | 3232 lm |
Finishes | Black |
Installation position | Ceiling |
Control | |
Efficiency | 82.9 lm/W |
Source Type | arrayLED |
Technical description

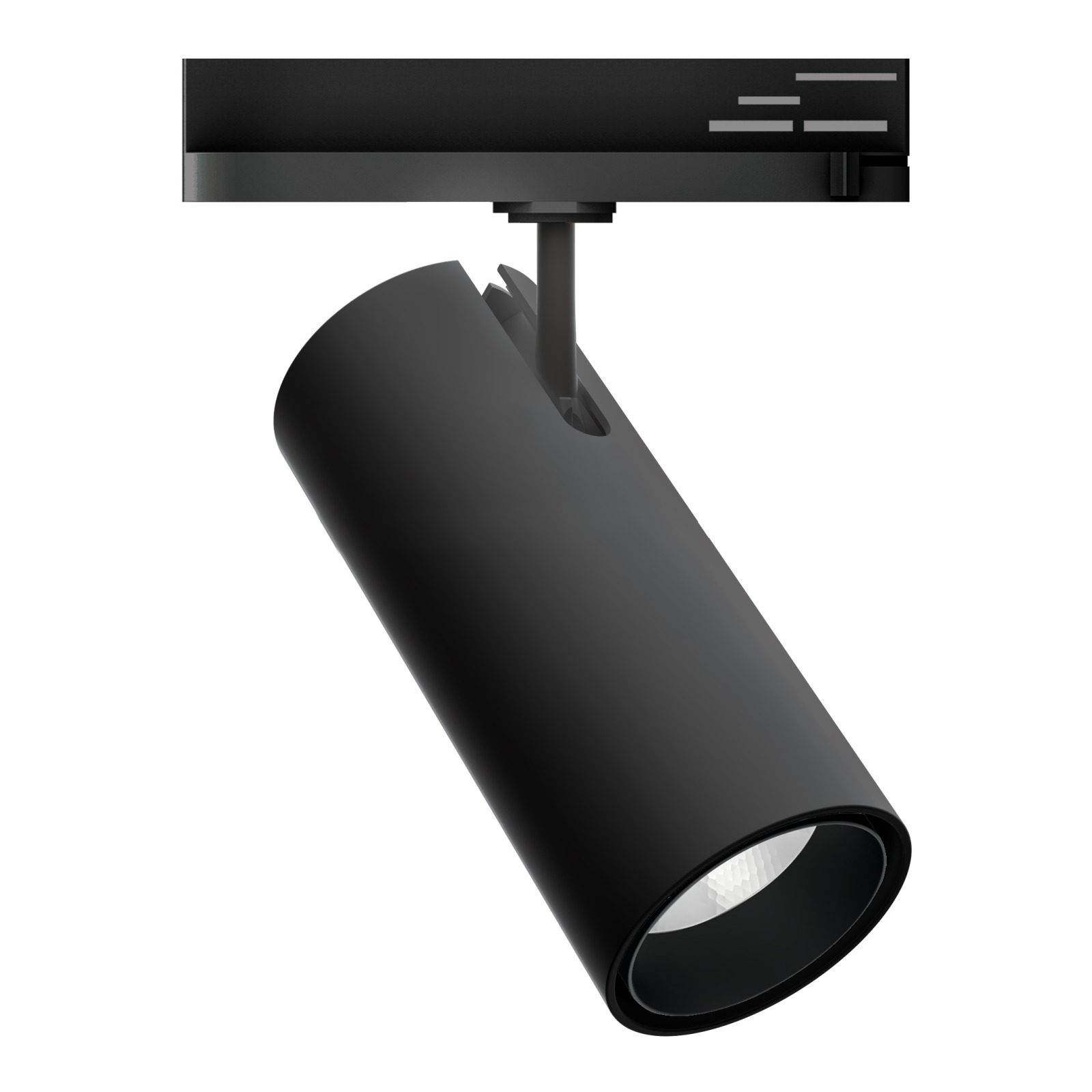

Single emission projectors for indoor application. The super warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 98; the source luminous flux is 4460 lm, with a 131.2 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.92 kg.
The total absorbed power is 39 W.
The device features protection class II and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
