Pound_T

81954W08

Indoor / Projectors

Projectors | 176-264 V

1 x powerLED 7.2 W DC - 9 W AC

IP
IP20
Optic
Narrow Spot
Degrees
7.8°
CCT
3000 K
CRI
90
Delivered lumens
279 lm
Finishes
White
Installation position
Ceiling
Control
DALI-2
Efficiency
31.0 lm/W
Source Type
powerLED

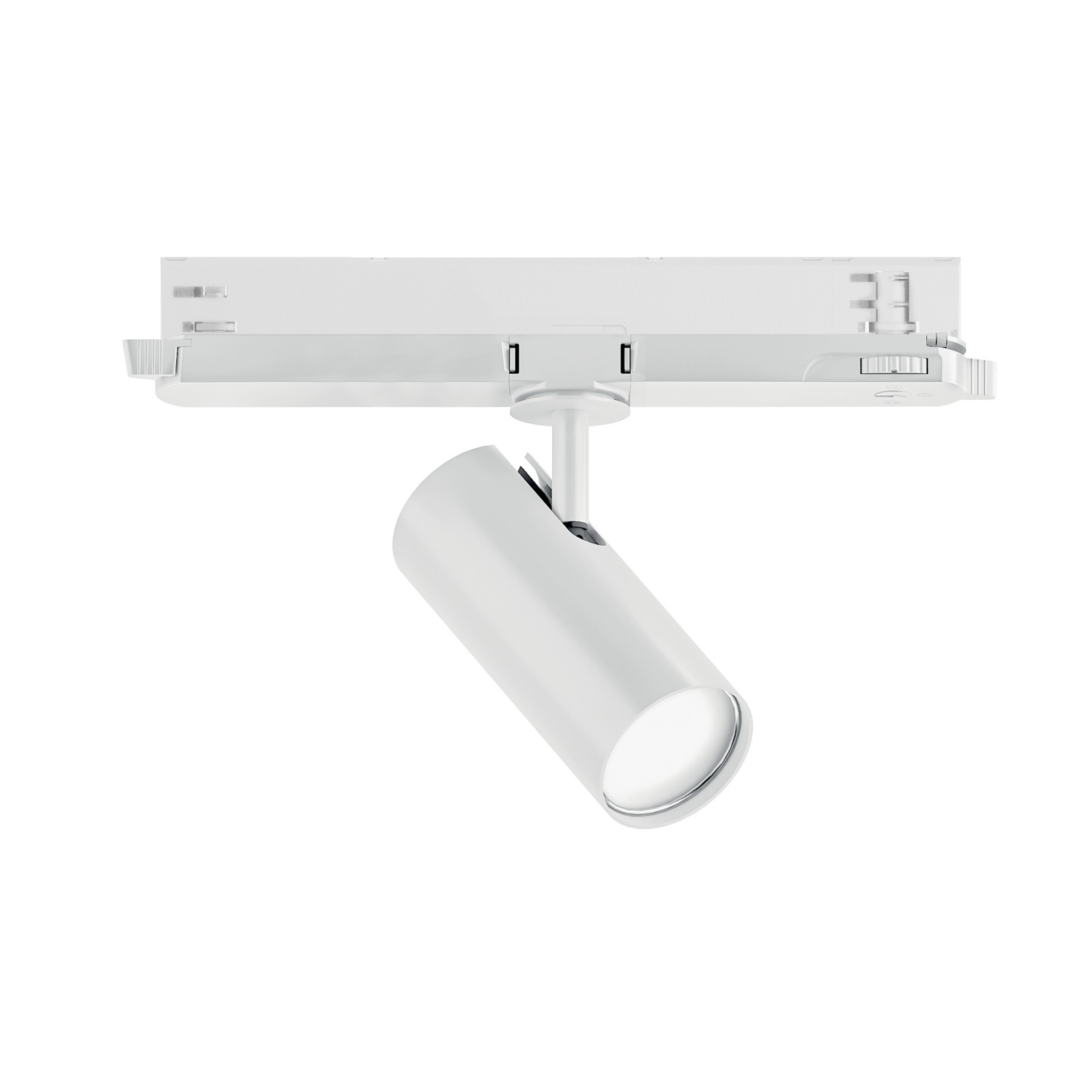

Single emission projectors for indoor application. The warm white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 657 lm, with a 91.3 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.383 kg.

The total absorbed power is 9 W.

The device features protection class II and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

TM66

Accessories
