Pound_T
84165D60
Indoor / Projectors
Projectors | 176-264 V
9 x powerLEDs 8 W DC - 9 W AC
| IP | IP20 |
|---|---|
| Optic | Wide Flood |
| CCT | From 2700 to 5700 K |
| CRI | 90 |
| Delivered lumens | -- |
| Finishes | White |
| Installation position | Ceiling |
| Control | DALI-2 |
| Source Type | powerLEDs |
Technical description

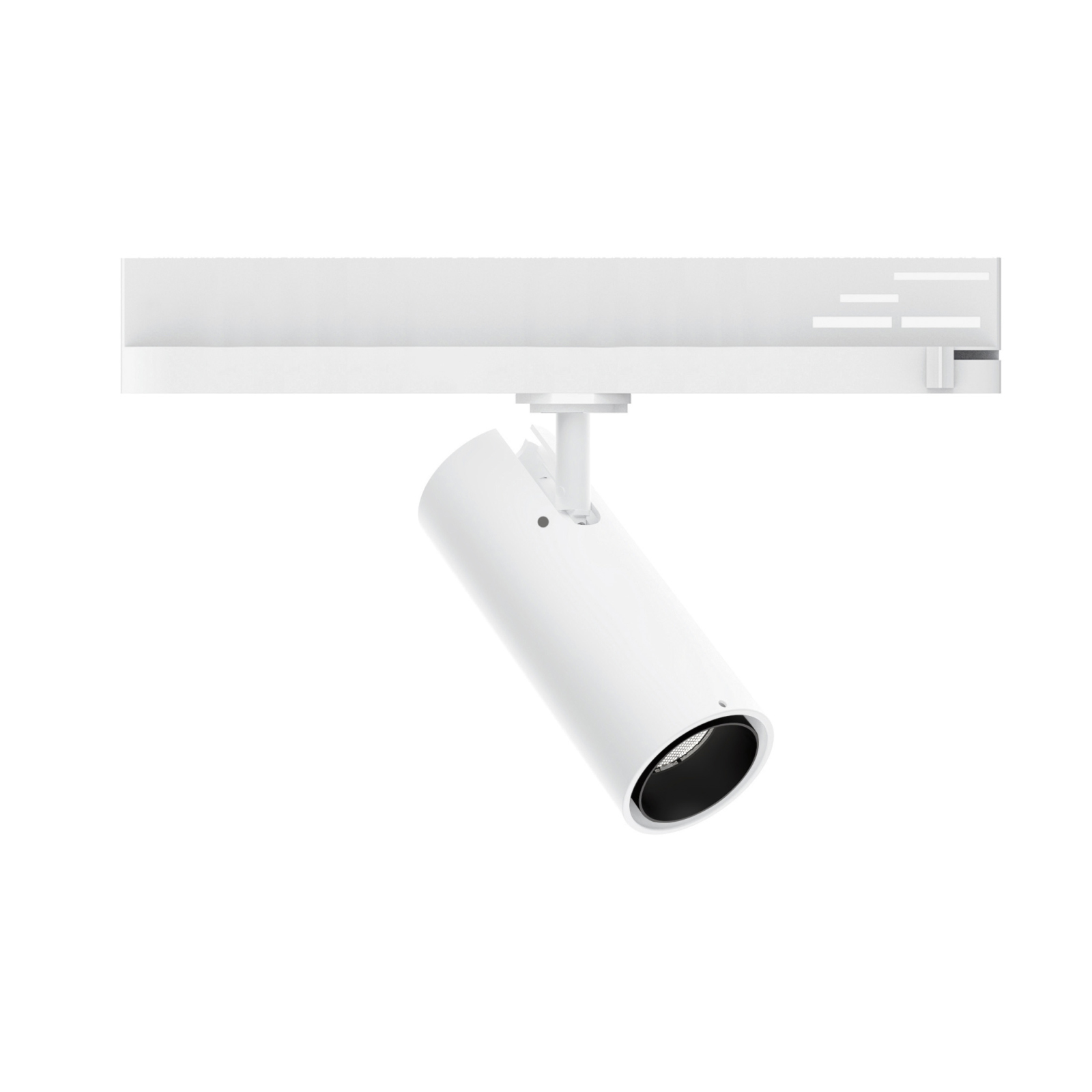

Single emission projectors for indoor application. The dynamic white LED light source with a wide flood light distribution is composed of 9 powerleds LEDs with CCT of From 2700 to 5700 K and a CRI 90.
The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg.
The total absorbed power is 9 W.
The device features protection class II and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
2D/3D Drawings
TM66
