Prolamp

84441C12

Outdoor / Projectors

Projectors | 100-305 V AC /142-431 V DC

2 arrayLED 90 W DC - 100 W AC

IP
IP66
IK
08
Optic
Extra Wide Flood
Degrees
94.6°
CCT
5000 K
CRI
80
Delivered lumens
11680 lm
Finishes
Black
Installation position
Wall lights, Ceiling, Floor
Control
DALI
Efficiency
116.8 lm/W
Source Type
arrayLED

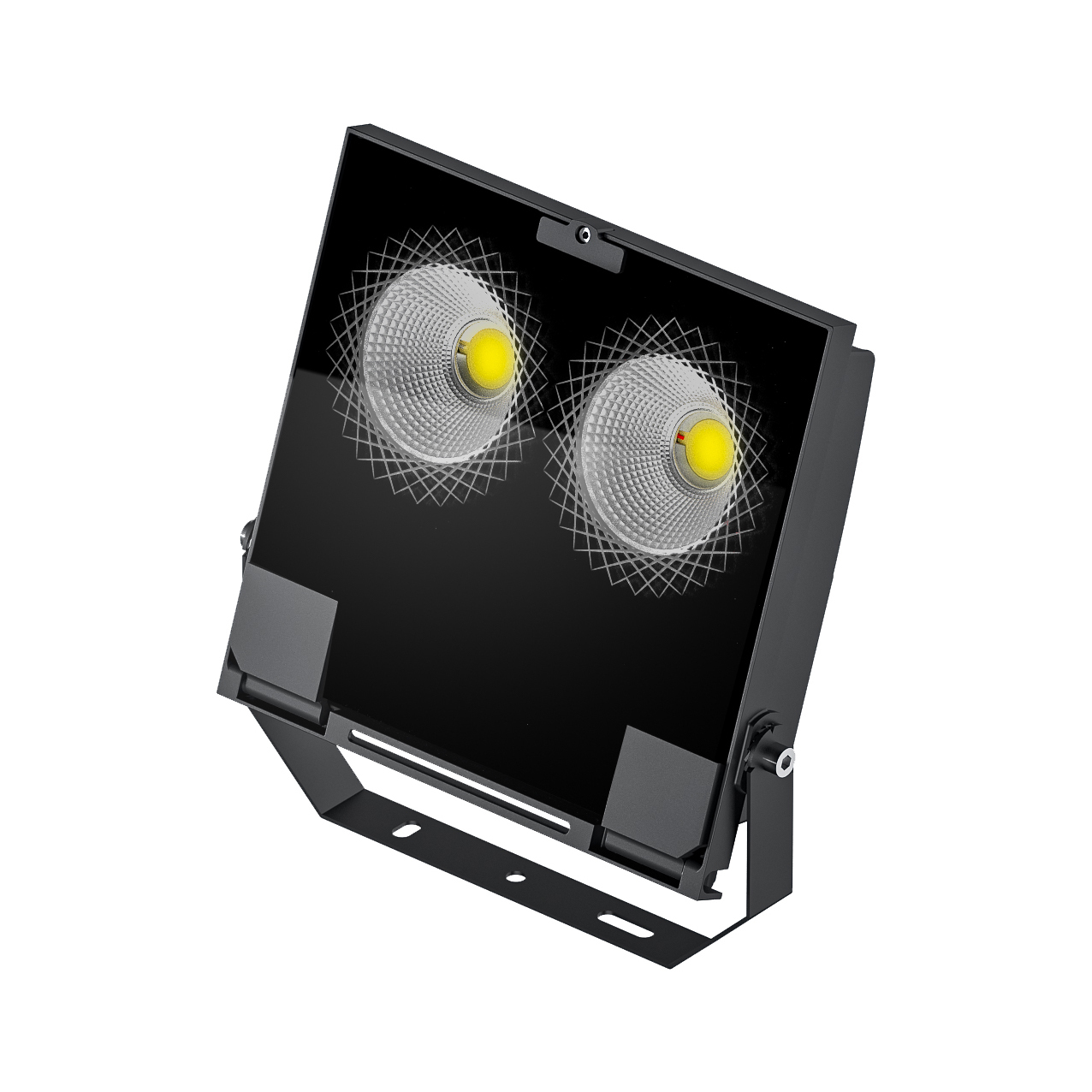

Single emission projectors for outdoor application. The cold white LED light source with a extra wide flood light distribution is composed of 2 arrayled LEDs with CCT of 5000 K and a CRI 80; the source luminous flux is 15322 lm, with a 170.2 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 3.8 kg.

The total absorbed power is 100 W.

The device features protection class I and can be wall lights, ceiling or floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
