Quara_Q

83584W70

New

Outdoor / Step lights

198-264 V AC /186-275 V DC

1 x powerLED 2 W DC - 2.7 W AC

IP
IP65
Optic
Asymmetric Wallwasher
Degrees
62.4°
CCT
3000 K
CRI
80
Delivered lumens
116 lm
Finishes
Grey
Installation position
Wall lights
Control
Efficiency
43.0 lm/W
Source Type
powerLED

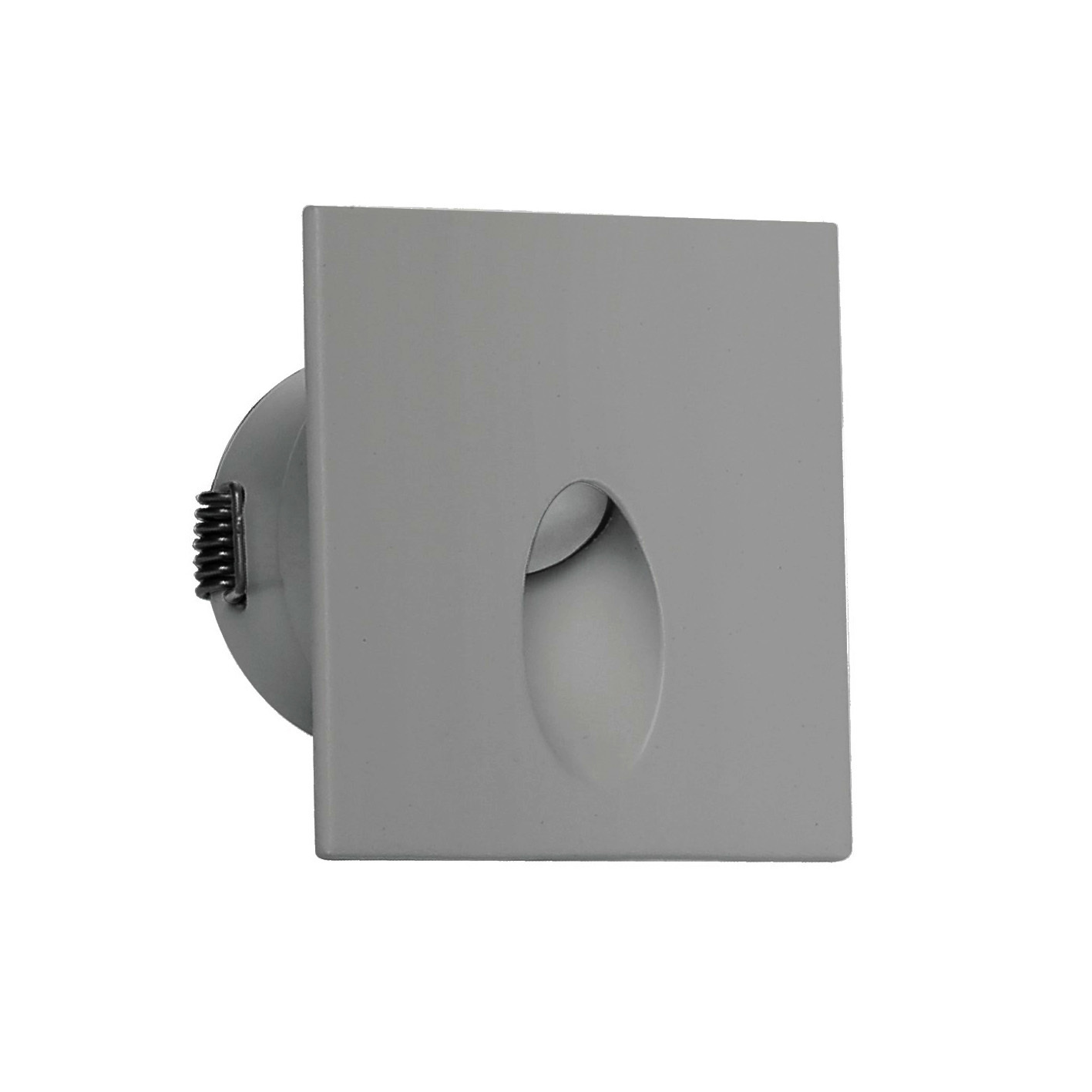

Single emission for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 249 lm, with a 124.5 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a grey finish, processed by means of coating. The ingress protection degree is IP65; the total weight is of 0.2 kg.

The total absorbed power is 2.7 W. The power supply cable is included and features a 1 m length.

The device features protection class II and can be wall lights-mounted, with a 52 mm diameter hole (in plasterboard) with an outer casing, code 84338(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
