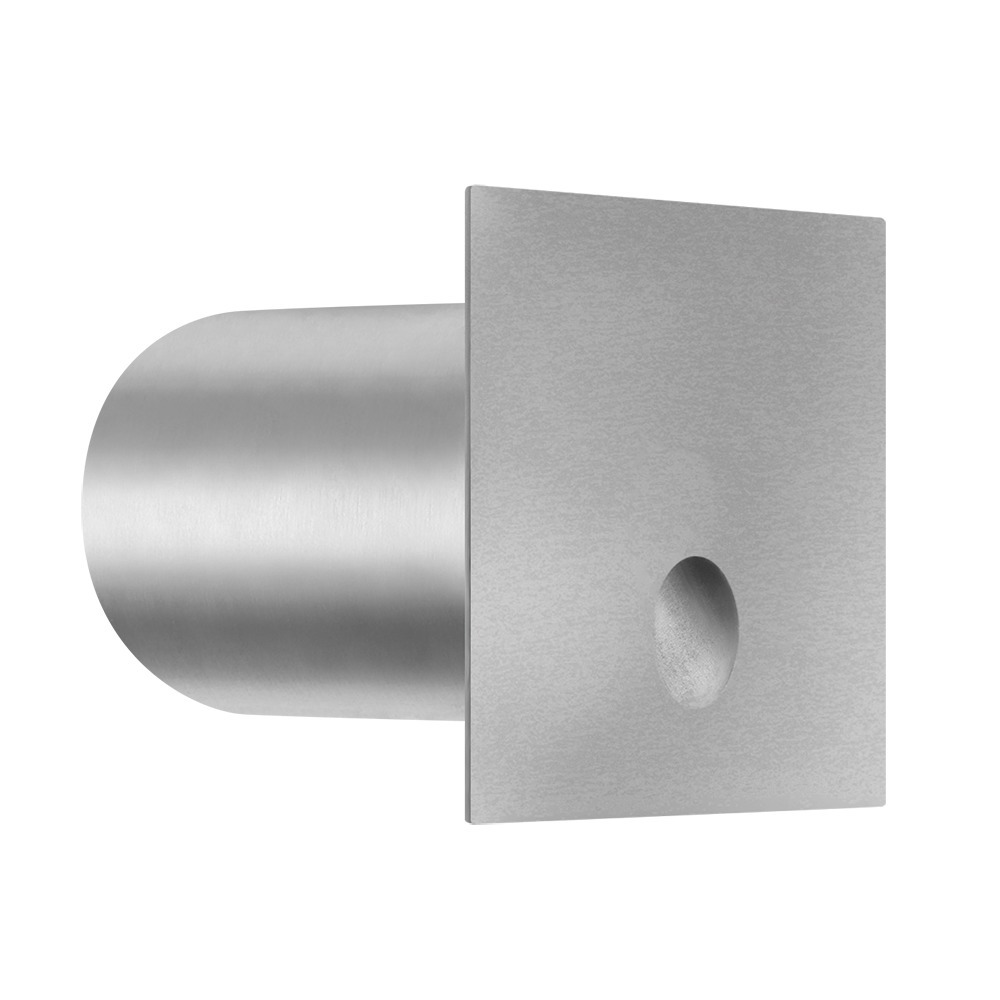

Quara_Q
C00237ISWWW
Indoor / Wall Mounted Lights, Step lights
Wall Lights
1 x powerLED 1 W DC 350 mA
| IP | IP65 |
|---|---|
| Optic | Asymmetric Wallwasher |
| Degrees | 62.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 10 lm |
| Finishes | Stainless Steel |
| Installation position | Wall lights |
| Control | |
| Source Type | powerLED |
Technical description
Single emission wall lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 106 lm, with a 106.0 lm/W nominal luminous efficacy.
The device body is made of aisi 316l steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP65; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 1 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights-mounted, with a 20 mm diameter hole (in plasterboard) with an outer casing, code 98950(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 89421
Mini_Aqualed - On/Off Driver - 350mA 6.5W 9-18V | On/Off Driver 198~264V AC / 176~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
Code 89419
Mini_Aqualed - On/Off Driver - 350mA 2.5W 3-7V | On/Off Driver 198~264V AC / 176~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
Code C-E200006
Aqualed_Slim - On/Off Driver - 12.5W DC 350mA 17-36V | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
You've seen 3 products out of 3
Downloads
Documentation
Photometric data
2D/3D Drawings
Accessories
