Quara_QI

92239M70

Outdoor / Wall lighting

Wall Lights | 198-264 V AC /180-275 V DC

2 x powerLED 4 W DC - 4.8 W AC

IP
IP65
IK
08
Optic
Asymmetric Wallwasher
Degrees
75°
CCT
2700 K
CRI
80
Delivered lumens
247 lm
Finishes
Grey
Installation position
Wall lights
Control
Efficiency
51.5 lm/W
Source Type
powerLED

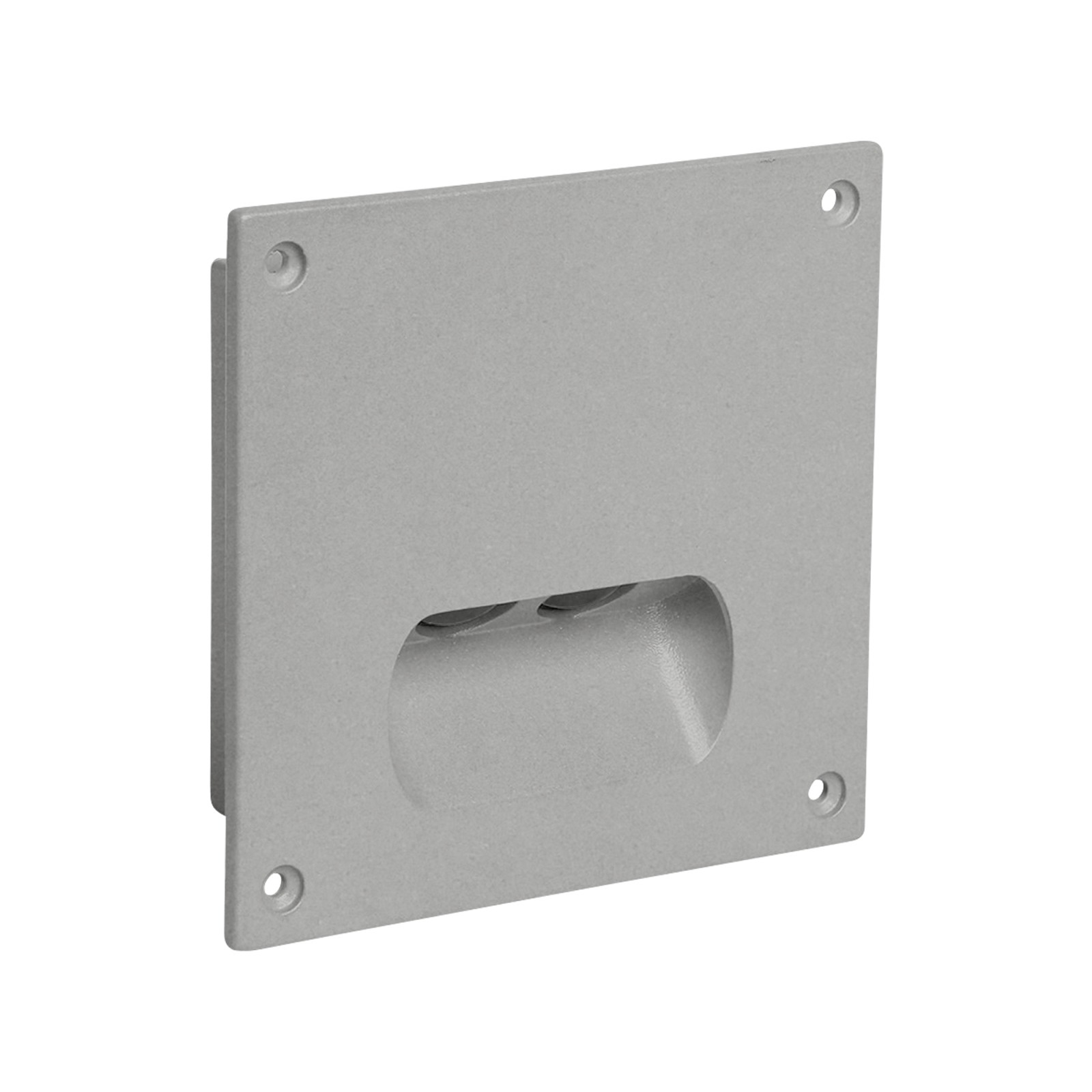

Single emission wall lights for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 2 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 438 lm, with a 109.5 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a grey finish, processed by means of open pore anodizing + powder coating. The ingress protection degree is IP65; the total weight is of 0.41 kg.

The total absorbed power is 4.8 W. The power supply cable is included and features a 1 m length.

The device features protection class I and can be wall lights-mounted with an outer casing, code 98050(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
