Quara_QI

92240N70

Outdoor / Wall lighting

Wall Lights | 198-264 V AC /180-275 V DC

2 x powerLED 4 W DC - 4.8 W AC

IP
IP65
IK
08
Optic
Asymmetric Wallwasher
Degrees
75°
CCT
4000 K
CRI
80
Delivered lumens
164 lm
Finishes
Dark brown
Installation position
Wall lights
Control
Source Type
powerLED

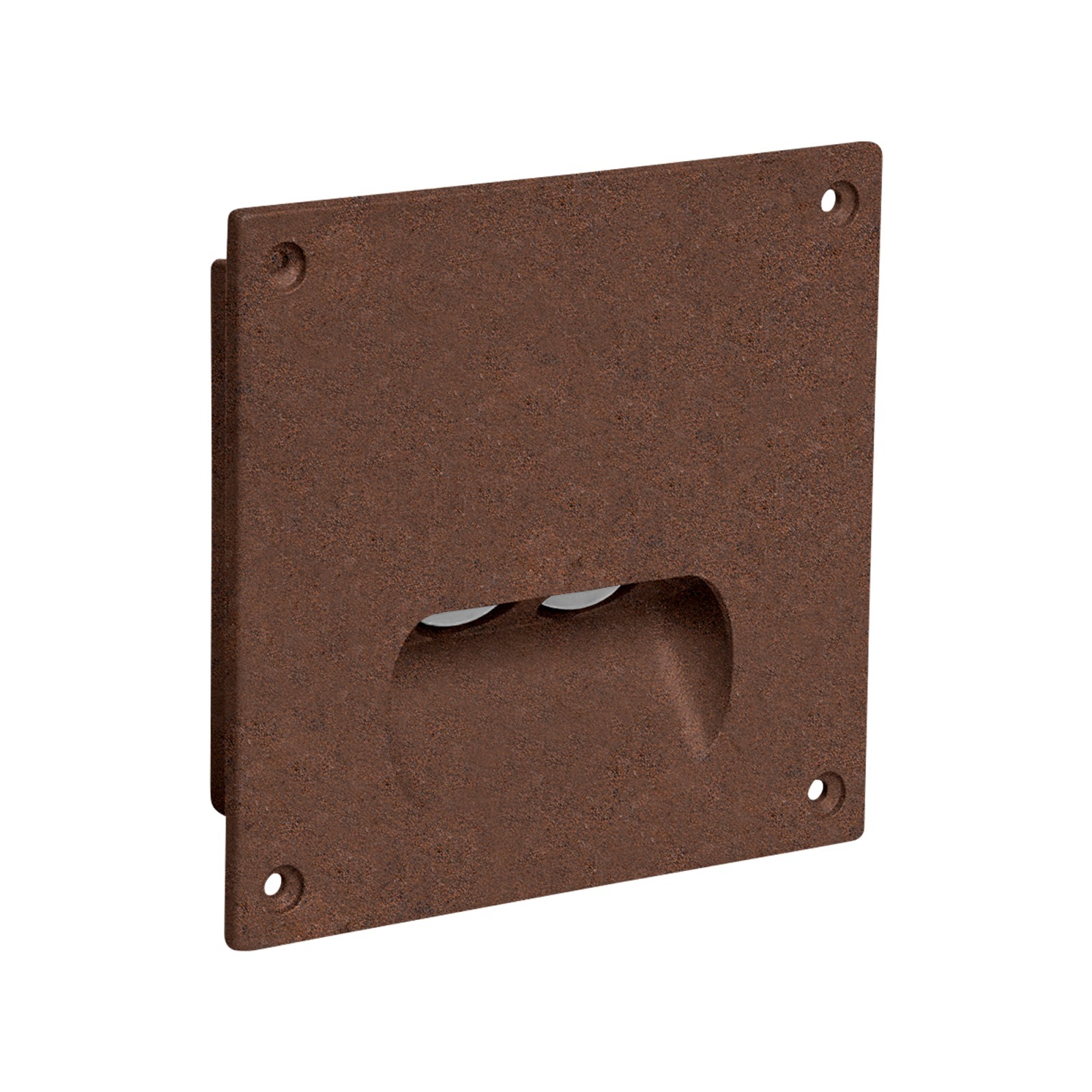

Single emission wall lights for outdoor application. The natural white LED light source with a asymmetric wallwasher light distribution is composed of 2 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 498 lm, with a 124.5 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a dark brown finish, processed by means of open pore anodizing + powder coating. The ingress protection degree is IP65; the total weight is of 0.41 kg.

The total absorbed power is 4.8 W. The power supply cable is included and features a 1 m length.

The device features protection class I and can be wall lights-mounted with an outer casing, code 98050(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
