Quara_R
84076M07
Outdoor / Wall lighting, Step lights
Wall Lights
1 x powerLED 1.5 W DC 24 V
| IP | IP66 |
|---|---|
| IK | 05 |
| Optic | Asymmetric Wallwasher |
| Degrees | 154.4° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 7 lm |
| Finishes | Dark brown |
| Installation position | Floor |
| Control | |
| Efficiency | 4.7 lm/W |
| Source Type | powerLED |
Technical description

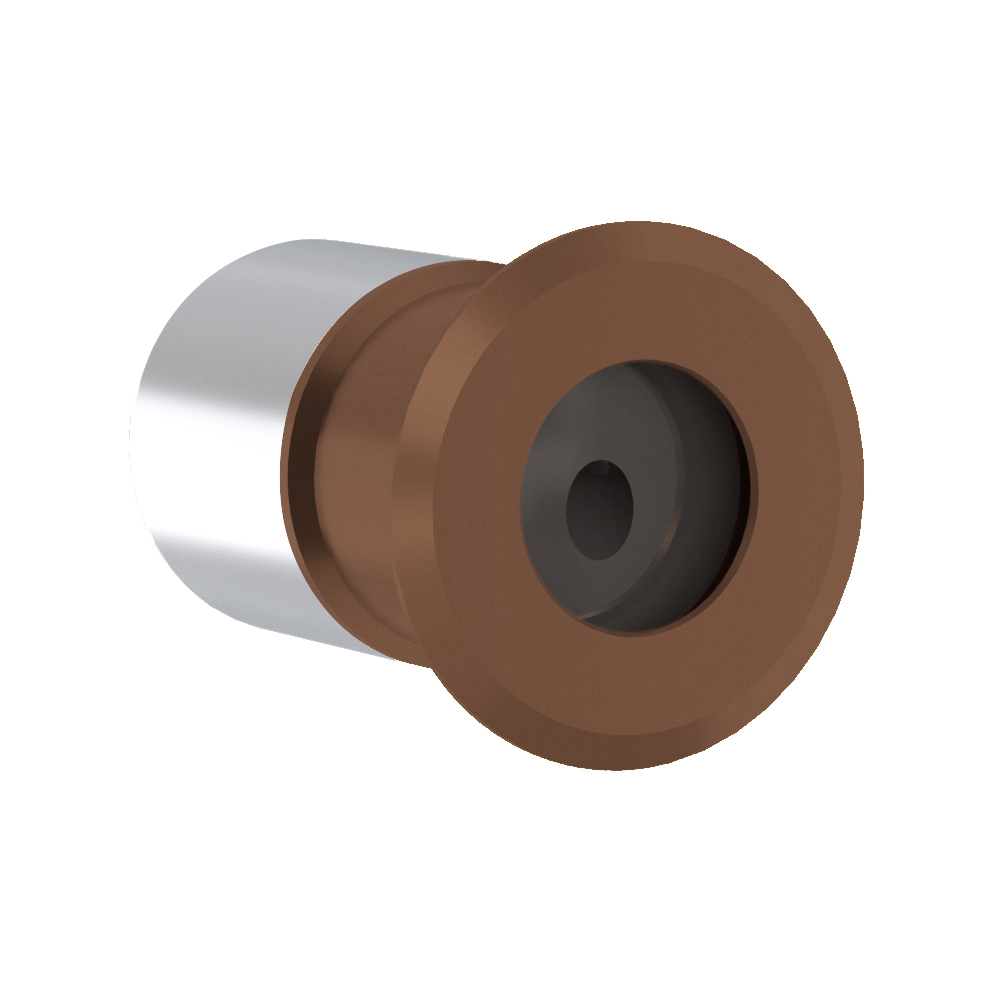

Single emission wall lights for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 188 lm, with a 125.3 lm/W nominal luminous efficacy.
The device body is made of ot58 brass and features a dark brown finish, processed by means of powder coating. The ingress protection degree is IP66; the total weight is of 0.174 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 1.5 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be floor-mounted with an outer casing, code 84918(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 89179
Maxi_Aqualed - On/Off Driver 24V 24W | On/Off Driver 198~264V AC 24 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 89359
Giant_Aqualed - On/Off Driver 1-48 W DC stripLED 2 A 24 V / 1-48 W DC topLED | On/Off Driver 198~264V AC / 180~275V DC 48 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 89488
Aqualed - On/Off Driver 1-14.4 W DC stripLED 600mA 24V / 1-14.4 W DC topLED | On/Off Driver 190~250V AC / 180~275V DC 15 W
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
You've seen 3 products out of 3
