Quara_R
87988M70
Outdoor / Wall lighting, Step lights
Wall Lights
1 x powerLED 2 W DC 630 mA
| IP | IP65 |
|---|---|
| IK | 10 |
| Optic | Asymmetric Wallwasher |
| Degrees | 53.4° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 64 lm |
| Finishes | Dark brown |
| Installation position | Wall lights |
| Control | |
| Source Type | powerLED |
Technical description

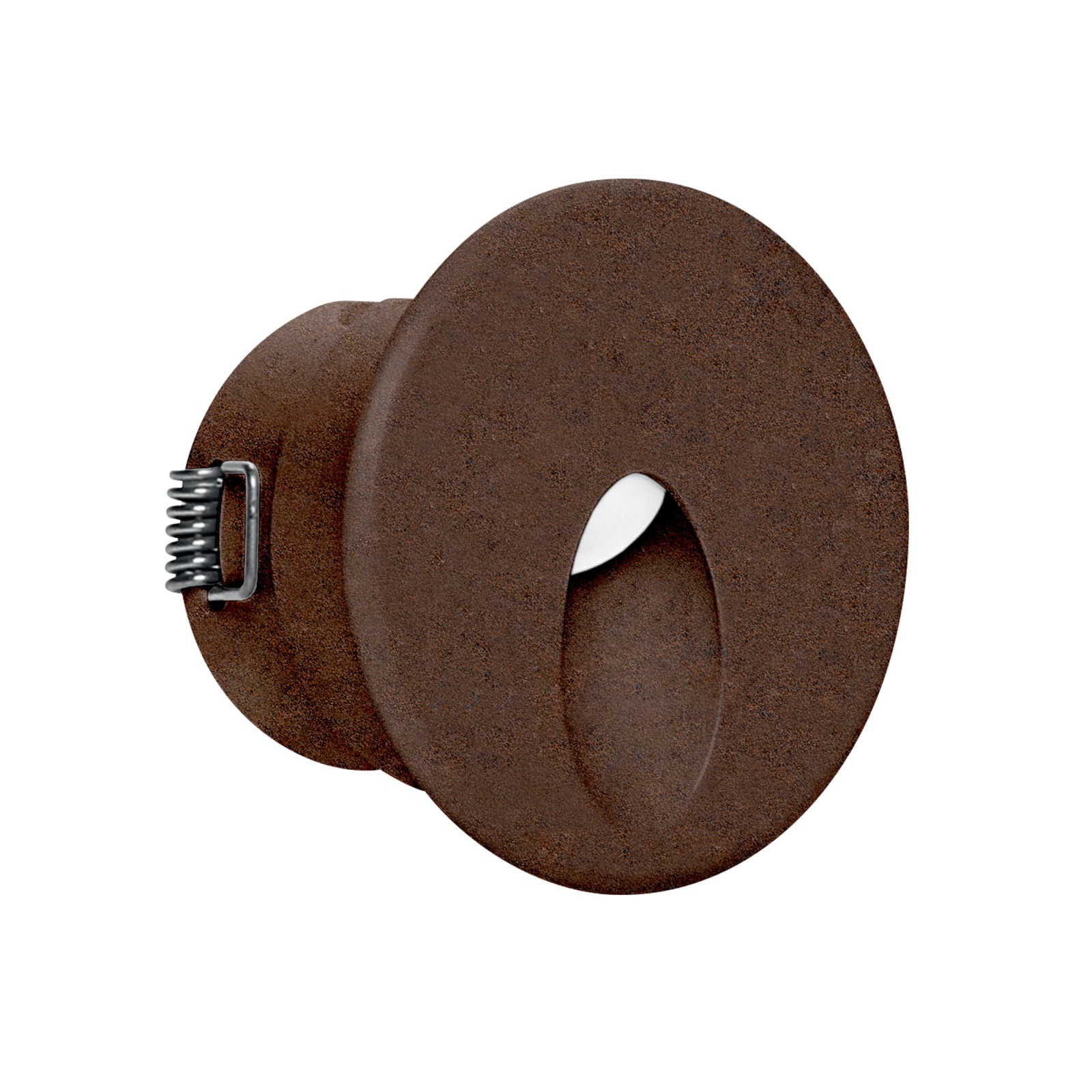

Single emission wall lights for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 233 lm, with a 116.5 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a dark brown finish, processed by means of open pore anodizing + powder coating. The ingress protection degree is IP65; the total weight is of 0.13 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 2 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights-mounted, with a 52 mm diameter hole (in plasterboard) with an outer casing, code 84338(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99186
Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 630mA 39V / 12-24 W DC powerLEDs | On/Off Driver 198~264V AC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
Code 89420
Mini_Aqualed - On/Off Driver - 500mA 4.5W 3-7V | On/Off Driver 198~264V AC / 176~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
Code C-E200008
Aqualed_Slim - On/Off Driver - 12W DC 630mA 9-20V | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
