Raptor
77094N88
Indoor / Pendant Lights, Industrial lighting
Pendant Luminaires | 198-264 V AC /180-275 V DC
3 arrayLED 138 W DC - 150 W AC












IP | IP65 |
---|---|
IK | 10 |
Optic | Ellittico |
Degrees | 59.4° |
CCT | 4000 K |
CRI | 80 |
Delivered lumens | 16601 lm |
Installation position | Ceiling |
Control | DALI |
Efficiency | 110.7 lm/W |
Source Type | arrayLED |
Technical description

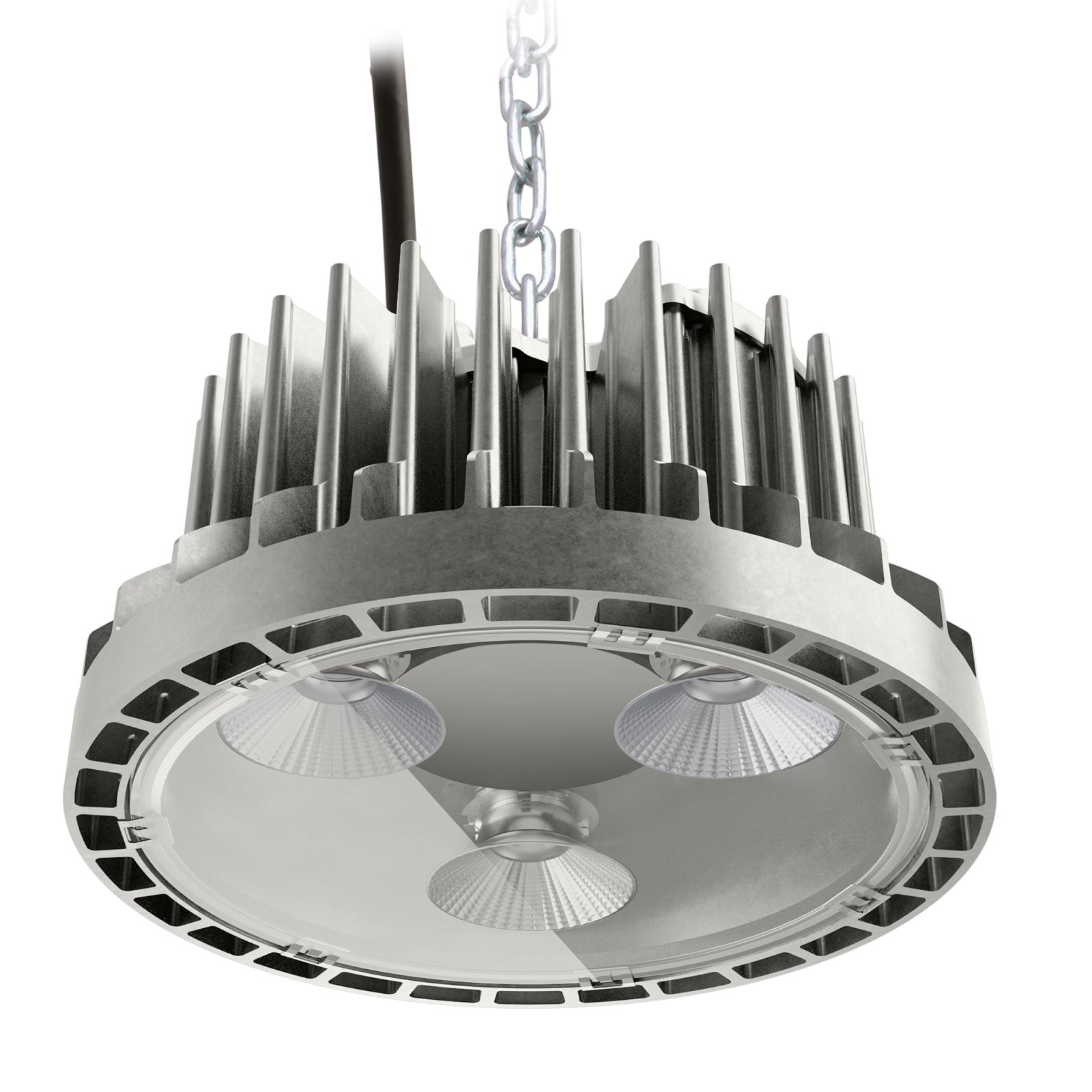

Single emission pendant luminaires for indoor application. The natural white LED light source with a elliptic light distribution is composed of 3 arrayled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 21687 lm, with a 157.2 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium and features a aluminium finish, processed by means of sandblasting; the diffuser is made of glass. The ingress protection degree is IP65; the total weight is of 9 kg.
The total absorbed power is 150 W.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
