Raptor

77095C12

New

Indoor / Pendant Lights, Industrial lighting

Pendant Luminaires | 198-264 V AC /180-275 V DC

3 arrayLED 138 W DC - 150 W AC

IP
IP65
IK
10
Optic
Extra Wide Flood
Degrees
108.2°
CCT
5000 K
CRI
80
Delivered lumens
17793 lm
Installation position
Ceiling
Control
Efficiency
118.6 lm/W
Source Type
arrayLED

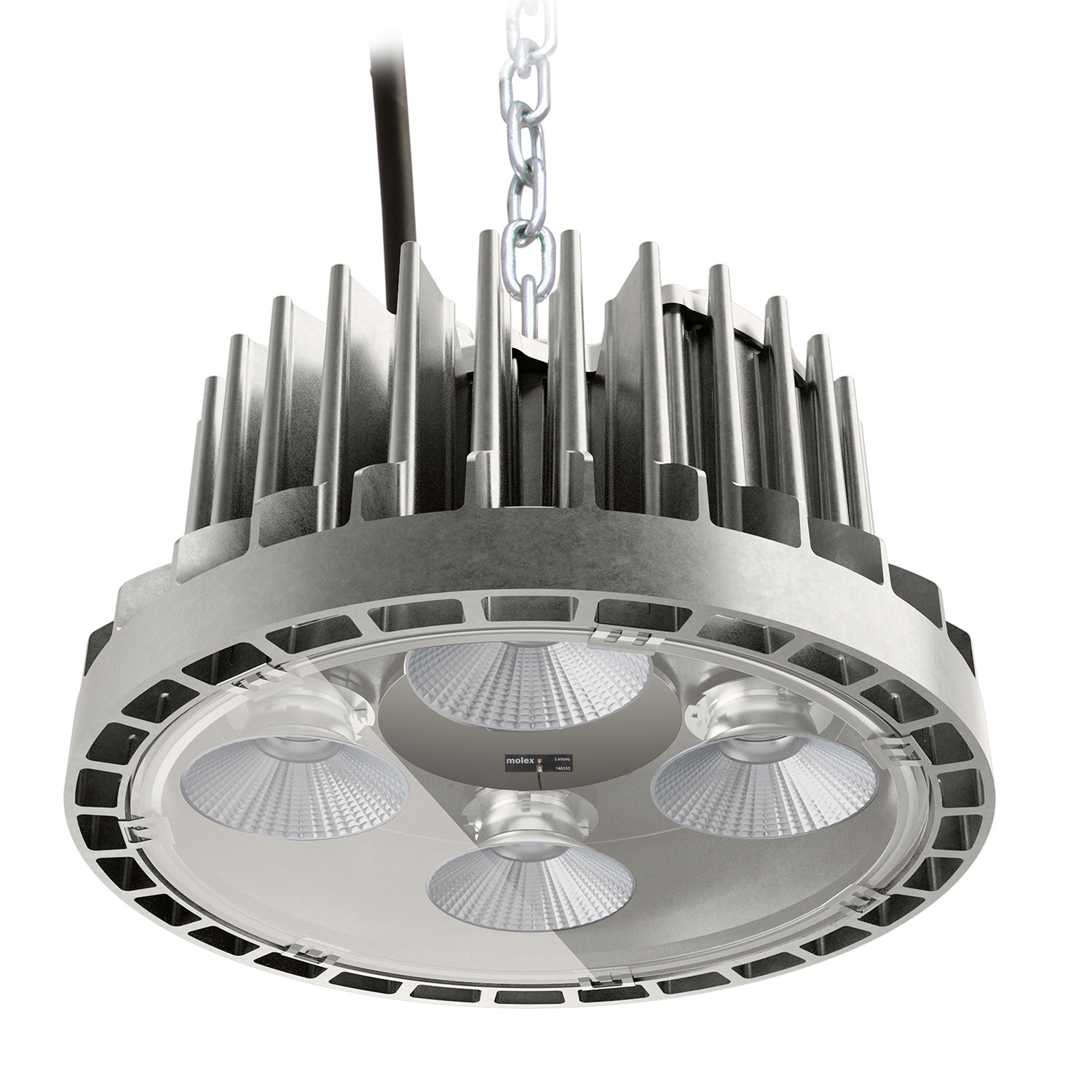

Single emission pendant luminaires for indoor application. The cold white LED light source with a extra wide flood light distribution is composed of 3 arrayled LEDs with CCT of 5000 K and a CRI 80; the source luminous flux is 21933 lm, with a 158.9 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium and features a aluminium finish, processed by means of sandblasting; the diffuser is made of glass. The ingress protection degree is IP65; the total weight is of 9 kg.

The total absorbed power is 150 W.

The device features protection class I and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
