Raptor

77097C88

New

Indoor / Pendant Lights, Industrial lighting

Pendant Luminaires | 198-264 V AC /180-275 V DC

4 arrayLED 165 W DC - 180 W AC

IP
IP65
IK
10
Optic
Ellittico
Degrees
59.4°
CCT
5000 K
CRI
80
Delivered lumens
19661 lm
Installation position
Ceiling
Control
DALI
Efficiency
109.2 lm/W
Source Type
arrayLED

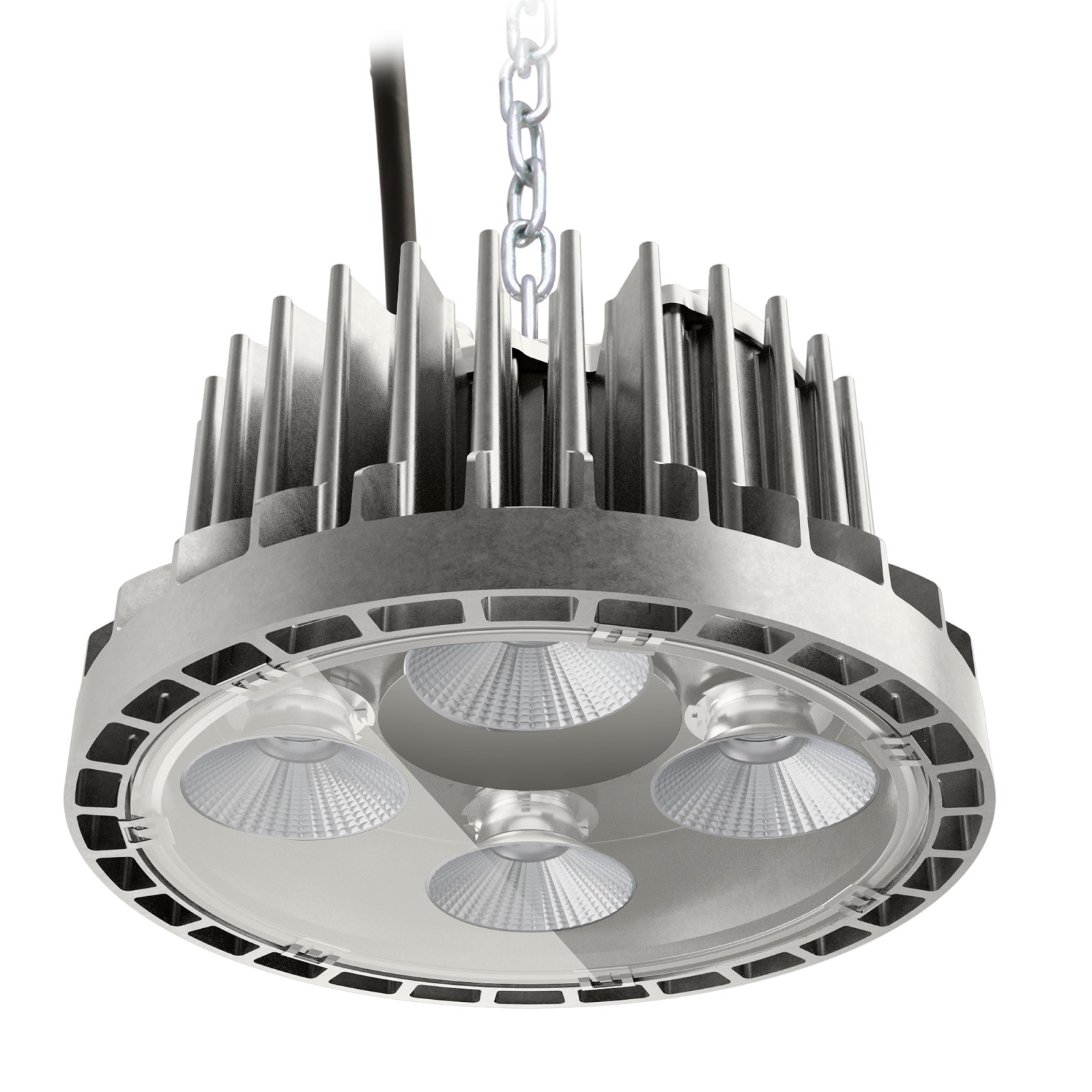

Single emission pendant luminaires for indoor application. The cold white LED light source with a elliptic light distribution is composed of 4 arrayled LEDs with CCT of 5000 K and a CRI 80; the source luminous flux is 26997 lm, with a 163.6 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium and features a aluminium finish, processed by means of sandblasting; the diffuser is made of glass. The ingress protection degree is IP65; the total weight is of 9 kg.

The total absorbed power is 180 W.

The device features protection class I and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
